Automatic feeding machine

  • Heavy duty wire Spool prefeeder Machine 60kg
  • Heavy duty wire Spool prefeeder Machine 60kg
  • Heavy duty wire Spool prefeeder Machine 60kg
Heavy duty wire Spool prefeeder Machine 60kgHeavy duty wire Spool prefeeder Machine 60kgHeavy duty wire Spool prefeeder Machine 60kg

Heavy duty wire Spool prefeeder Machine 60kg

  • SA-F300

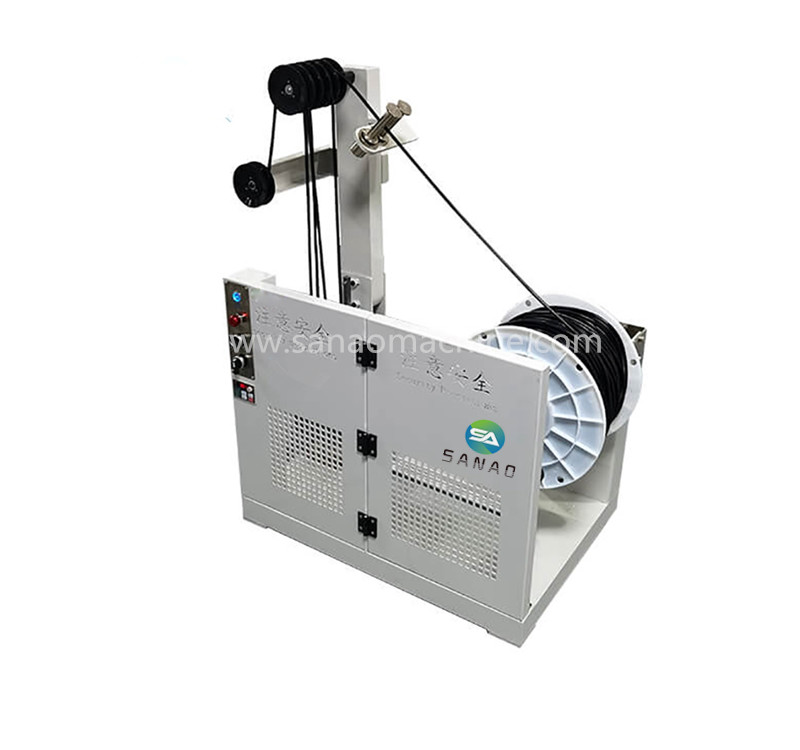

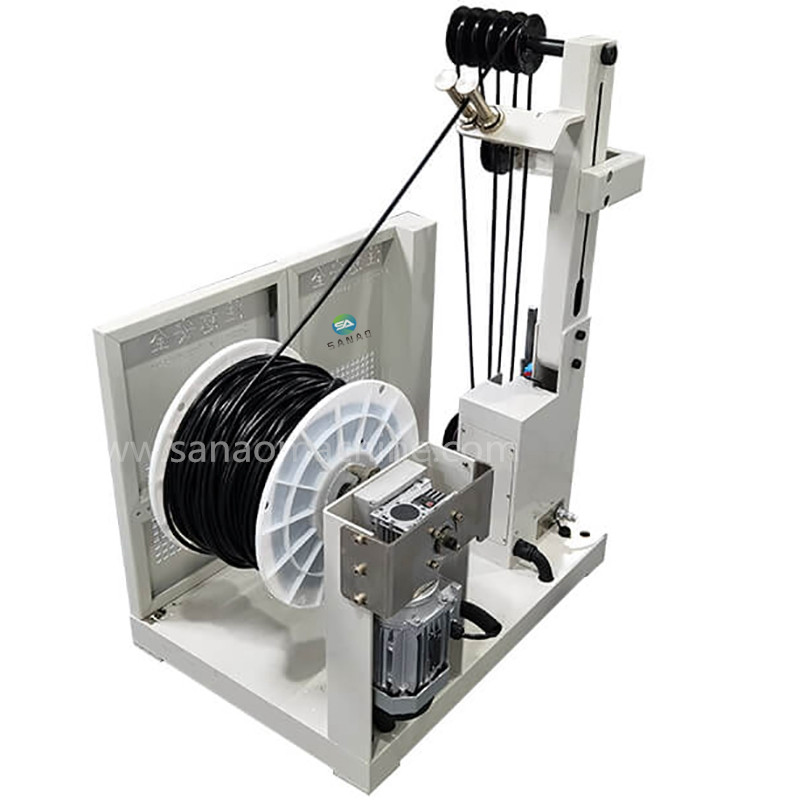

  • Description: Automatic Wire Feeding Machine ,the speed is changed according to cutting machine speed that not need people adjust ,automatic induction pay off, guarantee wire/cable can automatically send out. Avoid tying a knot to, it is suitable to match with our wire cutting and stripping machine to use.
  • INQUIRY   EMAIL

Automatic Wire Feeding Machine ,the speed is changed according to cutting machine speed that not need people adjust ,automatic induction pay off, guarantee wire/cable can automatically send out. Avoid tying a knot to, it is suitable to match with our wire cutting and stripping machine to use.

Feature
1.The frequency converter controls the pre-feeding speed.Not need people operate speed , It is suitable for various wires and cables.

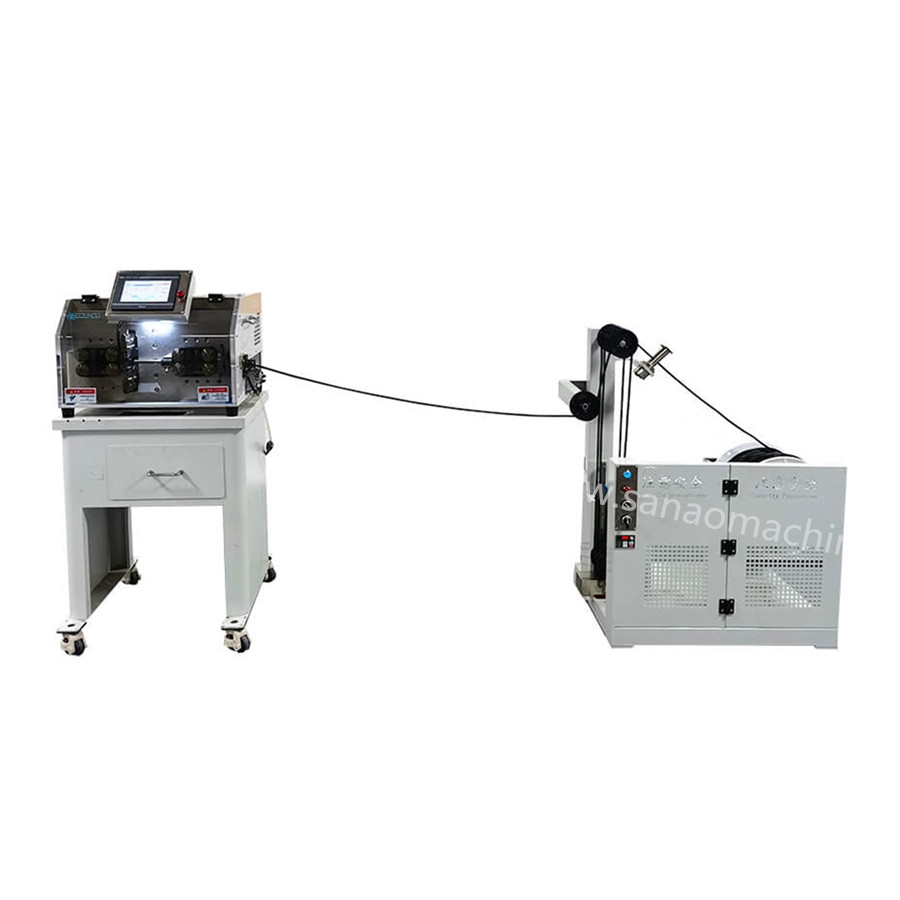

2.can cooperate with any kind of automatic machine to feed the wire. Can Automatically cooperate with wire stripping machine speed
3.Applicable to various types of electronic wires, cables, sheathed wires, steel wires, etc.
4. Cable spool max diameter: 600mm ,Max Load weight: 400KG

Model

SA-F300

SA-F600

Available Wire size

0.5-10mm2

≤ Φ16mm

Available Spool Diameter

≤ 600mm

≤ 300-700mm

Max Load Weight

60kg

200kg

Feeding Speed

0-4m/s

0-50m/min

Power Supply

220/110V,50/60Hz

Available Wire

Wire, cable etc.

Drive Type

Inverter & motor & reducer

Dimensions

75*40*110cm

104*62*140cm

Weight

55kg

135kg
