Multi core wire stripping machine

  • Small multi core wire stripping cutting machine
  • Small multi core wire stripping cutting machine
  • Small multi core wire stripping cutting machine
Small multi core wire stripping cutting machine Small multi core wire stripping cutting machine Small multi core wire stripping cutting machine

Small multi core wire stripping cutting machine

  • SA-9050
  • Description: Processing wire range: 1-6mm, Design for multi core stripping machine ,Stripping outer jacket and inner core at one time, It’s Greatly Improved stripping speed and save labor cost.
  • INQUIRY   EMAIL

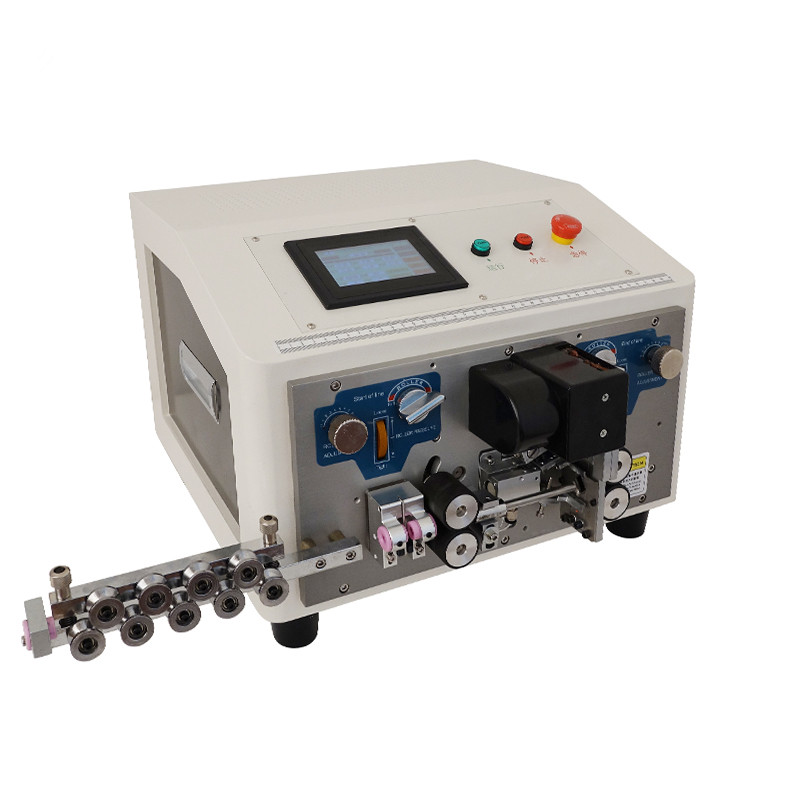

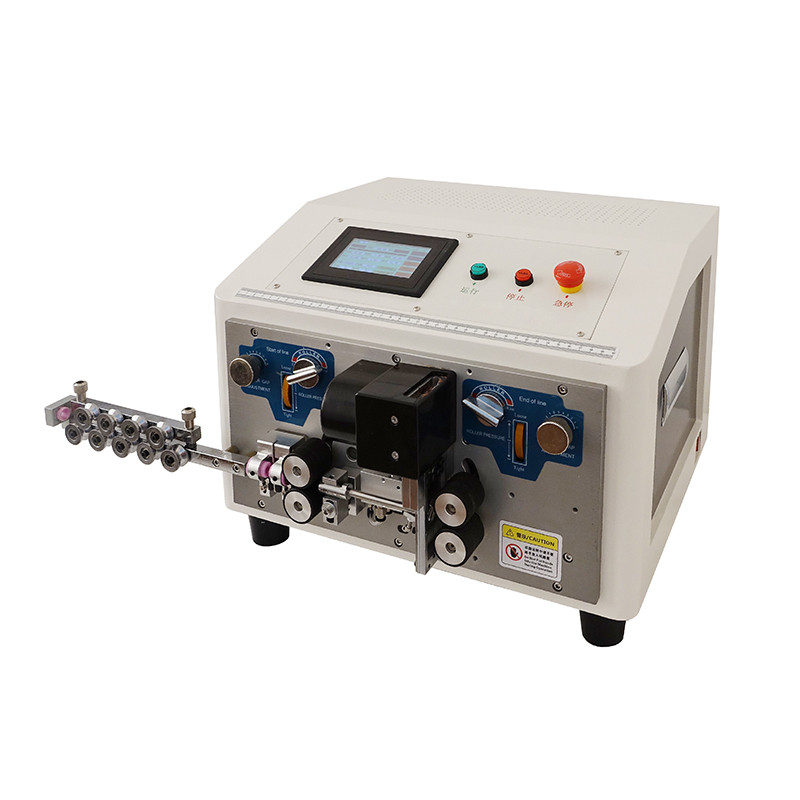

Full automatic Multi core stripping cutting machine.

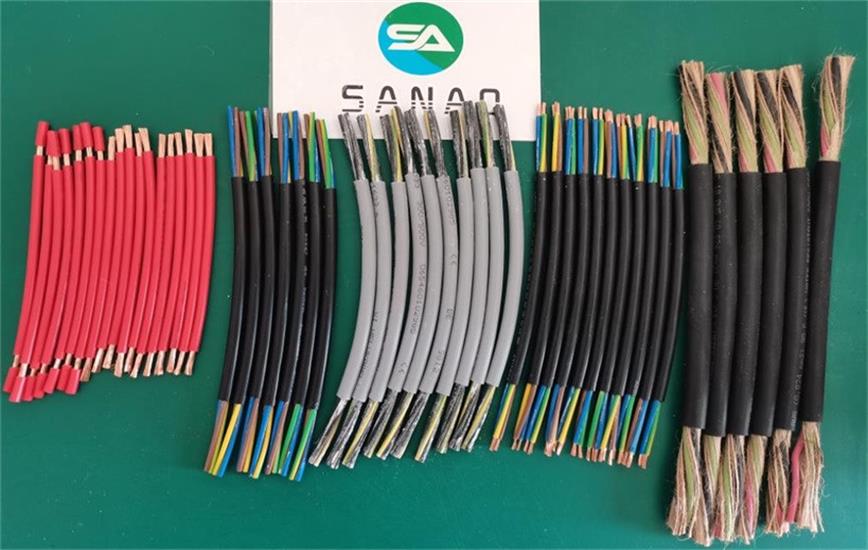

Processing wire range: 1-6mm, Design for multi core stripping machine ,Stripping outer jacket and inner core at one time, It’s Greatly Improved stripping speed and save labor cost.

Introduction

1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

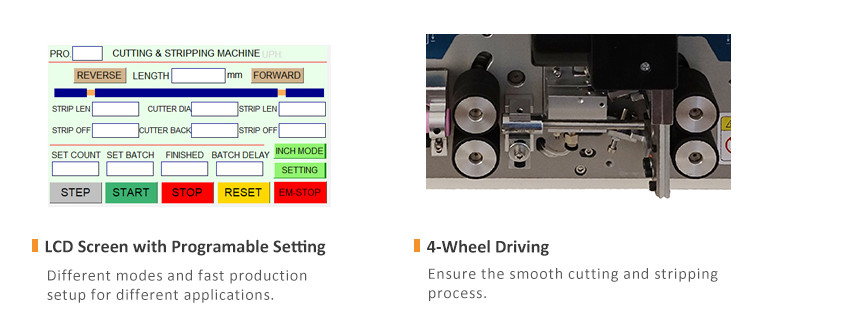

3.Easy to operate program with English display , stable quality with 1 year warranty and        low maintenance,
4.Optional external device connection possibility: Wire feeding machine, wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy, It’s can Greatly Improved stripping speed and save labor cost.


Model

SA-9050

Function

Wire cutting, double-end stripping,middle stripping

Wire range

1-6mm

Strip cores

2 3 4 5  core

Cutting length

0.1mm-99999.9mm

Stripping length

Outer line:  head:0.1-250mm   tail: 0.1-70mm

Core line:   head:0.1-30mm     tail: 2-30mm

Stripping accuracy

Silent hybrid stepper motor 0.01mm

Intermediate strip

Can be customized

Capacity

1000-2000 pcs / h( L=200mm)

Blade material

Imported tungsten steel/high-speed steel

Power

AC110V/220V  50/60HZ

Body size

470mm*450mm*350mm

Body weight

32kg

Remark function

Automatic entry / exit, timing start, jog adjustment


Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
