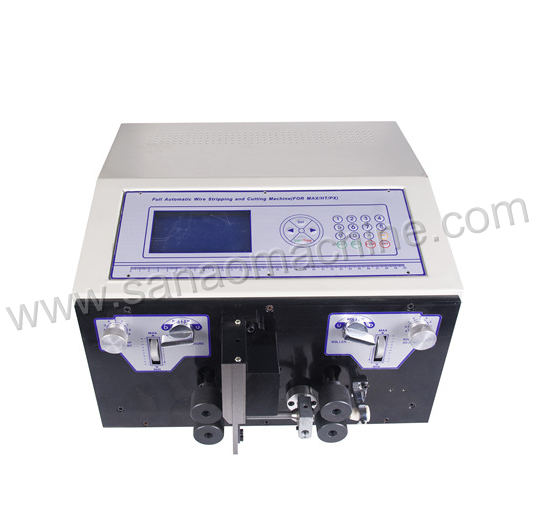

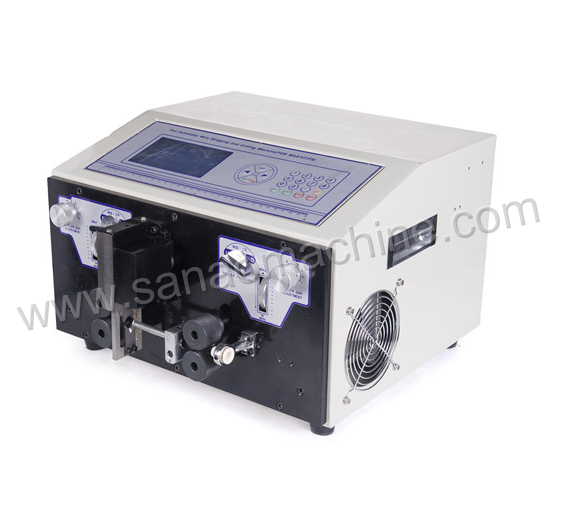

Multi core wire stripping machine

  • Max.6MM Outer Jacket stripping cut machine for sheathed wire
  • Max.6MM Outer Jacket stripping cut machine for sheathed wire
Max.6MM Outer Jacket stripping cut machine for sheathed wire Max.6MM Outer Jacket stripping cut machine for sheathed wire

Max.6MM Outer Jacket stripping cut machine for sheathed wire

  • SA-208HT
  • Description: Processing wire range: Max.6mm ,SA-208HT,Outer Jacket stripping cut machine for sheathed wire,full automatic stripping and cutting outer jacketed of sheathed cable , This model can’t stripping inner core , Flat and round sheathed wire all can process .It’s Greatly Improved stripping speed and save labour cost.Need match 3F to stripping inner core
  • INQUIRY   EMAIL

Outer Jacketed stripping machine for sheathed wire

Processing wire range: Max.12mm ,full automatic stripping and cutting outer jacketed of sheathed cable , This model can’t stripping inner core , Flat and round sheathed wire all can process .It’s Greatly Improved stripping speed and save labour cost. Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy

Introduction:

1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and        low maintenance,

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.




Model

SA-208HT

SA-208HT2

Available Wire

Round sheathed cable

Round sheathed cable

Conductor Cross-Section

0.1-10mm²

0.1-10mm²

Cutting Length

1-100000mm

1-100000mm

Cutting Length precision

≤±(0.0001*L)mm

≤±(0.0001*L)mm

Stripping Features

Stripping jacket

Stripping jacket

Stripping Length

Head length :0-50mm

Tail length :0-50mm

Head length :0-150mm

Tail length :0-150mm

Conduit Diameter

Φ13mm

Φ13mm

Production Rate

L=100mm,3000-6000pcs/h

L=100mm,3000-6000pcs/h
