Multi core wire stripping machine

  • Full automatic multi core wire stripping cutting machine
  • Full automatic multi core wire stripping cutting machine
  • Full automatic multi core wire stripping cutting machine
Full automatic multi core wire stripping cutting machineFull automatic multi core wire stripping cutting machineFull automatic multi core wire stripping cutting machine

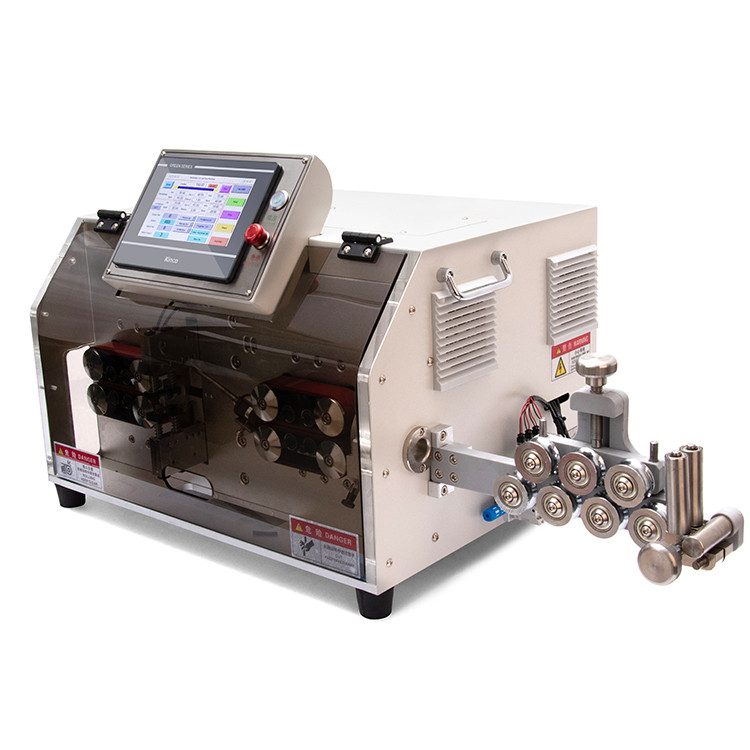

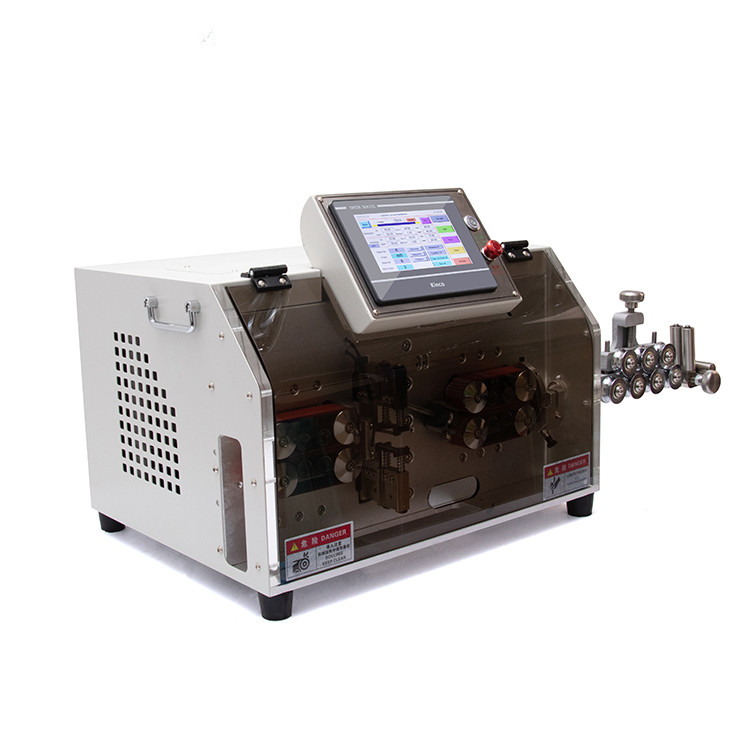

Full automatic multi core wire stripping cutting machine

  • SA-H03

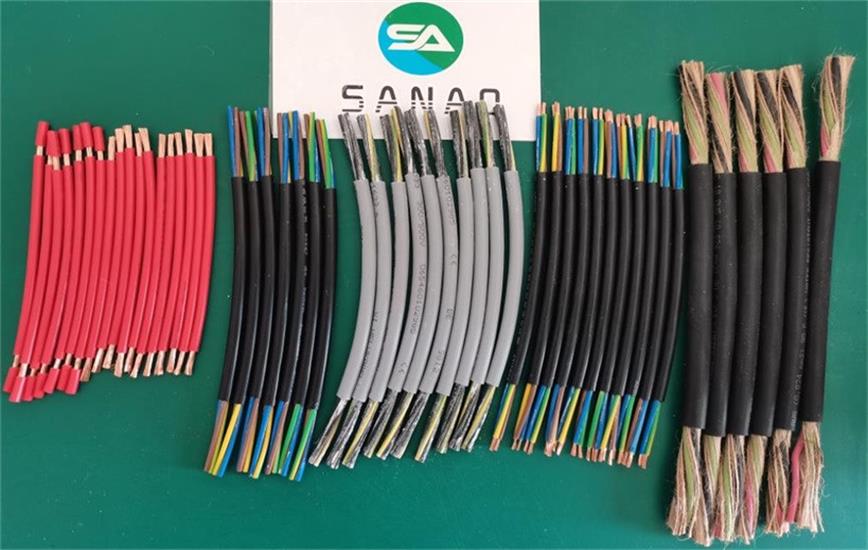

  • Description: Processing wire range: 0.5-30mm²,full automatic stripping and cutting machine, stripping outer jacketed and inner core at one time ,It’s Greatly Improved stripping speed and save labor cost.
  • INQUIRY   EMAIL

Processing wire range:4-30mm²,full automatic stripping and cutting machine for large cable, or stripping outer jacketed of sheathed cable,It’s Greatly Improved stripping speed and save labor cost. Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy.

Introduction

1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and        low maintenance,
4.Optional external device connection possibility: Wire feeding machine, wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy, It’s can Greatly Improved stripping speed and save labor cost.



Model

SA-H03

SA-H07

Conductor Cross-Section

4-30mm²

10-70mm² ;

Cutting Length

1-99999mm

200-99999mm

Cutting Length Tolerances

(0.002*L) mm

≤(0.002*L) mm

Jacket Stripping Length

Head 10-120mm; Tail 10-240mm

Head 30-200mm; Tail 30-150mm

Inner Core Stripping Length

Head 1-120mm; Tail 1-240mm

Head 1-30mm; Tail 1-30mm

Conduit Diameter

Φ16mm

Φ25mm

Production Rate

Single wire :2300pcs/h
Sheath wire :800pcs/h (base on wire and cutting length)

single wire : 2800pcs/h
Sheath wire 800pcs/h (base on wire and cutting length)

Display Screen

7 inch touch screen

7 inch touch screen

Drive Method

16 wheels drive

32 wheels drive

Wire Feed Method

Belt feeding wire, no indentation on cable

Belt feeding wire, no indentation on cable
