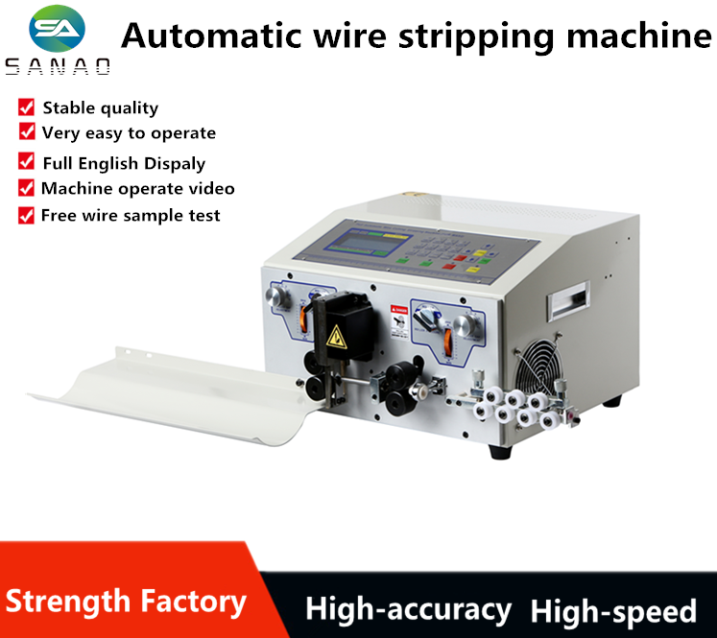

2-12 pin flat cable cutting stripping machine

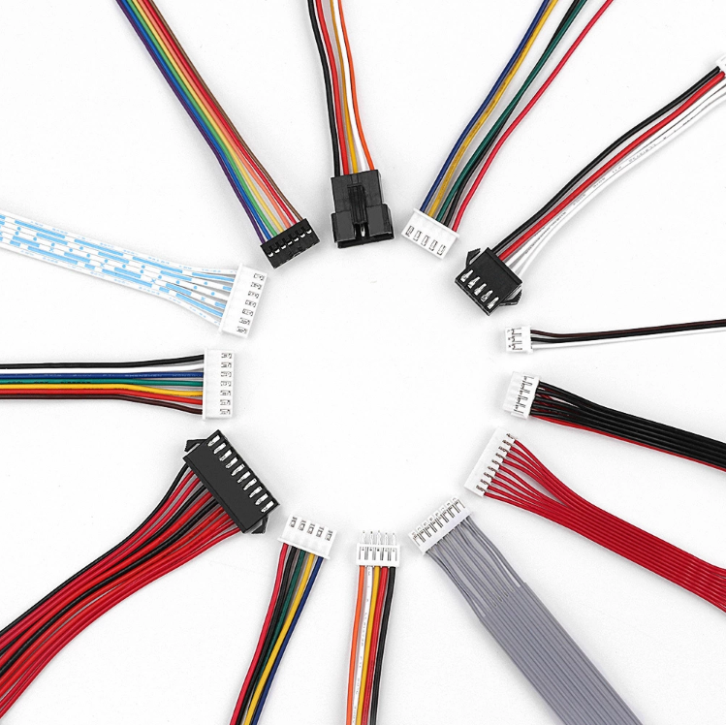

Processing wire range: 2-12 pin flat cable ,Full automatic Flat cable stripping cutting with splitting function ,suitable for stripping and cutting flat cable and rubber wire ,Widely used in wire harness processing industry for automotive electrical appliances, instrumentation,lamps, household appliances, It’s Greatly Improved stripping speed and save labour cost.
Introduction:
1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.
2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
|
Model |
SA-208PX2 |
|
Features |
With wire splitting function |
|
Available Wire Size |
2-12P flat cable （ 0.1-4.5 m㎡ ） |
|
Cutting Length |
1-100000mm |
|
Cutting Length Tolerances |
≤ (0.0001*L)mm |
|
Stripping Length |
Head stripping length : 0-15mm, Tail stripping length: 0-15mm |
|
Intermediate Stripping |
Max 13 sections |
|
Conduit Diameter |
Flat 100*22*2.8mm |
|
Production Rate |
L=100mm, 3000-5000pcs/h |
|
Display Screen |
Chinese / English LCD Screen |
|
Drive Method |
4 wheels drive |
|
Power Supply |
110/220VAC, 50/60Hz |
|
Power |
450W |
