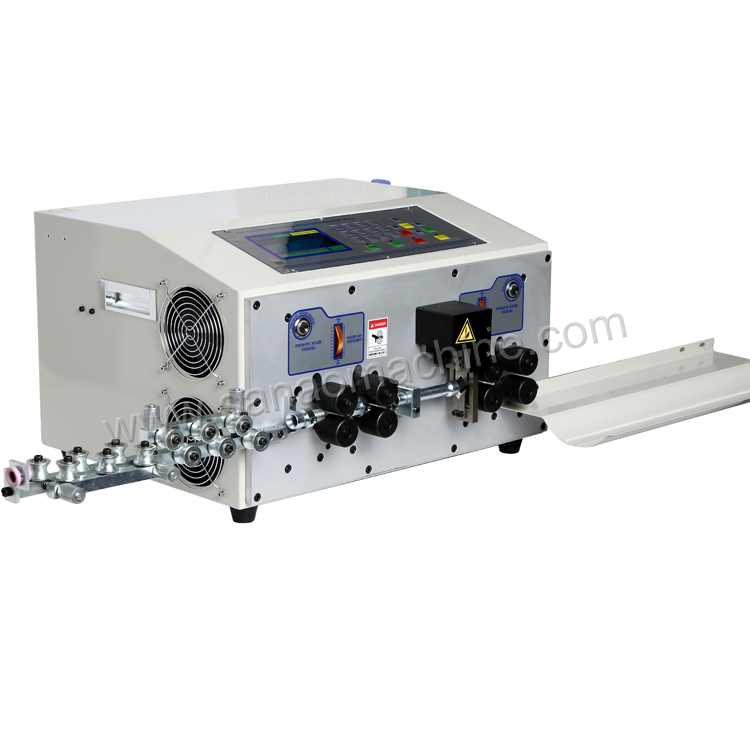

0.3-25mm² power cable Computer wire stripping and cutting machine

  • SA-MAX1-8
  • Description: Processing wire range: 0.3-25mm², SA-MAX1-8,Automatic small cable stripping machine for wire,Full automatic stripping and cutting double end at one time ,Widely used in wire harness. It’s Greatly Improved stripping speed and save labor cost.
  • INQUIRY   EMAIL

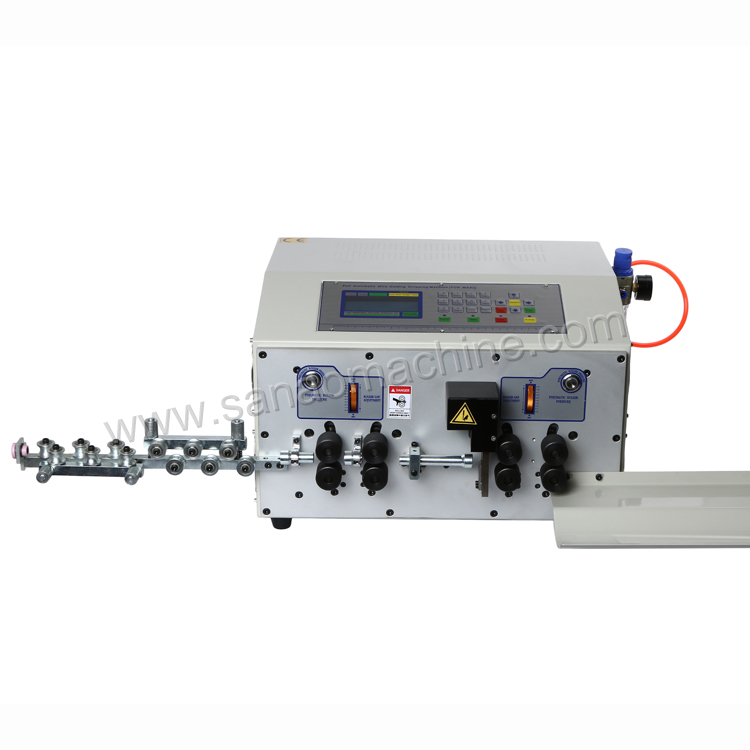

Full automatic Large single cable stripping cutting machine.

Processing wire range: 0.3-25mm²,full automatic stripping and cutting machine for large cable, or stripping outer jacketed of sheathed cable(Max. 7 core) ,It’s Greatly Improved stripping speed and save labour cost.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy.

Introduction:

1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

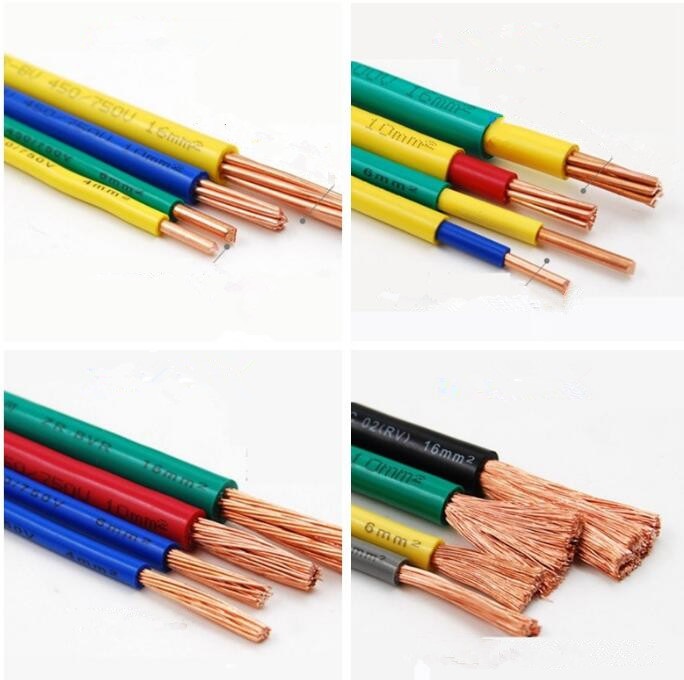

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and        low maintenance,

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing



Model

SA-MAX1-8

SA-MAX1-4

SA-MAX

Available Wire Size

AWG8 - AWG32

AWG8 - AWG32

AWG8 - AWG32

Conductor Cross-Section

0.3-25mm²

0.3-25mm²

0.2-16mm²

Cutting Length

1-100000mm

1-60000mm

1-60000mm

Cutting Length Tolerances

(0.0001*L)mm

± (0.0001xL )mm

± (0.0001xL )mm

Stripping Length

Head length :0-100mm

Tail length :0-100mm

Head length :0-50mm

Tail length :0-50mm

Head length :0-50mm

Tail length :0-50mm

Intermediate Stripping

Max 16 sections

Max 13 sections

Max 13 sections

Conduit Diameter

Φ13mm

Φ13mm

Φ13mm

Production Rate

L=100mm,
4000-5000pcs/h

L=100mm,
3000-4000pcs/h

L=100mm,
2000-3000pcs/h

Drive Method

8 wheels drive

4 wheels drive

4 wheels drive

Power

800W

500W

500W
