Electric wire stripping machine

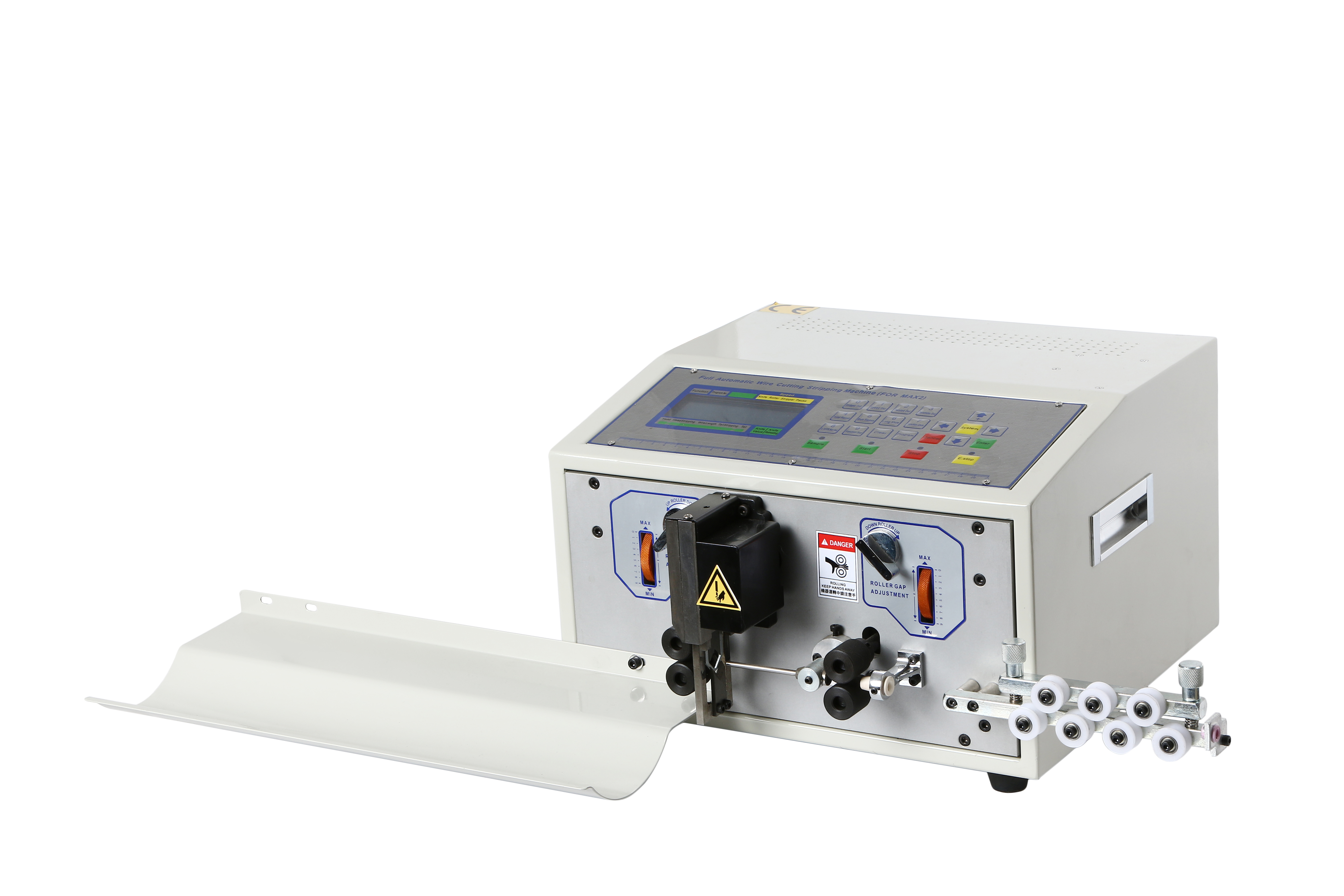

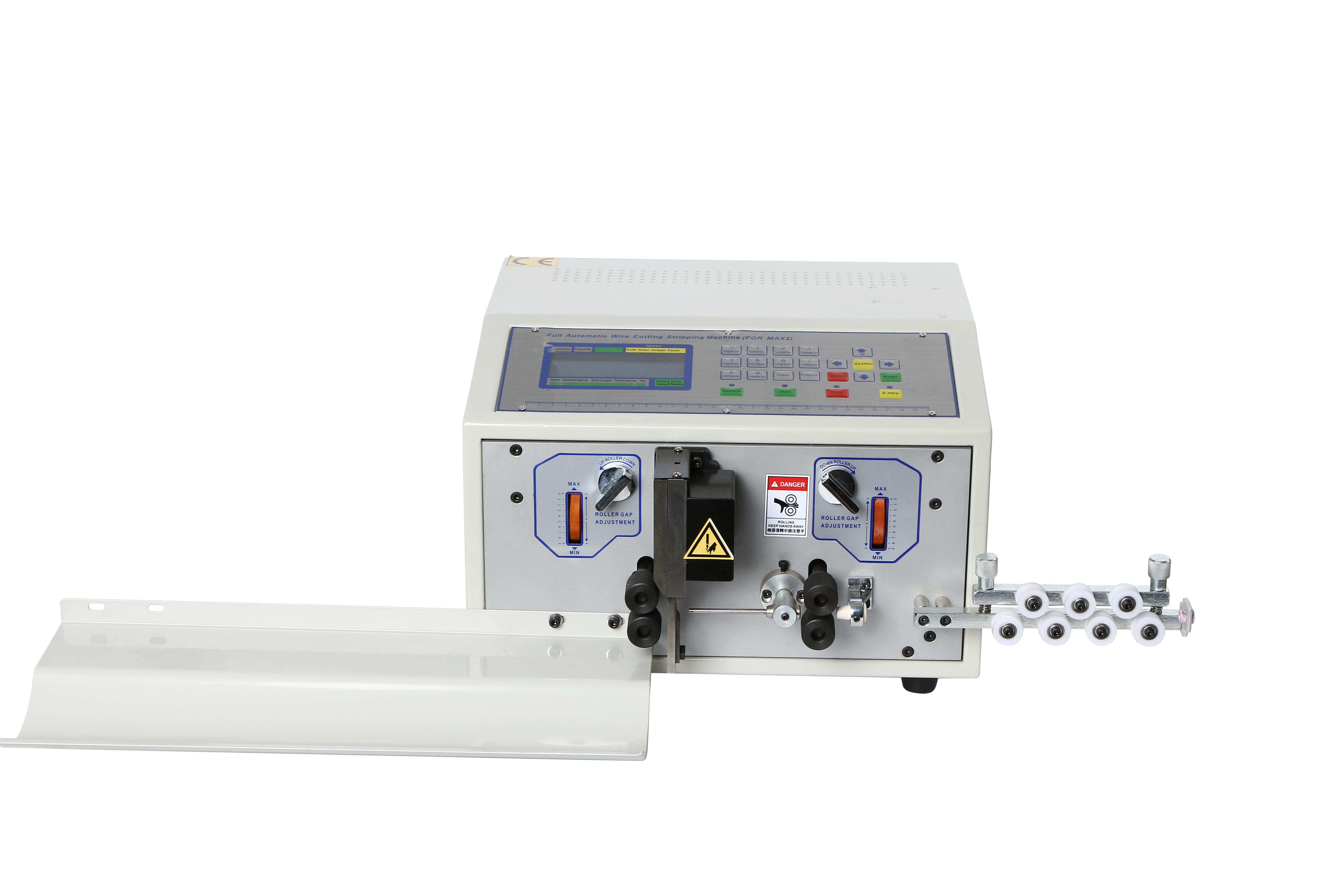

Automatic cable stripping machine

SA-208C
Description: Processing wire range: 0.1-2.5 mm², SA-208C,Automatic small cable stripping machine for wire,Full automatic stripping and cutting double end at one time ,Widely used in wire harness. It’s Greatly Improved stripping speed and save labor cost.
INQUIRY EMAIL

cable cutting and stripping machine for small cable

Stripping wire range: 0.1-2.5 mm²,Full automatic cut length and stripping both end,Widely used in wire harness processing industry for automotive electrical appliances, instrumentation,lamps, household appliances, It’s Greatly Improved stripping speed and save labour cost

Introduction:

1. It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.

Model	SA-208C	SA-208SD	SA-208E
Conductor Cross-Section	0.1-2.5mm²	0.1-4.5mm²	0.1-8mm²
Stripping Length	Head length : 0-35mm Tail length : 0-15mm	Head length : 0-35mm Tail length : 0-15mm	Head length : 0-35mm Tail length : 0-15mm
Cutting Length	1-9999mm	1-9999mm	1-9999mm
Cutting Length Tolerances	≤ (0.002*L)mm	≤ (0.002*L)mm	≤ (0.002*L)mm
Intermediate Stripping	Max 11 sections	Max 11 sections	Max 11 sections
Conduit Diameter	Φ6mm	Φ6mm	Φ10 mm
Display Screen	Chinese / English LCD Screen
Production Rate	3000-8000pcs/h	3000-8000pcs/h	3000-5000pcs/h
Drive Method	2 wheels drive	4 wheels drive	4 wheels drive
Power	160W	200W	200W
Power Supply	110/220VAC, 50/60Hz
