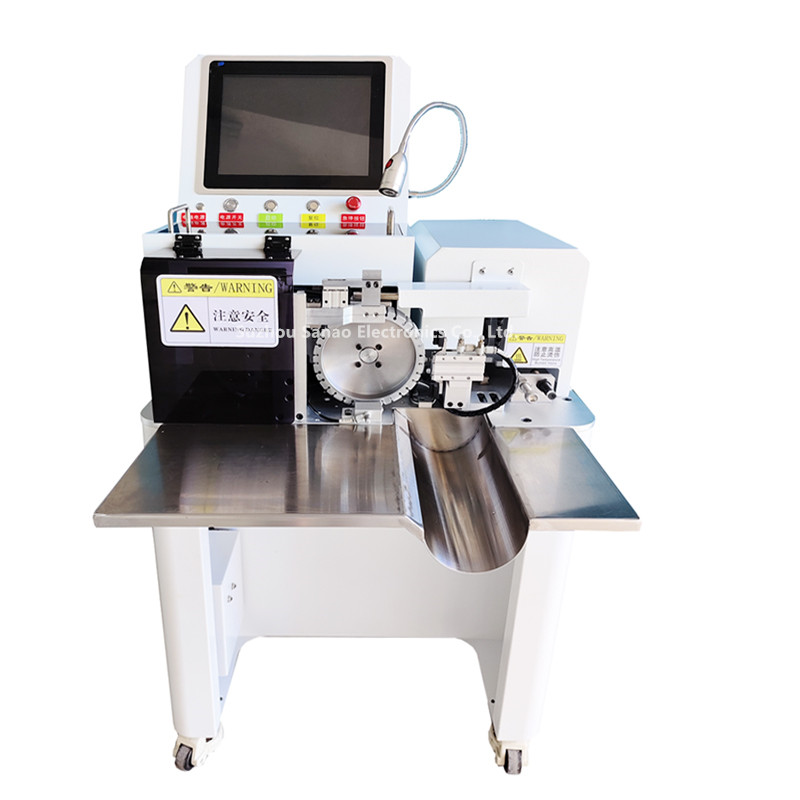

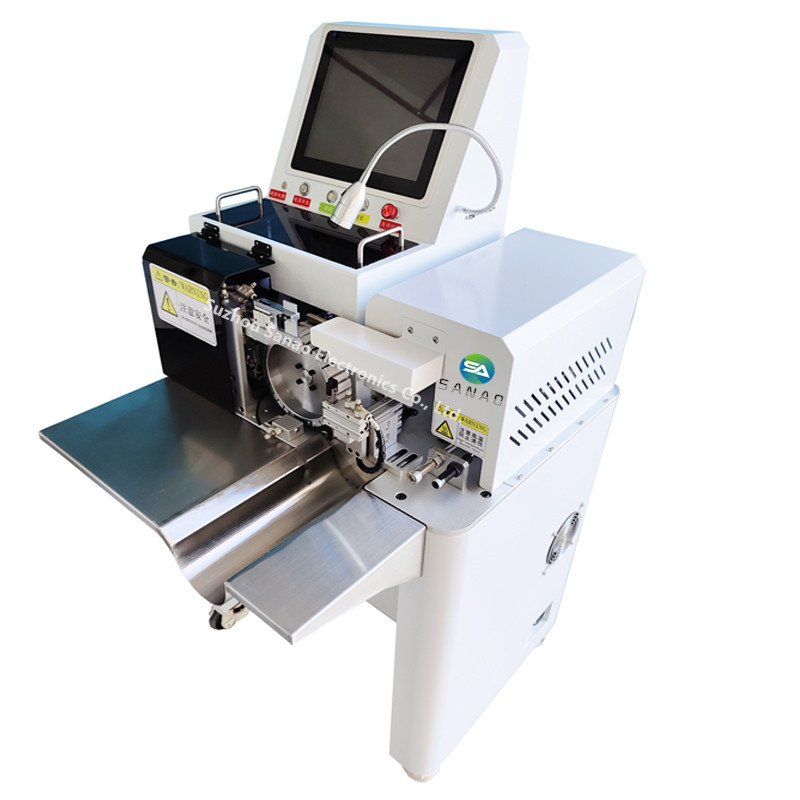

Automatic heat shrinkable tube inserting with printing machine

  • Model:SA-RSG2600
  • Description: SA-RSG2600 is Automatic heat shrinkable tube inserting printing machine , Machine can process multi core wire at one time ,The operator only needs to insert the wire into the working position ,then press pedal, Our machine will automatically cut off and inserted tube into the wire and heat-shrinked. It’s Greatly Improved wire process speed and save labor cost.
  • INQUIRY   EMAIL

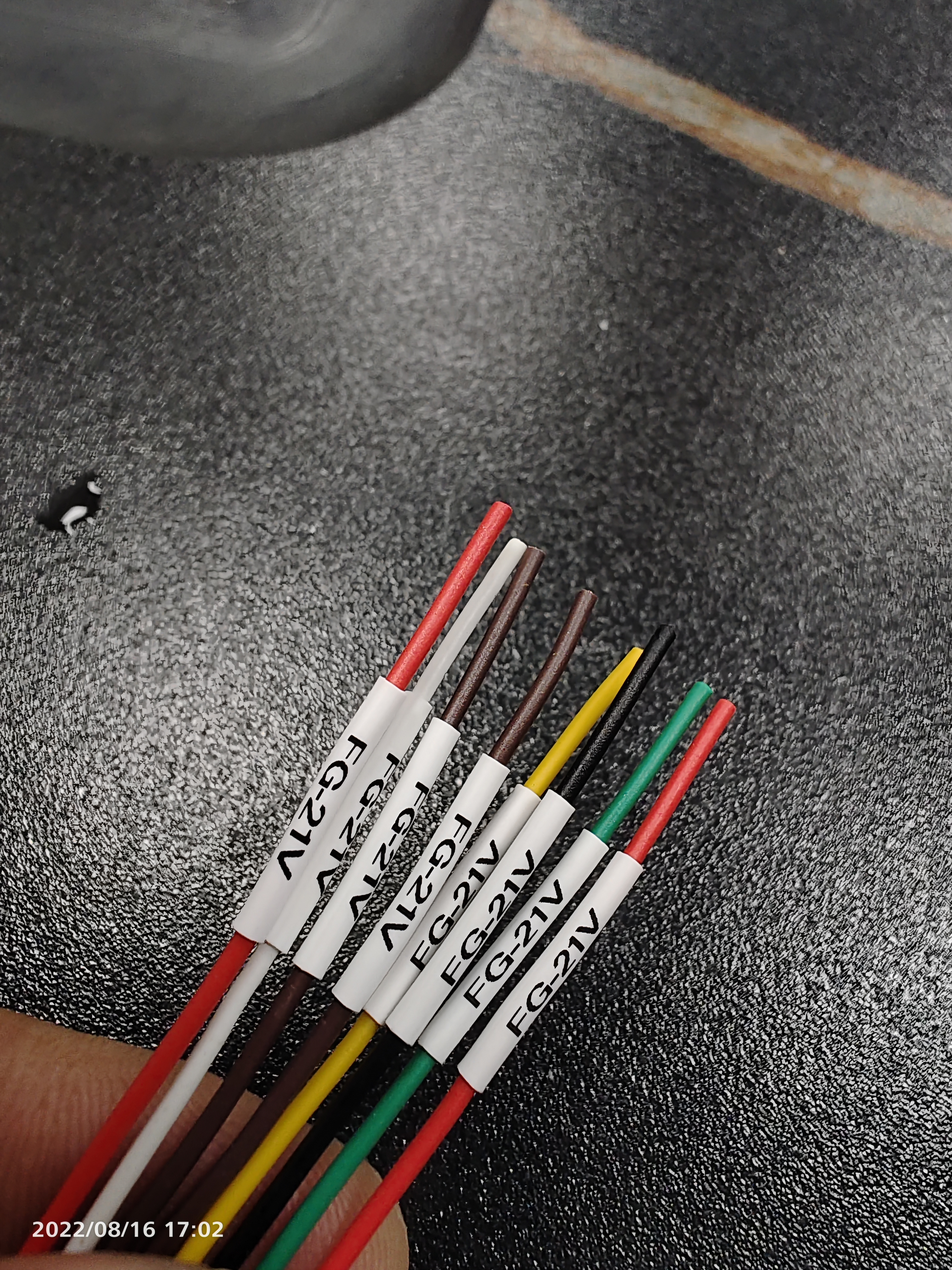

SA-RSG2600 isAutomatic heat shrinkable tube inserting with printing function machine , Thermal printing is used,Machine can process multi core wire at one time ,dand Machine can save 20 kinds program to printing information ,same or different words al can printing , For example , 10 core sheathed wire that need printing different words on each core , This is ok .

Main Features:

1. High efficiency, save labor cost.can process multi core wire at one time
2. Compared with the hot air cylinder, the power consumption of this machine is lower. Save effort and power.
3. The tube length, specifications, heat shrink temperature and time can be adjusted by debugging and replacing the corresponding accessories.

5. Touch English screen , easy operation.


Model

SA-RSG2600

Applicable sleeves length

6~35mm (Match fixture for different length )

When the length exceeds 5mm, Can't use the same fixture .

Applicable sleeves OD

Ф 1.0~Ф 6.0mm (Other size can customized by evaluating feasibility)

Cutting accuracy

±0.3mm

Positioning accuracy

±0.2mm

Power

1450W

Production efficiency

700~1,500 PCS/H (depending on the sleeve size and quantity)

Yield rate

99% (under the premise of correct operation by personnel)

Weight

about 200 kg

Dimensions

700mm*800mm*1,220mm (L*W*H)

Power supply

AC220V 50HZ

Air pressure

0.5-0.6Mpa (compressed air must be dry, sufficient and oil-free. Otherwise it will affect the performance of the equipment).
