Shrinkable tube heating machine

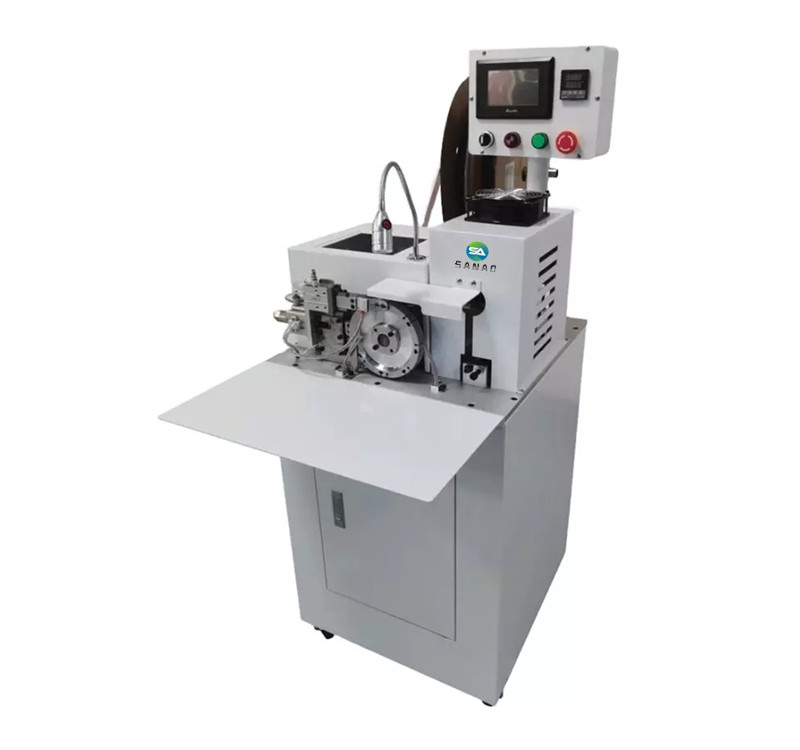

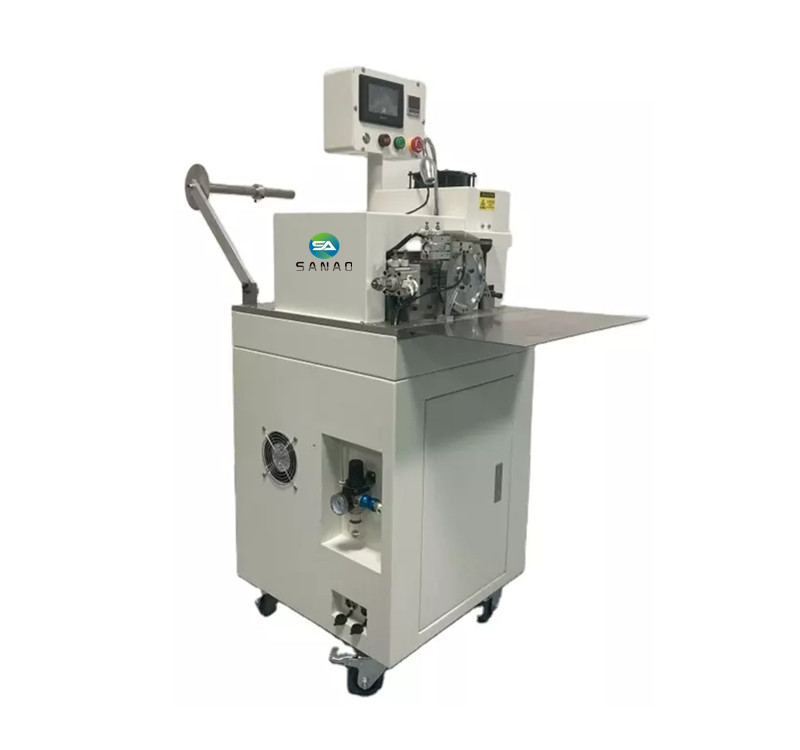

Automatic heat shrinkable tube inserting machine

Automatic heat shrinkable tube inserting machine

Model:SA-RSG2500
Description: SA-RSG2500 is Automatic heat shrinkable tube inserting machine , Machine can process multi core wire at one time ,The operator only needs to insert the wire into the working position ,then press pedal, Our machine will automatically cut off and inserted tube into the wire and heat-shrinked. It’s Greatly Improved wire process speed and save labor cost.
INQUIRY EMAIL

SA-RSG2500 is Automatic heat shrinkable tube inserting machine , Machine can process multi core wire at one time ,The operator only needs to insert the wire into the working position ,then press pedal, Our machine will automatically cut off and inserted tube into the wire and heat-shrinked. It’s Greatly Improved wire process speed and save labor cost.

Main Features:

1. High efficiency, save labor cost.can process multi core wire at one time
2. Compared with the hot air cylinder, the power consumption of this machine is lower. Save effort and power.
3. The tube length, specifications, heat shrink temperature and time can be adjusted by debugging and replacing the corresponding accessories.

5. Touch English screen , easy operation.

Model	SA-RSG2500
Applicable sleeves length	4~50mm (Match fixture for different length )
Applicable sleeves length	When the length exceeds 5mm, Can't use the same fixture .
Applicable sleeves OD	Ф 1.0~Ф 6.5mm (Other size can customized by evaluating feasibility)
Cutting accuracy	±0.3mm
Positioning accuracy	±0.2mm
Power	1350W
Production efficiency	700~1,200 PCS/H (depending on the sleeve size and quantity)
Yield rate	99% (under the premise of correct operation by personnel)
Weight	about 200 kg
Dimensions	700mm800mm1,220mm (LWH)
Power supply	AC220V 50HZ
Air pressure	0.5-0.6Mpa (compressed air must be dry, sufficient and oil-free. Otherwise it will affect the performance of the equipment).
