Semi-auto wire stripping machine

  • Automatic inner core stripping twisting machine
  • Automatic inner core stripping twisting machine
  • Automatic inner core stripping twisting machine
Automatic inner core stripping twisting machineAutomatic inner core stripping twisting machineAutomatic inner core stripping twisting machine

Automatic inner core stripping twisting machine

  • Model :SA-3FN

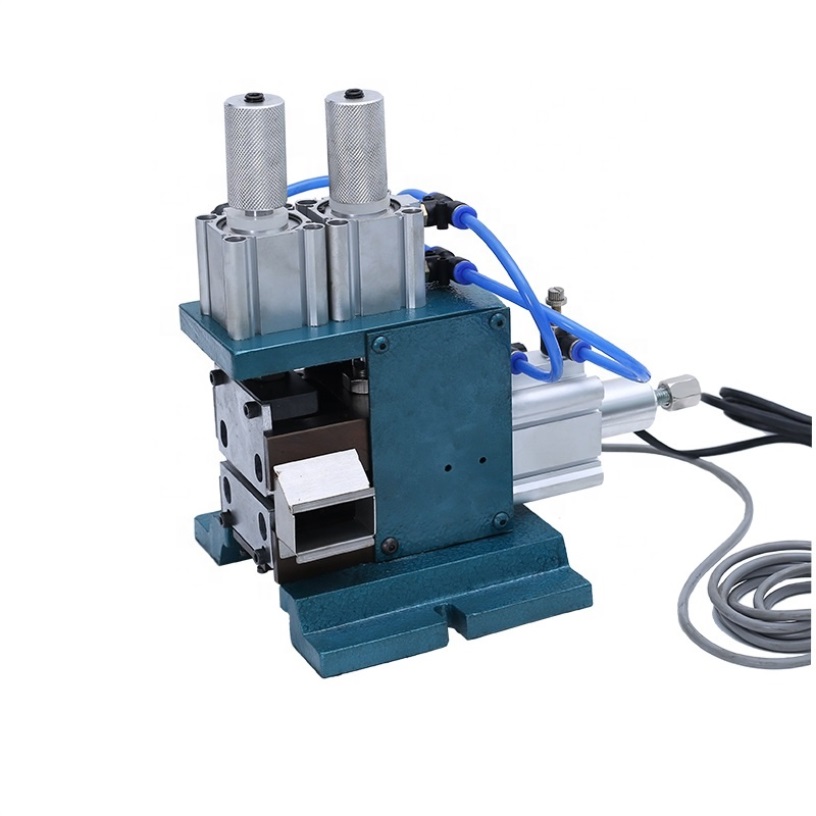

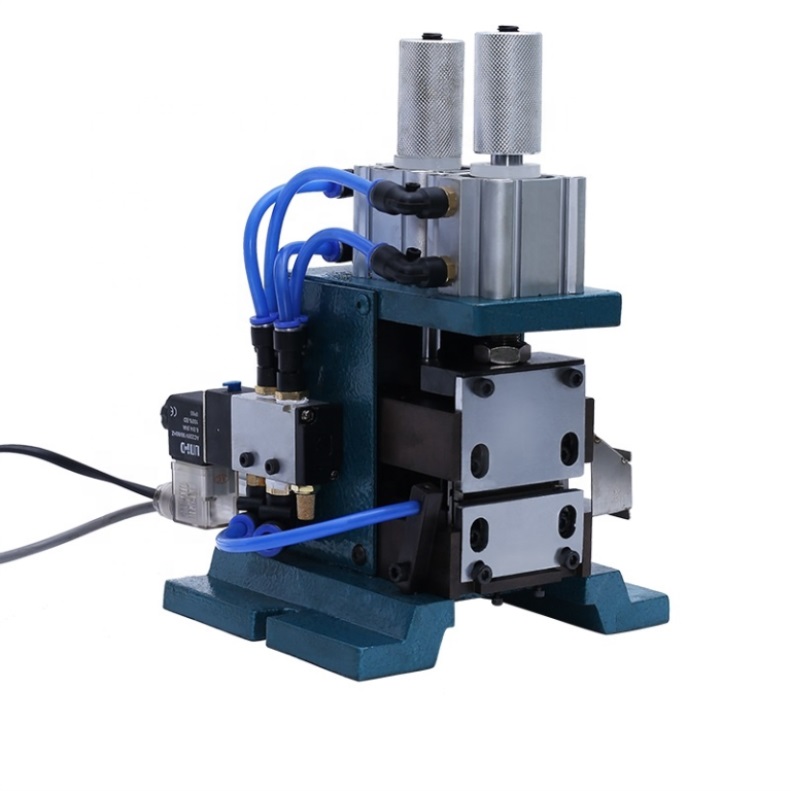

  • Description: This pneumatic wire stripping machine is mainly used for peeling multi-conductor computer cables, telephone cables, parallel cables and power cords.
  • INQUIRY   EMAIL


This pneumatic wire stripping machine is mainly used for peeling multi-conductor computer cables, telephone cables, parallel cables and power cords.

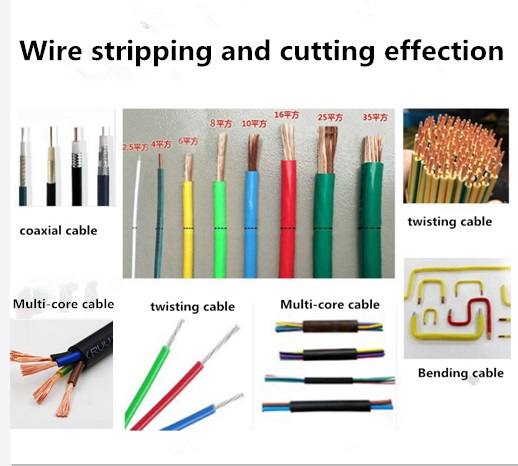

1.This machine is mainly used for stripping multi-conductor computer cables, telephone cables, parallel cables and power cords.

2.The machine is based on the standard version to use dual cylinders, adding the delay function after the peeling. The thread is twisted for 1 second, the effect is more stable and the quality is more perfect.

3.Exquisite and compact design, small foot pedal

4.Air pressure operation and electromagnetism value control

4.Changing procedure & materials rapidly

5.High-efficiency step drive, high-accuracy and fast speed

Model

SA-3F

SA-3FN

SA-4FN

Features

Stripping

Stripping and Twisting

Stripping and Twisting, stronger mode

Available Wire Size

AWG13 - AWG28

AWG18 - AWG28

AWG16 - AWG32

Conductor Cross-Section

0.1-2.5mm²

0.1-0.75mm²

0.1-2.5mm²

Stripping Length

2-30mm

5-15mm

20-30mm

Twist Length

/

5-15mm

20-30mm

Production Rate

30-120 pcs/min

30-120 time/min (1-10pcs/time)

30-120 time/min (1-10pcs/time)

Air Connection

0.4-0.75Mpa

Power Supply

110/220VAC, 50/60Hz

Weight

9.5kg

15kg

19kg

Dimensions

26*15*27cm

32*23*30cm

32*23*30cm

Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
