Semi automatic crimping machine

  • Automatic wire stripping ferrule terminal crimp machine
  • Automatic wire stripping ferrule terminal crimp machine
  • Automatic wire stripping ferrule terminal crimp machine
Automatic wire stripping ferrule terminal crimp machineAutomatic wire stripping ferrule terminal crimp machineAutomatic wire stripping ferrule terminal crimp machine

Automatic wire stripping ferrule terminal crimp machine

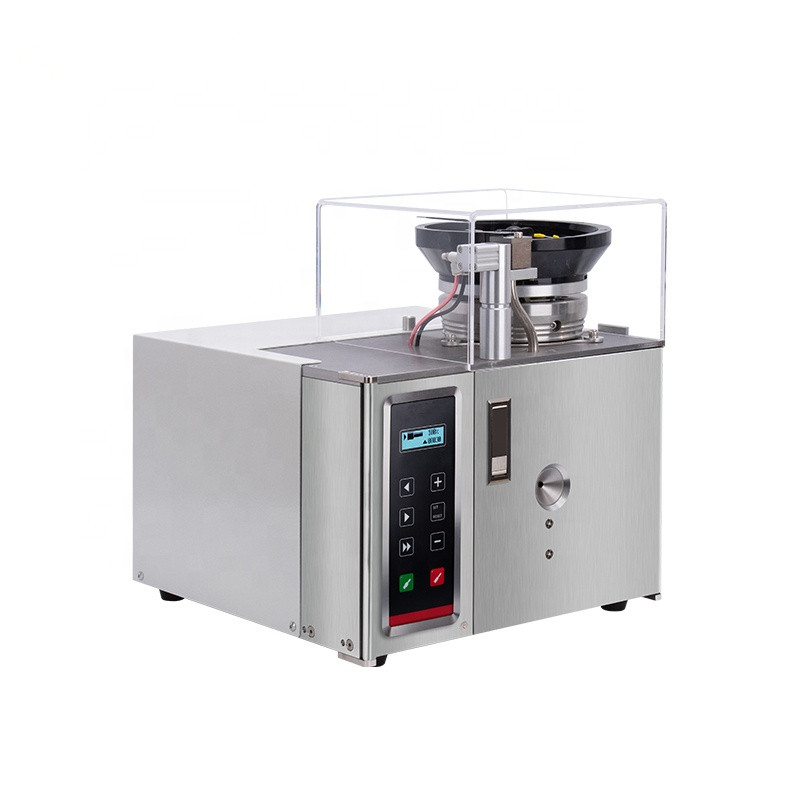

  • Model : SA-YJ300
  • Description: Automatic Ferrules Stripping Crimping Machine ,Our machine provides efficient processing ferrules in different lengths . The ferrules are automatically fed by vibration plate , stripping and crimping in one work stepwhich greatly improves the crimping efficiency of the ferrules
  • INQUIRY   EMAIL

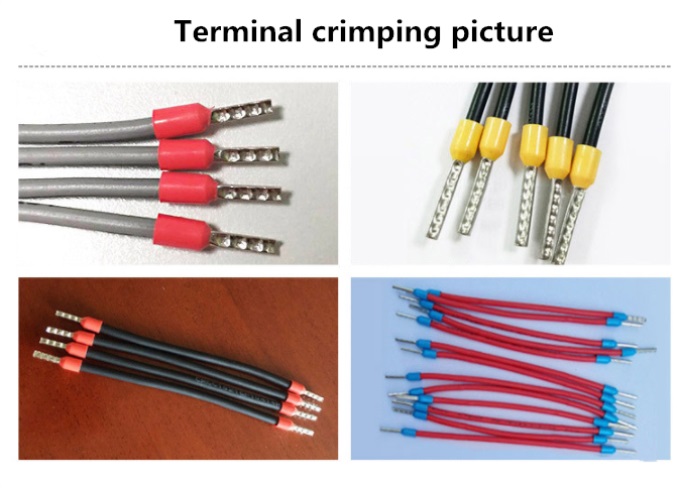

Automatic Wire Stripping and Ferrules Crimping Machine ,Our machine  provides efficient processing of loose wire end sleeves / ferruleswith plastic collars in different lengths . The ferrules are automatically fed by vibration plate , stripping and crimping in one work stepwhich greatly improves the crimping efficiency of the ferrules . The feeding guide rail is easy to adjust One machine can be used forterminals of different sizes.Suitable for crimping a variety of loose tubular terminals onto cables
1.Wire stripping and crimping can be finished at one time

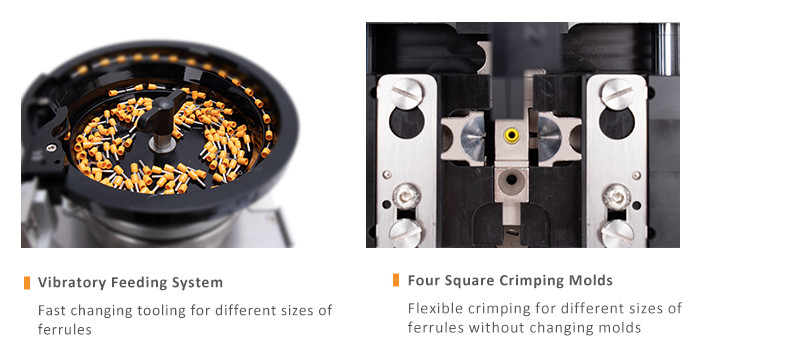

2.The terminals are crimped on all four sides, no need to replace the crimping die
3.LCD display, automatically adjust stripping depth and length, as well as crimping height
4.Vibrating plate feeding, saving time and effort, replacing terminals is convenient and quick
5.Fully sealed stripping and crimping, safe and reliable



Model

SA-YJ300

Stripping length

8-12mm (the stripping length can be setted)

Production

1.8s / wire

Wire size

BVR hard wire 0.5-4.0mm2, soft wire need twist 0.5-2.5mm2

Air supply

0.6-0.8Mpa

Control way

Touch panel, Electric, Pneumatic

Air supply

0.6-0.8Mpa

Working temperature

-10~40

Power source

AC220V/110V/50/60HZ

Weight

30KG

Dimension

W420mm×L400mm×H390mm
