Semi-auto wire stripping machine

  • Pneumatic outer jacket Cable inner core Stripping Machine
  • Pneumatic outer jacket Cable inner core Stripping Machine
  • Pneumatic outer jacket Cable inner core Stripping Machine
Pneumatic outer jacket Cable inner core Stripping Machine Pneumatic outer jacket Cable inner core Stripping Machine Pneumatic outer jacket Cable inner core Stripping Machine

Pneumatic outer jacket Cable inner core Stripping Machine

  • Model :SA-305FT

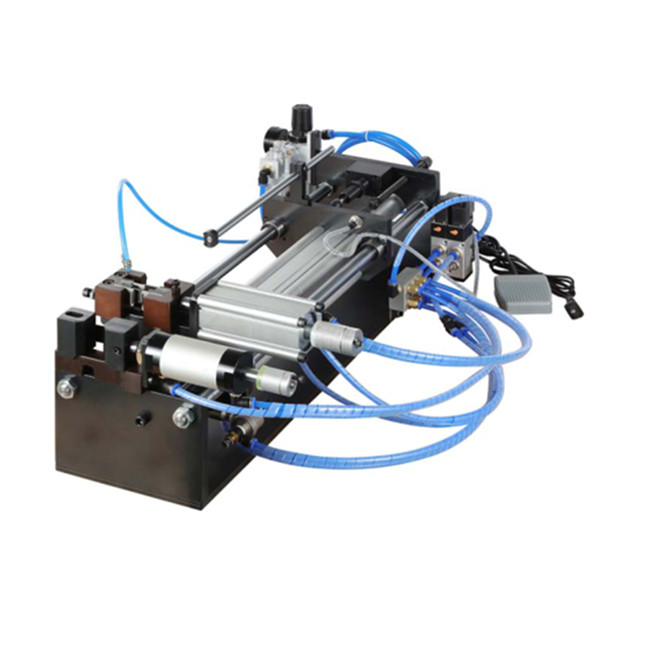

  • Description: This pneumatic sheathed cable stripping machine can peel off the outer jacket and inner core jacket simultaneously. It's saving time and efficiency. It is capable of precise stripping without causing damage to copper wires.
  • INQUIRY   EMAIL

This pneumatic sheathed cable stripping machine can peel off the outer jacket and inner core jacket simultaneously. It changes the traditional processing technology of peeling the outer skin first and then peeling the inner core skin, saving time and efficiency. It is capable of precise stripping without causing damage to copper wires.

1.recise stripping without causing damage to copper wires;

2.Peel off the outer jacket and inner core jacket at one time;

3.Unique slide, smooth reciprocating stroke, precise cutting;

3.Ergonomic hatchback design;

4.Double acting cylinder, no spring break;

5.The oil and gas self-supplied two-connected body is used to supply oil to the cylinder regularly, reducing internal wear of the cylinder and prolonging service life;

6.Gas-electric control, light and agile, easy to work;

7.Adjustable according to wire size;

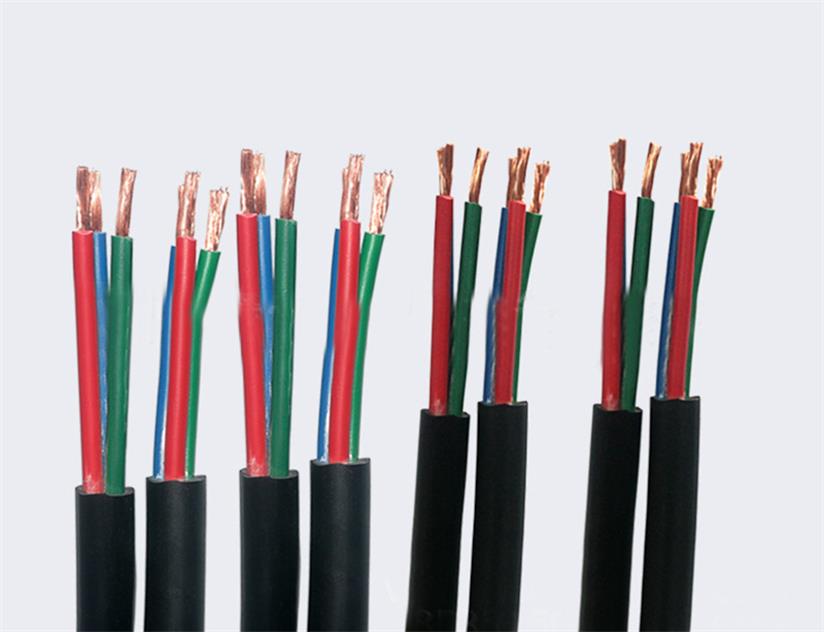

8.Suitable for processing small wires and short wires, such as AC / DC cables, power cord, computer cables, multi-core cables, sheath cables, etc.

Model

SA-305FT

SA-310FT

SA-315FT

Available Wire Dia

2-6 Diameter

3-9 Diameter

3-12 Diameter

inner core size

Max .0.5mm2

Max .0.5mm2

0.3-2.5mm2

Outer Stripping Length

Max 50mm

Max 80mm

25-150mm

Core Stripping Length

0-10mm

0-15mm

0-20mm

Stroke

50mm

80mm

150mm

Air Connection

0.4-0.8 Mpa

0.4-0.8 Mpa

0.4-0.8 Mpa
