Multi core wire stripping machine

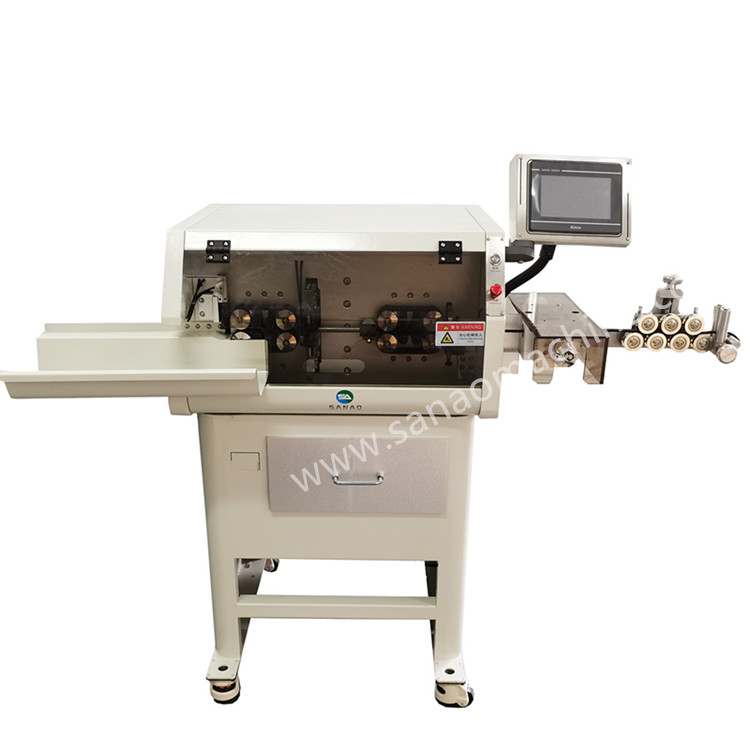

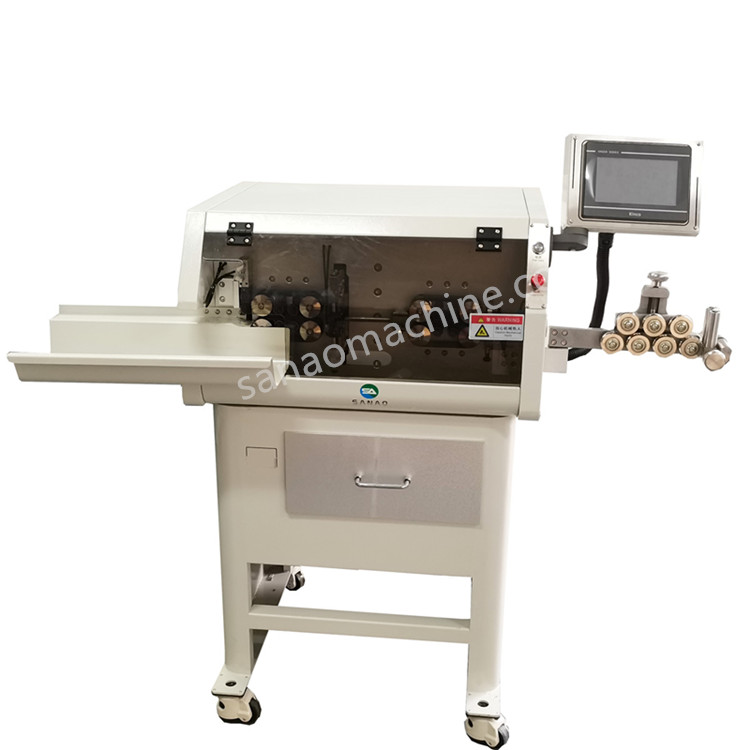

Wire cutting Stripping Machine with 1M Long outer jacket stripping length

Wire cutting Stripping Machine with 1M Long outer jacket stripping length

Model:SA-H03
Description: SA-H03 ,This model is designed for Wire cutting Stripping Machine with 1M Long outer jacket stripping length.or more than 1M outer jacket stripping length.can stripping outer jacket and inner core at one time . Standard model Head stripping: 10-120mm ,Tail stripping: 10-240mm, Extra add one long outer jacket stripping function , outer jacket can stripping more than 1MM length.
INQUIRY EMAIL

SA-H03 ,This model is designed for Wire cutting Stripping Machine with 1M Long outer jacket stripping length.or more than 1M outer jacket stripping length.can stripping outer jacket and inner core at one time . Standard model Head stripping: 10-120mm ,Tail stripping: 10-240mm, Extra add one long outer jacket stripping function , outer jacket can stripping more than 1MM length.

1.Full automatic Long Wire Cutting and Stripping Machine With Conveyor Belt

2.The machine designed for long wire stripping and cutting . Easy to collect, save time and effort,Our machine Collection and integration,the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.
Advantage:

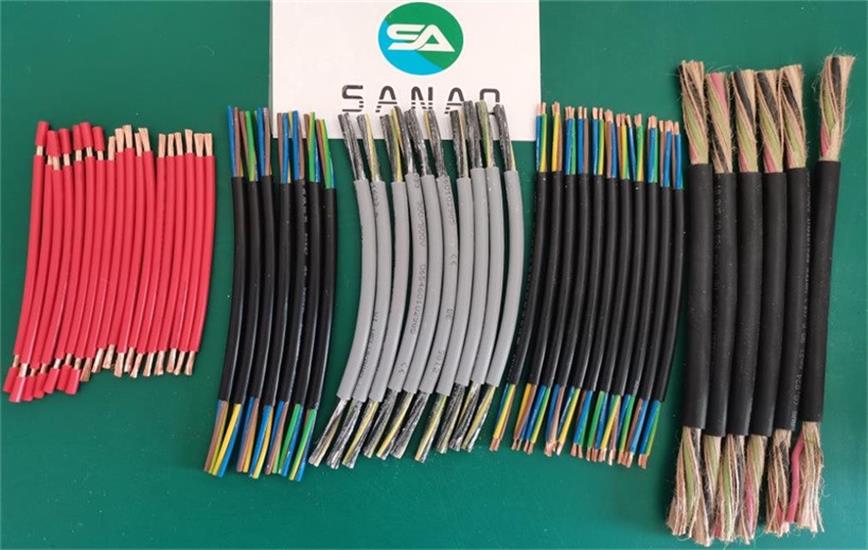

1.automatically cable cutting and stripping different wires size,stripping single wire and outer jacket of sheathed cable .
2.Drive mode: 16-wheel drive ,silent hybrid stepper motor, servo tool holder.
5.Belt feeding wires, no embossing and scratches
6.Head stripping: 10-120mm ,Tail stripping: 10-240mm
7.Inner Core Stripping Length：Head 1-120mm; Tail 1-240mm

Model	SA-H03	SA-H07
Conductor Cross-Section	1-30mm² （1-8 cores ）	10-70mm² ; 1-5 cores
Cutting Length	1-99999mm	200-99999mm
Cutting Length Tolerances	≤(0.002*L) mm	≤(0.002*L) mm
Jacket Stripping Length	Head 10-120mm; Tail 10-240mm	Head 30-200mm; Tail 30-150mm
Inner Core Stripping Length	Head 1-120mm; Tail 1-240mm	Head 1-30mm; Tail 1-30mm
Conduit Diameter	Φ16mm	Φ25mm
Production Rate	Single wire :2300pcs/h Sheath wire :800pcs/h (base on wire and cutting length)	single wire : 2800pcs/h Sheath wire 800pcs/h (base on wire and cutting length)
Display Screen	7 inch touch screen	7 inch touch screen
Drive Method	16 wheels drive	32 wheels drive
Wire Feed Method	Belt feeding wire, no indentation on cable	Belt feeding wire, no indentation on cable
