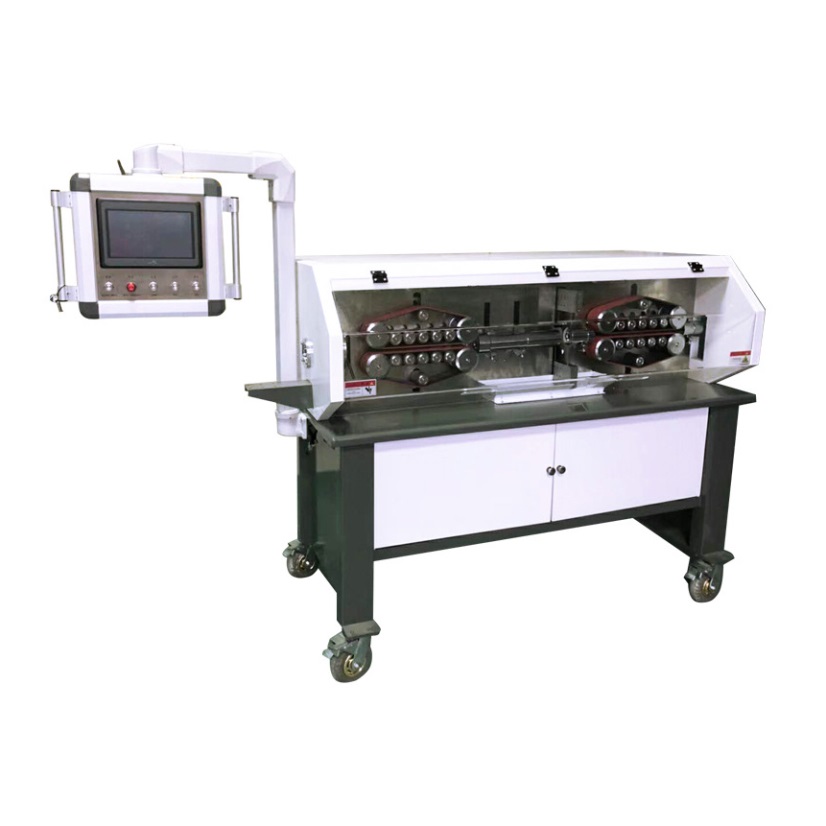

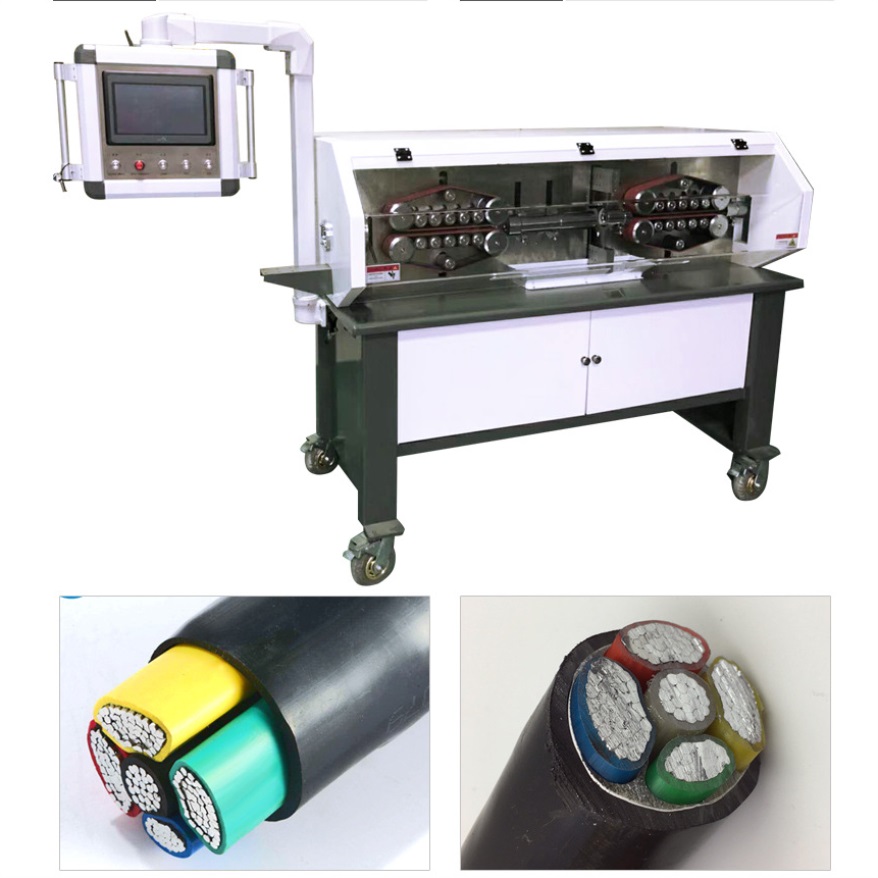

30-300mm2 Automatic cable wire stripping machine
Processing wire range: 1-70mm²,Full automatic large wire stripping and cutting machine, or stripping outer jacketed of sheathed cable (Max. 19 core) ,It’s Greatly Improved stripping speed and save labour cost.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy
Introduction：
1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

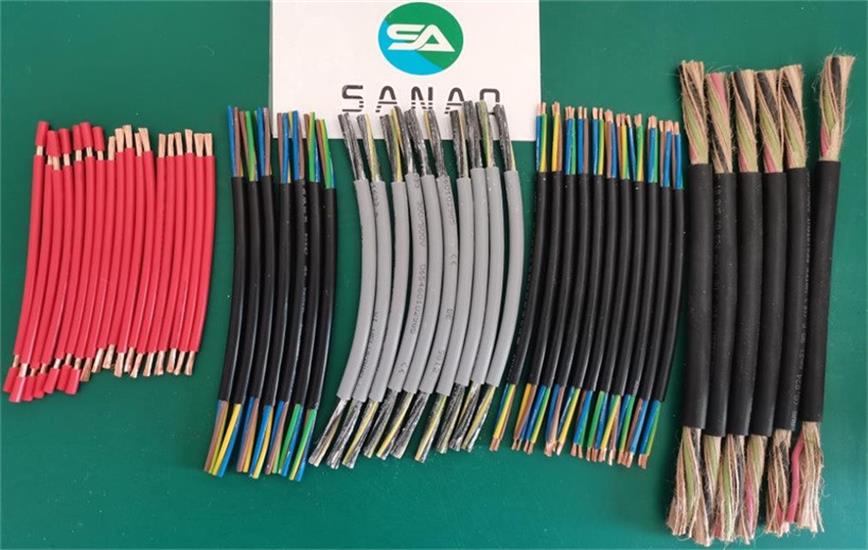

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
Model
SA-H300-S
Display
10" color touch screen
Stripping method
multi process stripping
Front-end stripping
Max. 0-800mm
Back-end stripping
Max. 0-300mm
Stripping range
30mm²-300mm²
Cutting length
300mm-99999mm
Cutting tolerance
0.002*L (L=cutting length)
Conduit inner diameter
15mm-45mm
Blade material
Quality HHS
Production
60-300PCS/H
