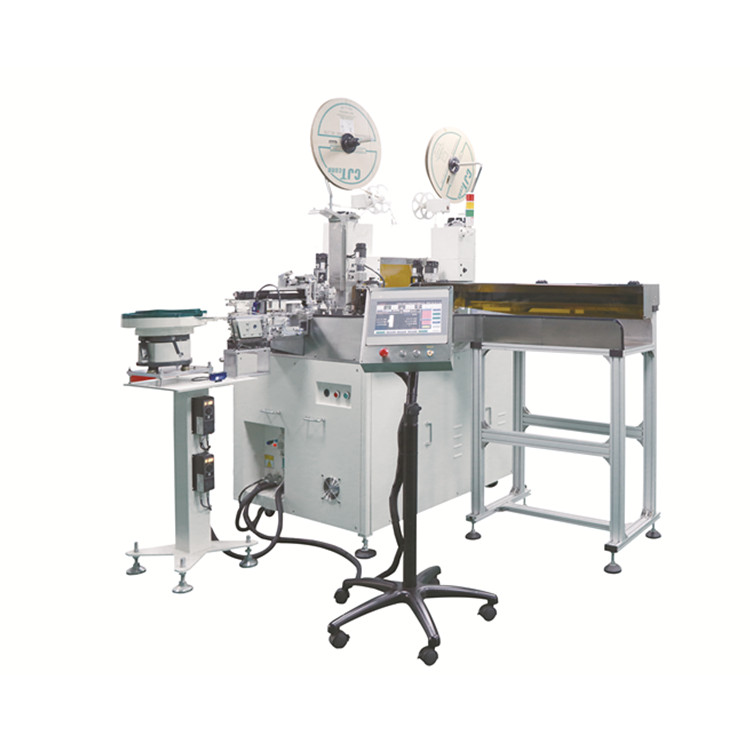

  • Model:SA-FS3500
  • Description: The machine can both side crimping and one side inserting , up to rollers of different colors wire can be hung one a 6 station wire prefeeder , the order can length of each color of wire can be specified in the program , the wire can be crimping , inserted and then fed by the vibration plate automatically , the crimping force monitor can be customized according to production requirement .
  • INQUIRY   EMAIL

The machine can both side crimping and one side inserting , up to rollers of different colors wire can be hung one a 6 station wire prefeeder , the order can length of each color of wire can be specified in the program , the wire can be crimping , inserted and then fed by the vibration plate automatically , the crimping force monitor can be customized according to production requirement .

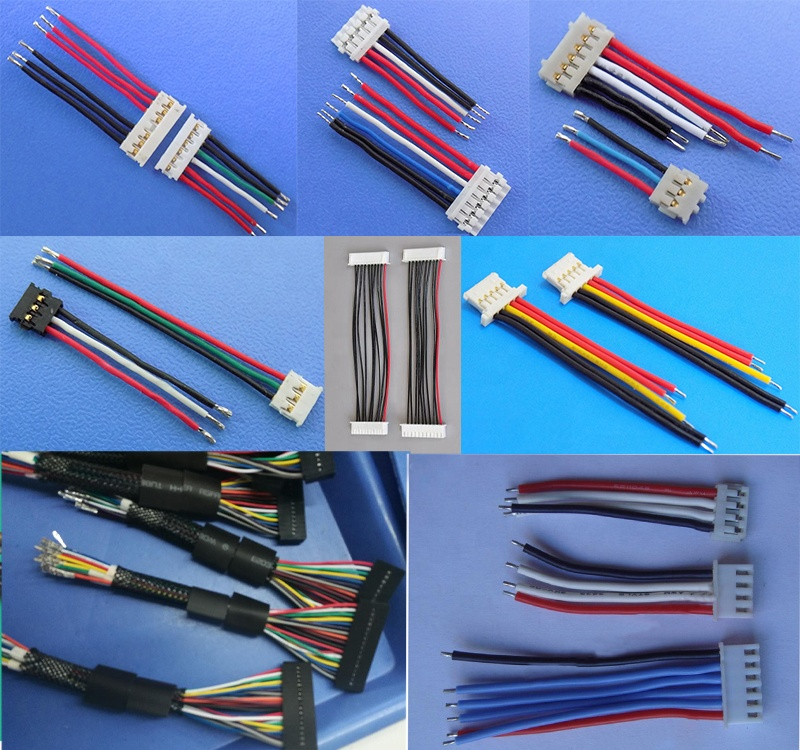

Feature

1. This full automatic machine is mainly used for wire cutting,both end stripping and crimping,wire reverse processing, and both end terminal connector inserting.

2.Single head with house assemble inserting and double ends with terminal crimping.

3.It's good choice for electrical cable wire processing and manufacturing industries

like automation area, automobile area, aerospace/aviation area, appliance industries etc.

Model

SA-FS3500

Functions

Wire cut,both end strip,one end dip tin, one end terminal insert, wire reverse process, auto tin feed, auto fluxing

Wire size

AWG#20 - #30Wire diameter below 2.5mm

Wire color

10 colorsOptional 210

Cut length

50 mm - 1000 mm (set unit as 0.1mm

Cut tolerance

Tolerance 0.1 mm +

Strip length

1.0mm-8.0mm

Dip tin length

1.0mm-8.0mm

Strip tolerance

Tolerance +/-0.1 m m

Crimp force

19600Nequivalent 2 ton

Crimp stroke

30mm

Universal crimp tool

Universal OTP crimp tool

Testing device

Low pressure,whether lack of wire,whether wire overload,clamping error,whether lack of terminal,terminal overload,terminal insert detect, pressure sensing device (optional),CCD visual inspection (optional)

Control mode

PLC control

Internal control voltage

DC24V

Power supply

Single phase ~AC200V/220V 50HZ 10A (110V/60Hz optional)

Compressed air

0.5MPaabout 170N/min

Working temperature range

15°C - 30°C

Working humidity range

30% - 80%RH No dew.

Warranty

1 yearExcept for consumables

Machine dimension

1560Wx1100Dx1600H

Net weight

About 800kg
