Auto Cut strip crimp inserting

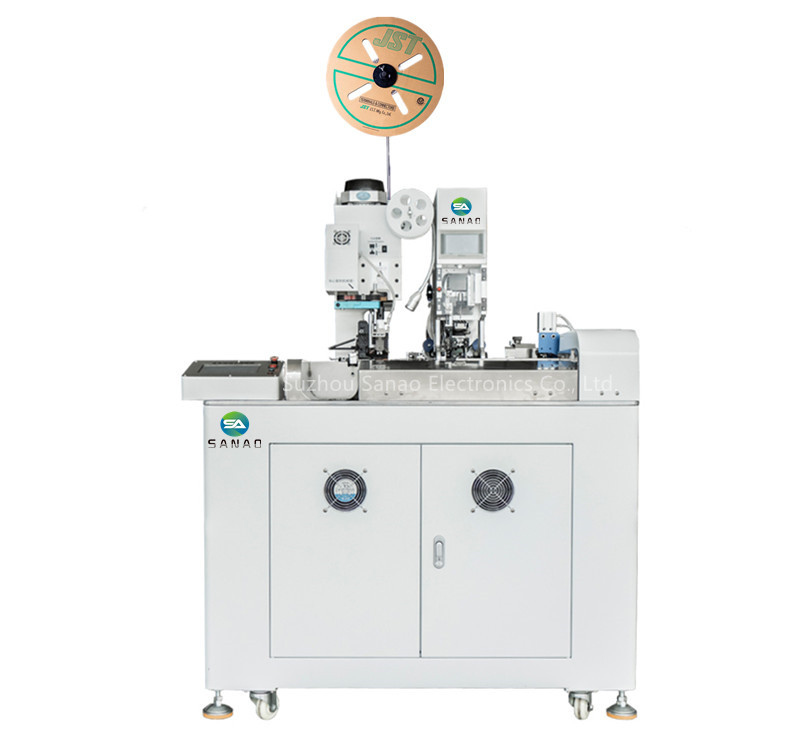

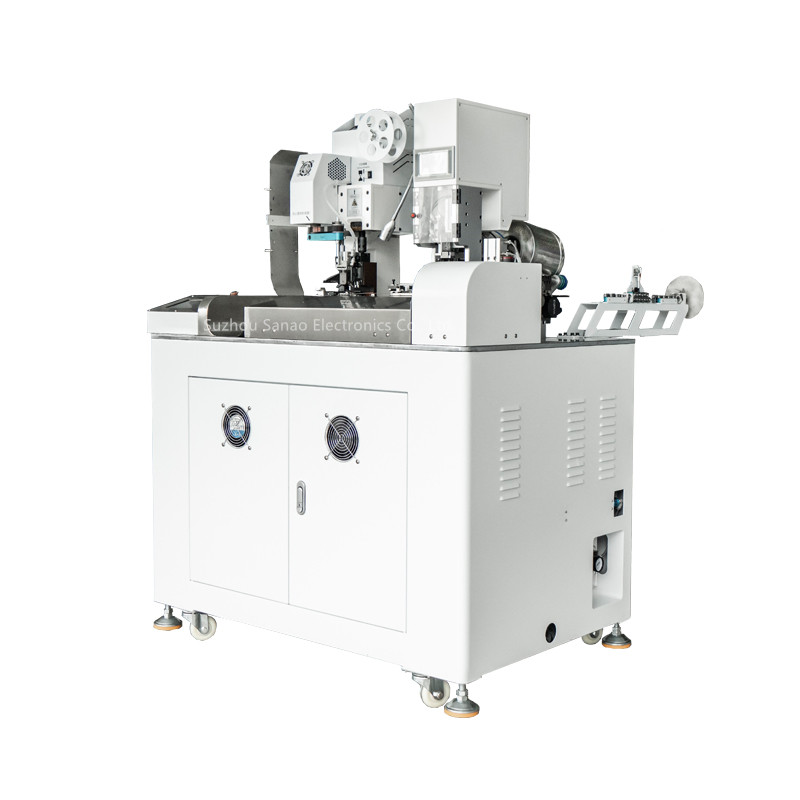

Single end crimping seal insert machine

Model:SA-FS2400

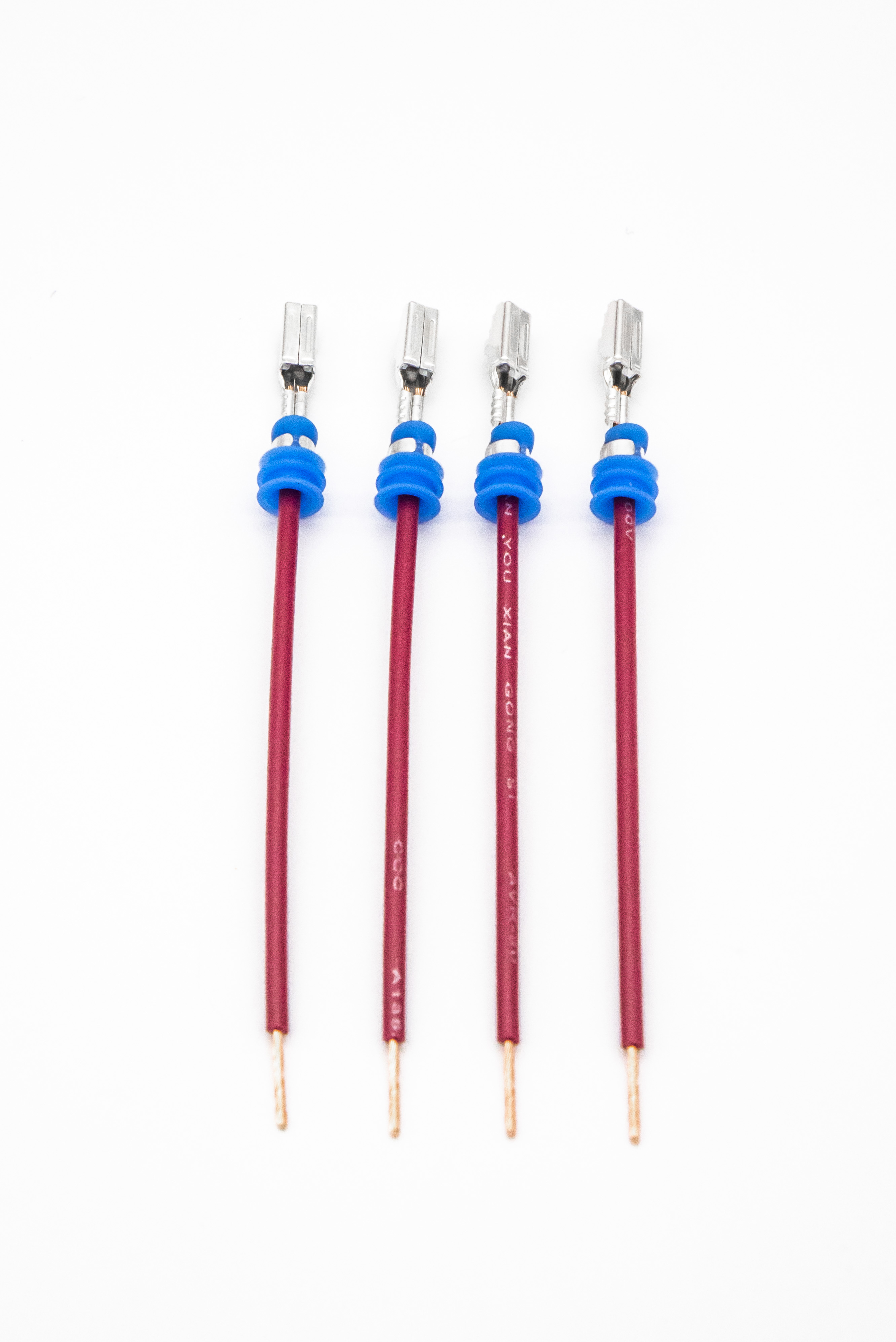

Description: SA-FS2400 is Design for Full Automatic Wire Seal Insertion Machine , One end seal insert and terminal crimping, The other end stripping or stripping and twisting . The machine have two strip and seal method , One is “seal insert first and then stripping”, Avoid conductor loose . The other is “Strip first and then seal insert ”,Suitable for hard conductor cable .
INQUIRY EMAIL

SA-FS2400 is Design for Full Automatic Wire Seal Insertion Machine , One end seal insert and terminal crimping, The other end stripping or stripping and twisting . The machine have two strip and seal method , One is “seal insert first and then stripping”, Avoid conductor loose . The other is “Strip first and then seal insert ”,Suitable for hard conductor cable .

Advantage :

1.English touch screen : Easy to operate , Directly setting stripping length and cutting length .

2. If cutting length ≥800mm, Suggest match one conveyor belt to collect wire .

3. It's availabe for both OTP horizontal mould and OPT and it can change to use quickly

4. The machine adopts "seal insert first and then stripping”, Avoid conductor loose.

Model	SA-FS2400	SA-FS2400-T
Power supply	AC220V/50/60HZ (110V/60Hz optional)	AC220V/50/60HZ (110V/60Hz optional)
Functions	Single end crimping seal insert machine	Single end crimping seal insert machine
Twisting	/	Have twisting
Capacity	3000 pieces/hour（Length within 100mm）	3000 pieces/hour（Length within 100mm）
Wire size	AWG#30-AWG#16	AWG#30-AWG#16
Cut length	50-9999 mm	50-9999 mm
Cut tolerance	Range of change: within 1mm + cut lengthx0.2%	Range of change: within 1mm + cut lengthx0.2%
Strip length	1.5-25 mm	1.5-25mm
Crimp force	2.0/3.0 Ton	2.0/3.0 Ton
Air pressure	4-6kgf (use clean dry air)	4-6kgf (use clean dry air)
Testing device	Whether lack of wire,whether lack of terminal crimping, wire plug seal detect,low pressure	Whether lack of wire,whether lack of terminal crimping, wire plug seal detect,low pressure
Machine dimension	800Wx1000Lx1500H mm	800Wx1000Lx1500H mm
Net weight	About 440 kg	About 440 kg
