Auto Cut strip crimp inserting

  • Automatic wire crimping Heat-shrink Tubing Inserting machine
  • Automatic wire crimping Heat-shrink Tubing Inserting machine
Automatic wire crimping Heat-shrink Tubing Inserting machineAutomatic wire crimping Heat-shrink Tubing Inserting machine

Automatic wire crimping Heat-shrink Tubing Inserting machine

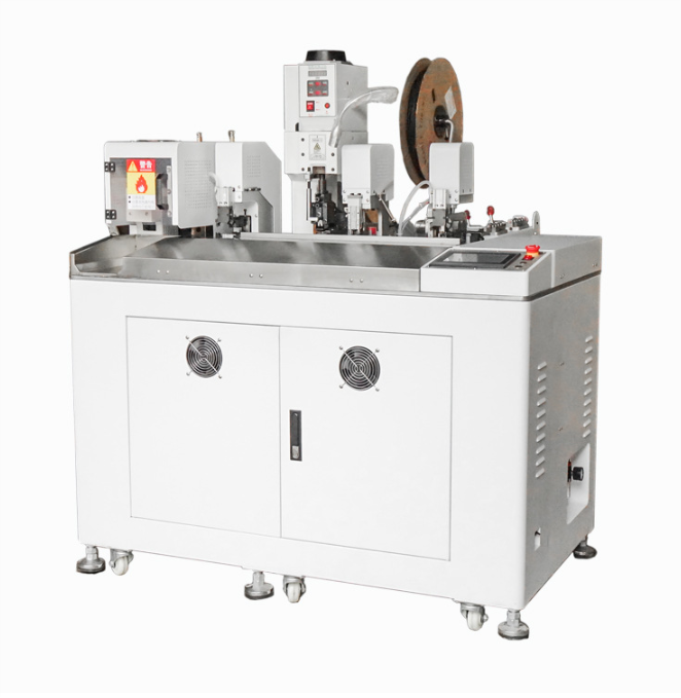

  • Model:SA-6050B
  • Description: This single-head heat-shrink tubing inserting and two-ends terminal crimping machine can process wire cutting, stripping, crimping and inserting heat-shrink tubing to specified position.
  • INQUIRY   EMAIL

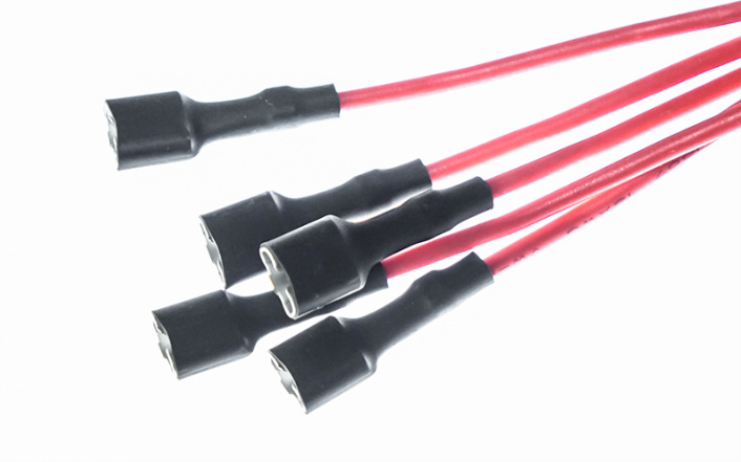

This single-head heat-shrink tubing inserting and two-ends terminal crimping machine can process wire cutting, stripping, crimping and inserting heat-shrink tubing to specified position.

Feature

1.Automatically processing wire cutting, stripping, crimping and inserting heat-shrink tubing to specified position.

2.It can realize wire double-end cutting, stripping, crimping or single end twisting and tinning

3.Single end heat-shrink tubing inserting to the designated position, and double-end/single-end crimping can be achieved simultaneous

4.Terminal visual inspection and terminal pressure inspection system can be added

Model

SA-6050B

SA-7050B

Name

Automatic single-head wear heat shrinkable tube terminal (doubles single wear)

Full-automatic double-headed heat-shrinkable tube terminal (doubles double wear)

Size

L1800 * W800 * H1600mm

L2660 * W800 * H1600mm

Cutting wire length

75-9999mm The shortest cut length varies according to the crimping tool used.

Functions

The wire is cut to size, both ends are stripped, single-ended and half-skinned, single-stranded single- and double-end crimped, automatically cut through the sleeve, automatically baked sleeve, all digital touch screen control

The wire is cut to size, both ends are stripped, single-ended and half-skinned, single-stranded single- and double-end crimped, automatically cut through the sleeve, automatically baked sleeve, all digital touch screen control

Work efficiency

1800-2200/H

Double wear 1800-2000 bars/H Single wear 3200-3500 bars/H

Configuration

1.TBI screw rod 2.SMC cylinder 3.Sasagawa Servo 4.HIVIN slide rail

Testing

Whether there is wire detection, heat shrink tube detection, wire knot detection, crimp terminal detection, air pressure detection.



















Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
