Automatic Testing machine

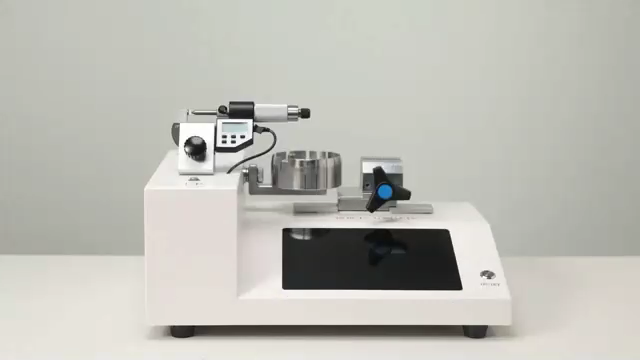

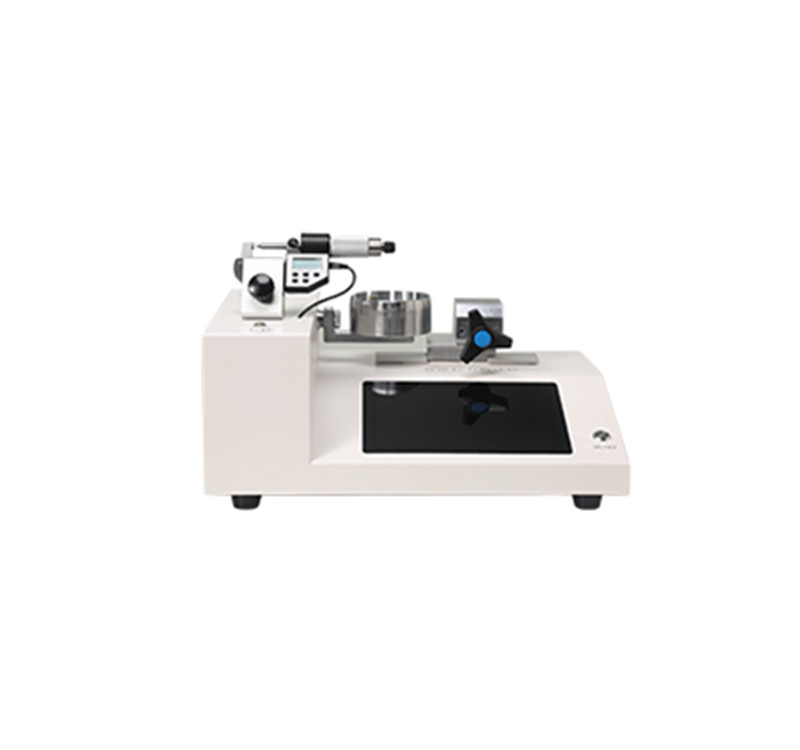

Automatic Wire Crimp Pull Tester with micrometer

Automatic Wire Crimp Pull Tester with micrometer

Model :SA-DFTT50

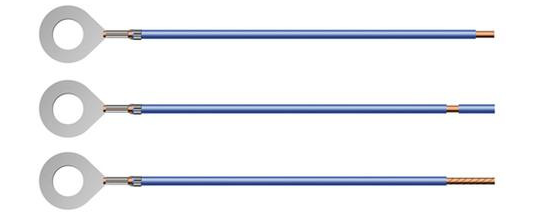

Description: The motorized wire pull tester measures pull-off forces of up to 100 kg on crimped terminals. Have two model SA-DFTT50 (Max.50kg ) and SA-DFTT100 (Max.100kg ), The machine can perform destructive or optionally Non-destructive testing, such as pulling to a load or maintaining a load for a specified period of time, Equipped with OK and NG alarm sounds to help identify non-conforming samples.
INQUIRY EMAIL

The motorized wire pull tester measures pull-off forces of up to 100 kg on crimped terminals. Have two model SA-DFTT50 (Max.50kg ) and SA-DFTT100 (Max.100kg ), The machine can perform destructive or optionally Non-destructive testing, such as pulling to a load or maintaining a load for a specified period of time, Equipped with OK and NG alarm sounds to help identify non-conforming samples.

advantage

1. Match a micrometer while measuring the height and wide of the terminals, and the data can be imported into the machine

2.Automatically generate test reports, including information such as Terminal number , test results, test time, operator, etc ,The test results cannot be changed, effectively assisting the company in digital management. Eliminate falsification

3.MES interface: There is a unified programming interface , and MES manufacturers can directly connect with the tension machine

4.USB interface: it can be connected to a USB drive to export test reports,Report format is Excel or CSV.

Model	SA-DFTT50	SA-DFTT100
Function	Terminal wire tensile tester	Terminal wire tensile tester
Testing range	Max.500N (0-50kg)	Max. 1000N (0-100kg)
Testing accuracy	0.20%	0.20%
Tensile testing stroke	0-30mm	0-30mm
Report format	Excel or CSV	Excel or CSV
