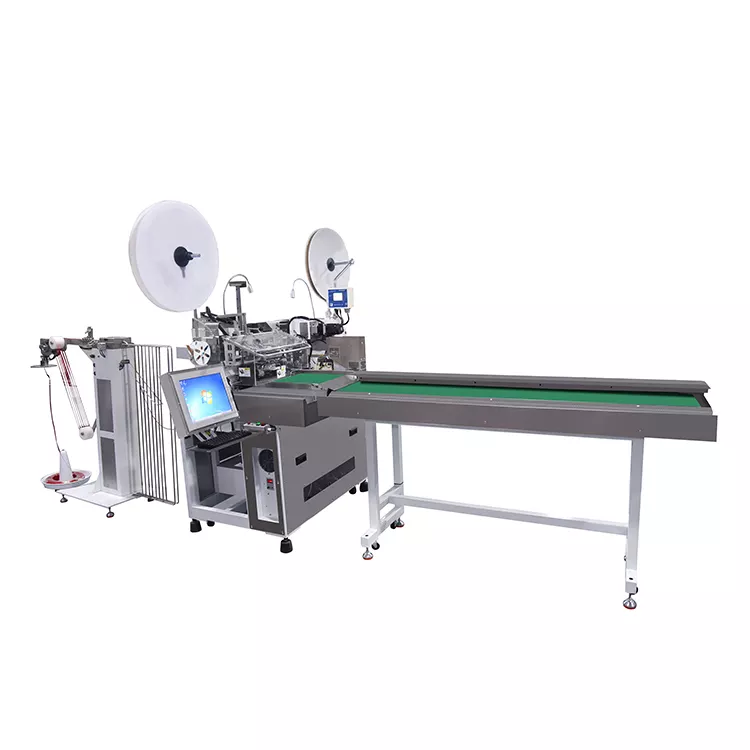

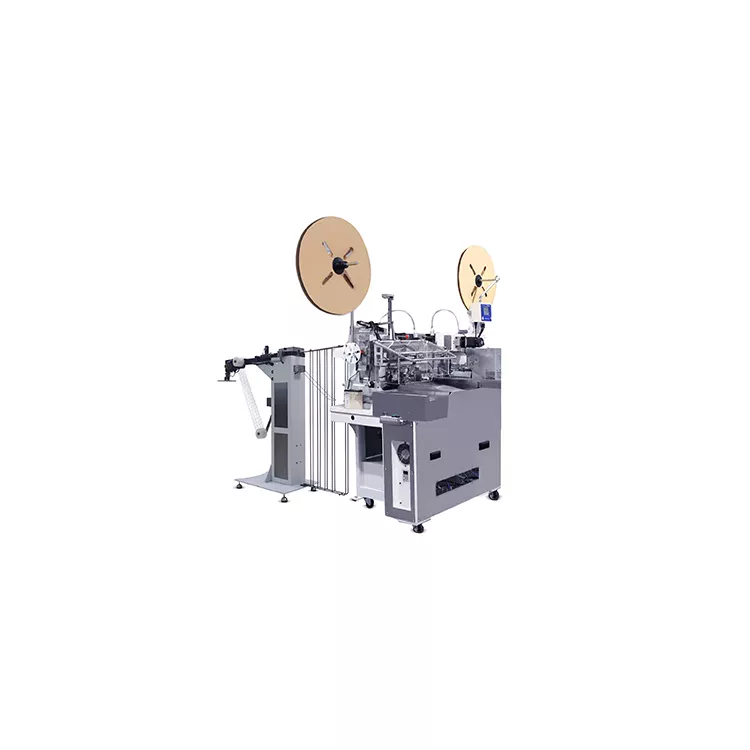

SA-FSZ332 is Fully automatic Wire Crimping Machine With Waterproof Sealing Station,two head stripping seal inserting crimping machine ,It adopts Mitsubishi servo that one machine total have 9 servo motors,so stripping, rubber seals inserting and crimping very accurate,Machine with English color screen is very easy operate,and the speed can reach 2000 pieces/hour.it’s Improved wire process speed and save labor cost.
Advantage :
1.Waterproof plug is automatically placed on the guide rail
2.High precision customized applicator for quality crimping assurance

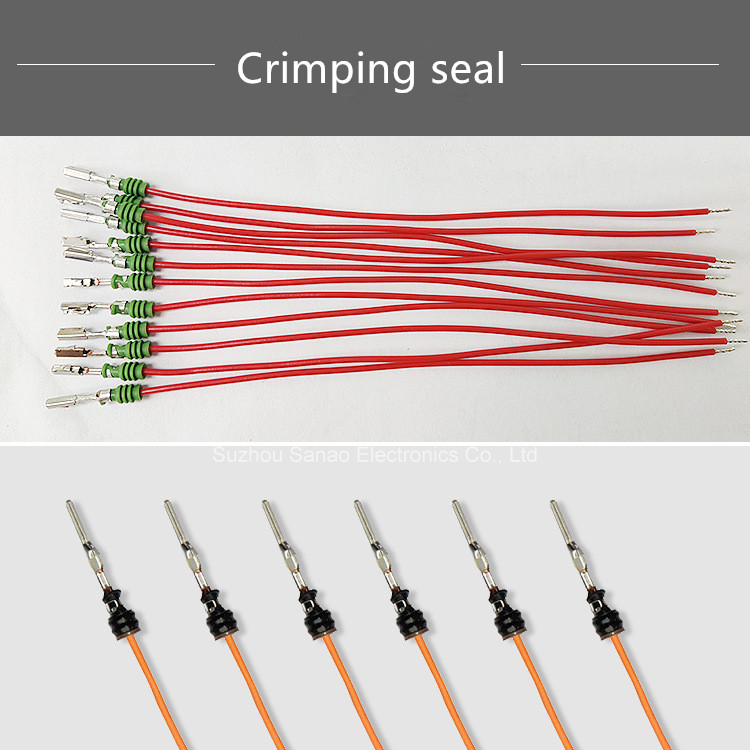

3.Waterproof Bolt Device, Auto feed waterproof seals with easy changeable feeding tracks for different sizes of seal application
Model
SA-FSZ332
Applicable wire range
0.2-2.5mm²
Stripping length
0.1-15mm
Cut precision
±0.1 (0.1+0.005*L) mm, L=cut length
Cutting length
35-9999mm(set 1mm as the unit)
Crimp capacity
3T
Control method
Servo motor
Wire type
AV.AVS.AVSS.CAVUS,KVKIV,UL
Power
220V/110V/50/60HZ
Display language
Chinese/English
Waterproof plug
Waterproof(Double end /Single end insertion)
External dimensions
1200mm*1100mm*2300mm (length, width and height)
Weight
525KG
CFM
Optional
Power cord plug
European, USA, Chinese plug
