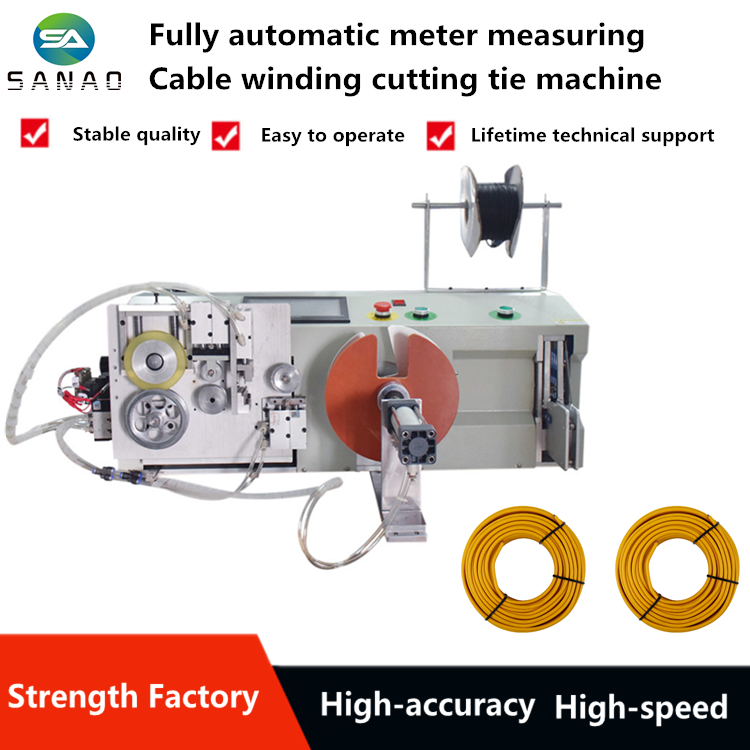

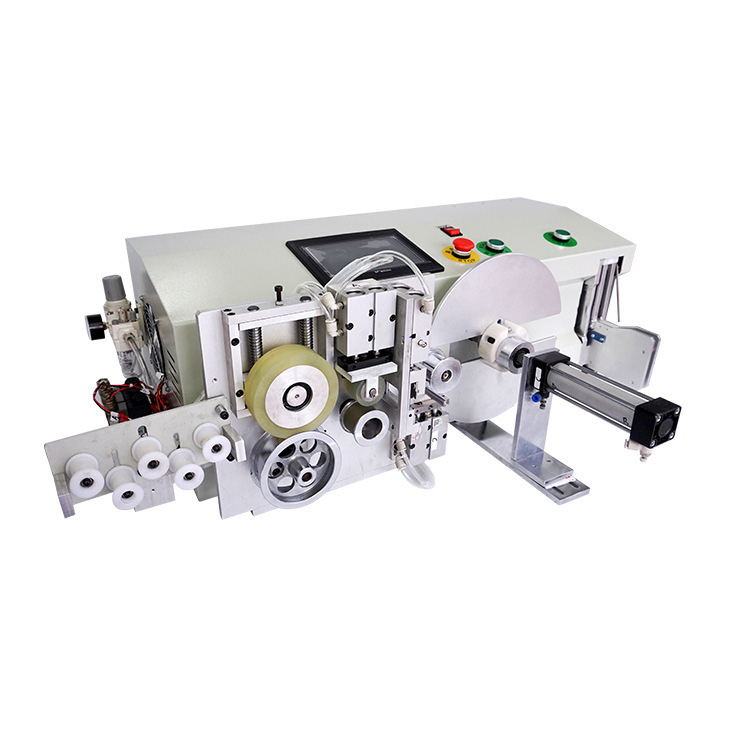

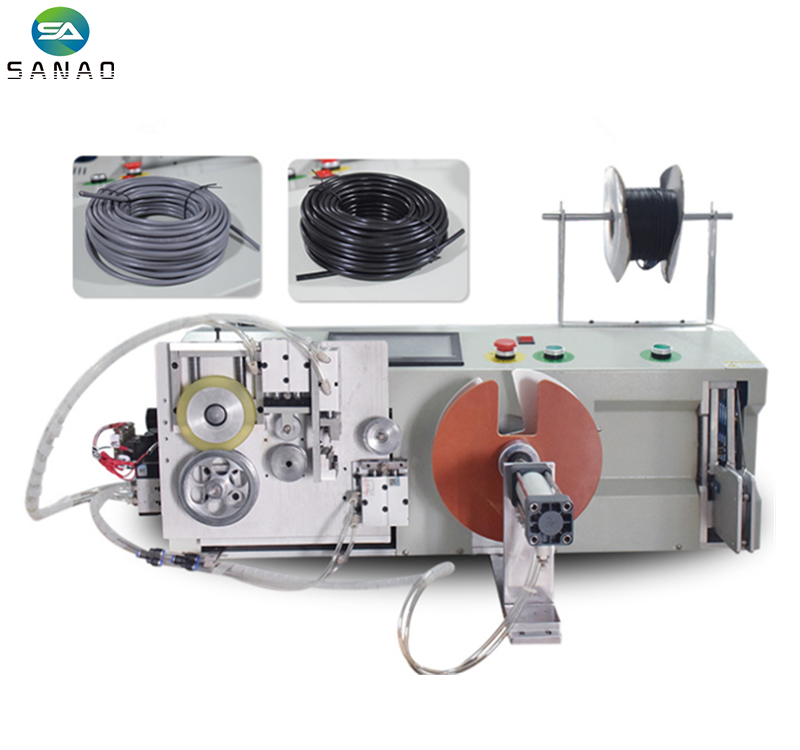

Automatic cable fixed length cutting winding machine SA-C01

  • Description: Automatic calculating the cable length, coil making and cutting. if needed, Online and offline two types machine can be chosen. You can connect coiling machine to your cable production line successfully, to achieve online cutting winding tying .
  • INQUIRY   EMAIL

Automatic calculating the cable length, coil making and cutting. if needed, Online and offline two types machine can be chosen. You can connect coiling machine to your cable production line successfully, to achieve online cutting winding tying .

Features:
1.added functions of automatically metering, cutting based on
functions of winding and tying it originally has.
2. Equipped with four motors for winding cable
3. Use PLC computer programmed touch screen to control metering length, cable tie length, automatically cutting cable tie, cable tie twisted together.
4. Can set how many times of tying round the cable coil and winding speed arbitrarily.

5.Low cost and high efficiency.

Model

SA-C01

SA-C02

Available Wire Size

1-8mm

1-10mm

Winding inner Dia

50-280mm(customizable)

50-280mm(customizable)

Max Coil Weight

2.5 kg

3 kg

Tying Dia

18-45mm (40-80 can customizable)

18-45mm

Power Supply

110/220VAC,50/60Hz

110/220VAC,50/60Hz

Power Supply

2500W

3000W
