Automatic tying machine

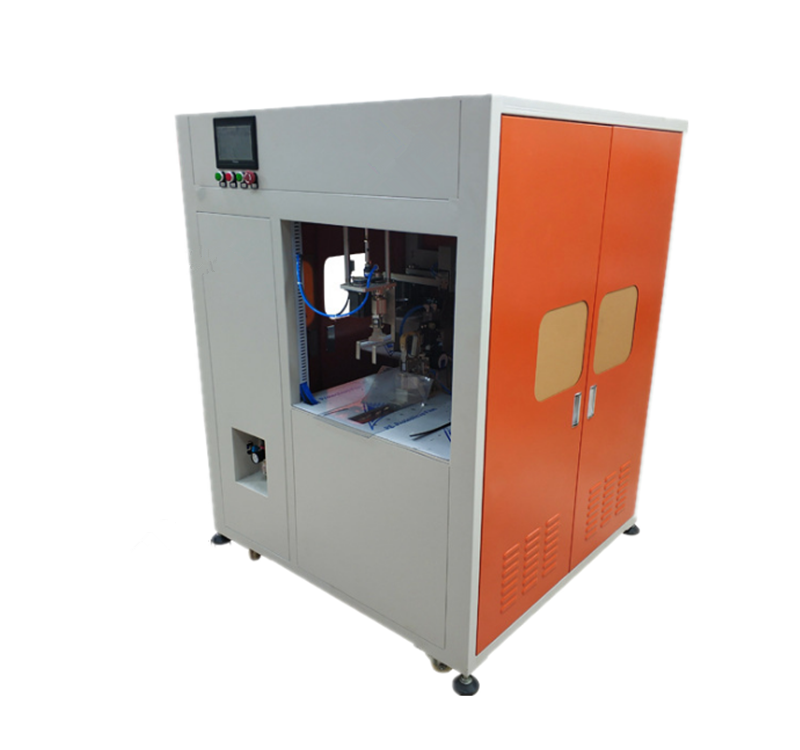

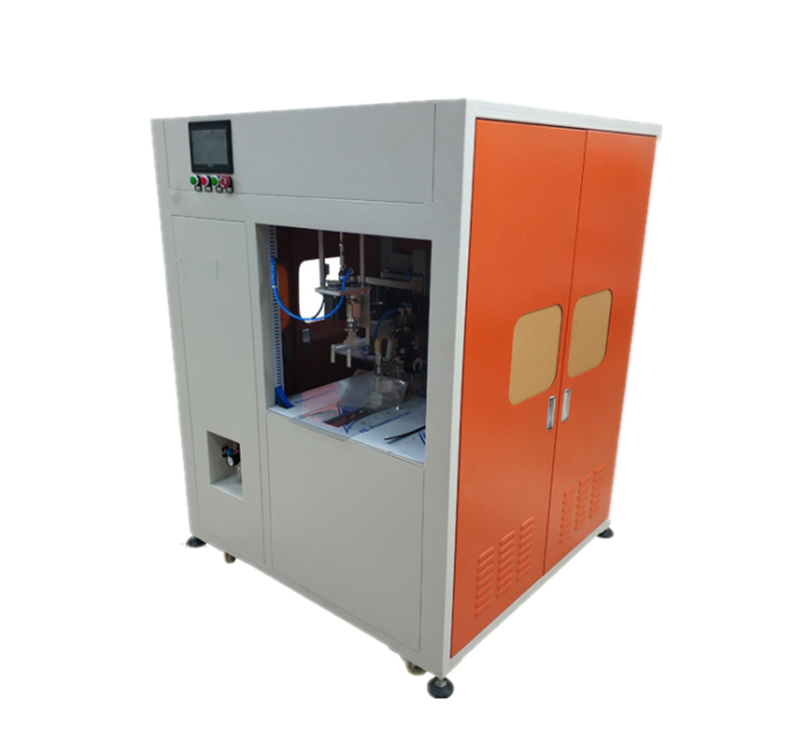

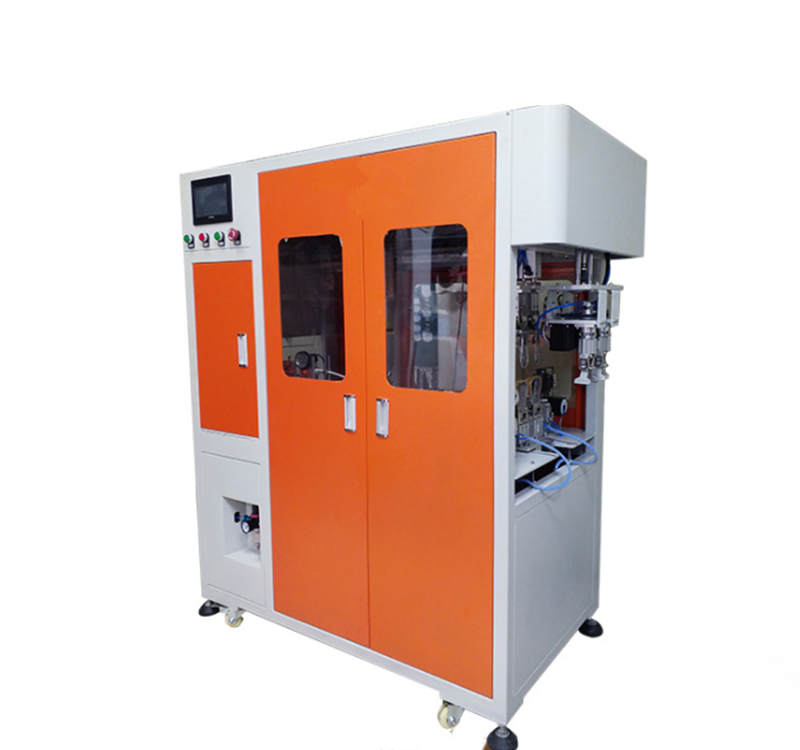

Automatic cable / tube measure cutting coil tying machine

Automatic cable / tube measure cutting coil tying machine

SA-CR0
Description: SA-CR0 is full automatic cutting winding tying cable for 0 shape,Length can measure cutting , Coil inner diameter can adjust , Tying length can be setting on machine , This is full automatic machine that not t need people to operate is It’s Greatly Improved cutting winding speed and save labor cost.
INQUIRY EMAIL

SA-CR0 is full automatic cutting winding tying cable for 0 shape,Length can measure cutting , Coil inner diameter can adjust , Tying length can be setting on machine , This is full automatic machine that not t need people to operate is It’s Greatly Improved cutting winding speed and save labor cost
Features:
Automatic cutting, winding and tying machine to figure 8 single tying
2.Adopt the original SMC cylinder imported from Japan and a full set of pneumatic components from Taiwan AirTAC.
3.Vertical door, high security, maintenance and debugging is convenient and quick. The overall appearance is more stereoscopic and more beautiful;
4.Up to 700 pieces / hour, It’s Greatly Improved stripping speed and save labor cost
5.Easy to operate, maintain and debug;
6.The finished product is beautiful, generous, neat and easy to pack.

Model	SA-CRO
Applicable wire	USB/DC/power cable
Winding appearance	Round shape
Final circle diameter	＜50mm
Theoretical yield	≤700pcs/H
Winding distance	80-180mm ( wire ) , 140-220mm ( tube )
Head length	40-130mm
Tail length	＞40mm
Applicable cable tie	Plastic coated iron core
Pressure requirements	0.4-0.6Mpa
