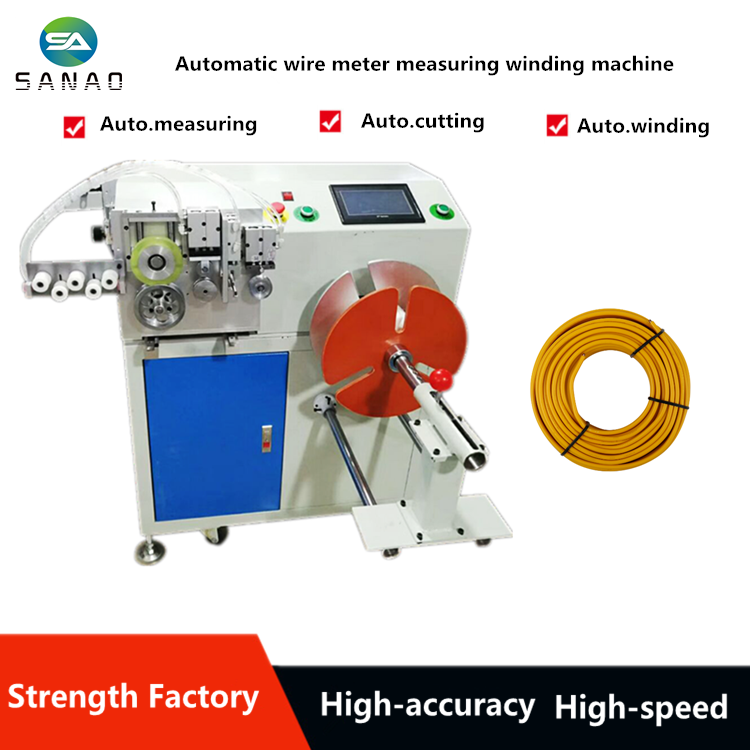

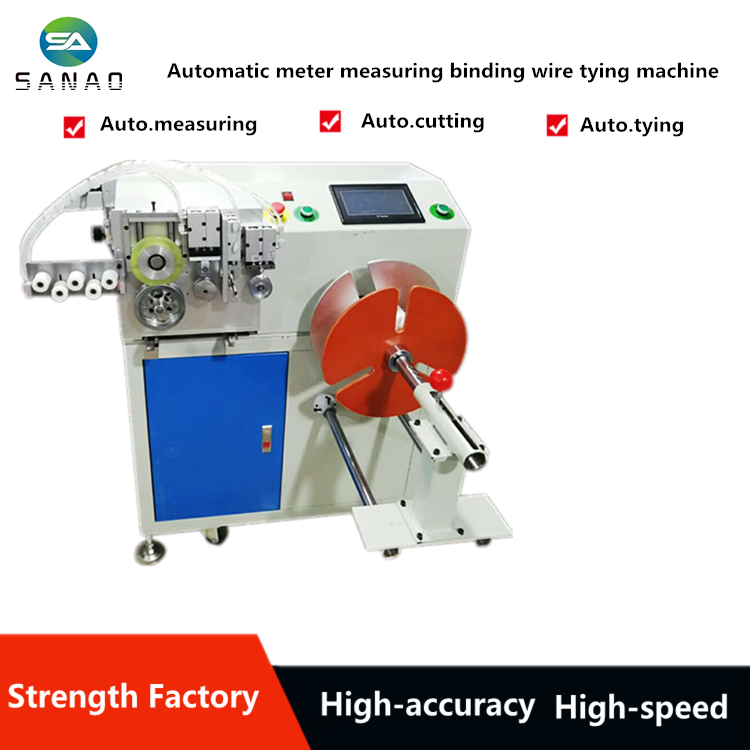

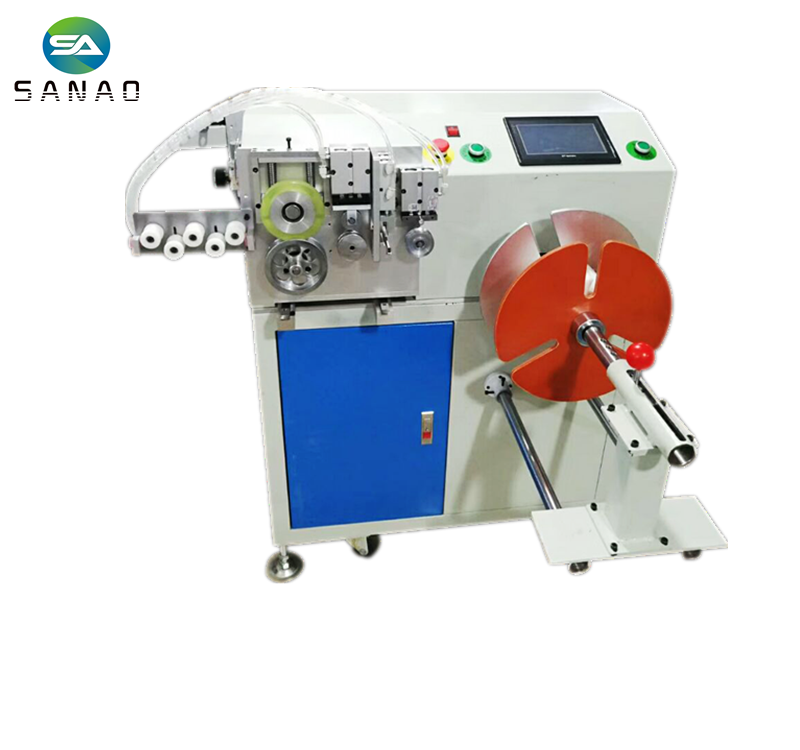

Automatic calculating the cable length, coil making and cutting. if needed, Online and offline two types machine can be chosen. You can connect coiling machine to your cable production line successfully, to achieve online cutting winding tying
Features:
1.added functions of automatically metering, cutting based on
functions of winding and tying it originally has.
2. Equipped with four motors for winding cable
3. Use PLC computer programmed touch screen to control metering length, cable
tie length, automatically cutting cable tie, cable tie twisted together.
4. Can set how many times of tying round the cable coil and winding speed
arbitrarily.
5.Low cost and high efficiency.
Model
SA-QCZ100
SA-QCZ200
SA-QCZ300
Type
Floor-standing without tying function
Floor-standing no tying function
Floor-standing no tying function
Tying diameter
/
18-45MM
40-80MM
Available Wire Size
1-8mm ( can custom)
Max Coil Weight
3 kg
Winding Inner Dia
50-300mm
Winding Out Dia
Standard 320mm; Max 350mm
Winding Speed
1-13 cycle/s
Power Supply
110/220VAC,50/60Hz
Power
500W
Dimensions
100*45*80cm
Weight
170 kg
