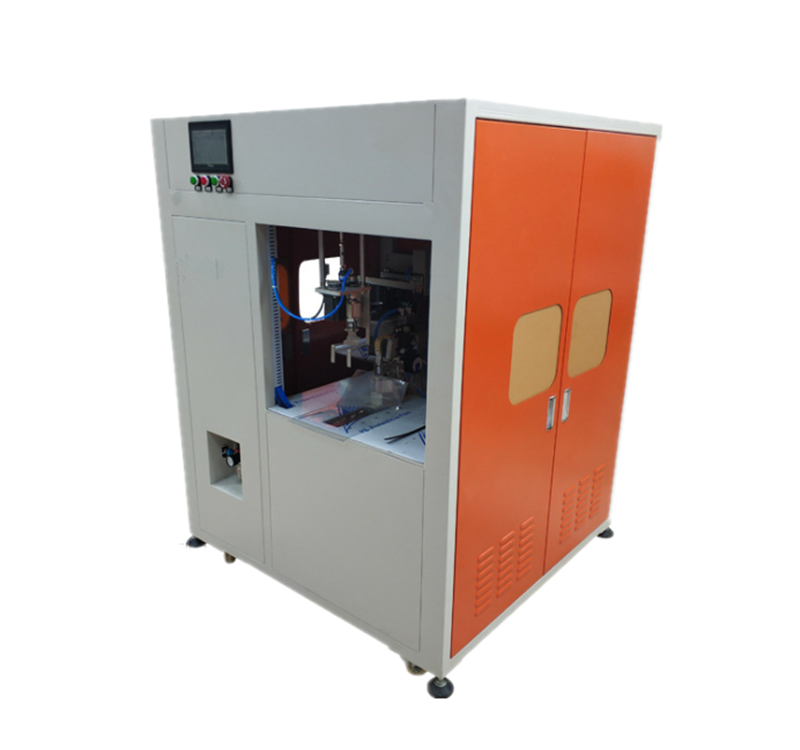

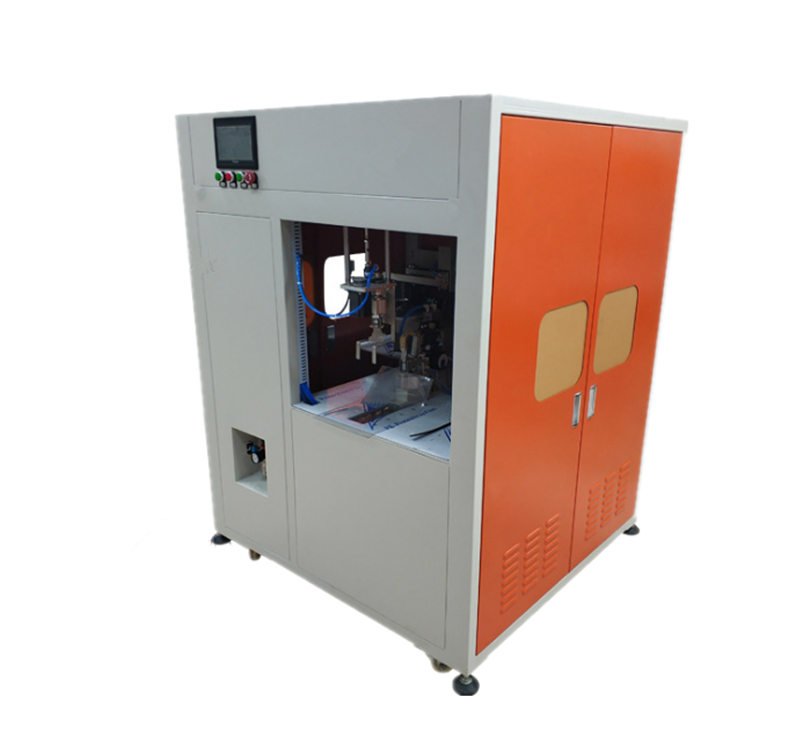

Automatic power cable winding double tying machine for wire SA-CR8

  • Description: Automatic power cable winding double tying machine for wire This machine suitable for automatic winding AC power cable, DC power core, USB data wire, video line, HDMI high-definition line and other transmission lines, It’s Greatly Improved stripping speed and save labor cost
  • INQUIRY   EMAIL

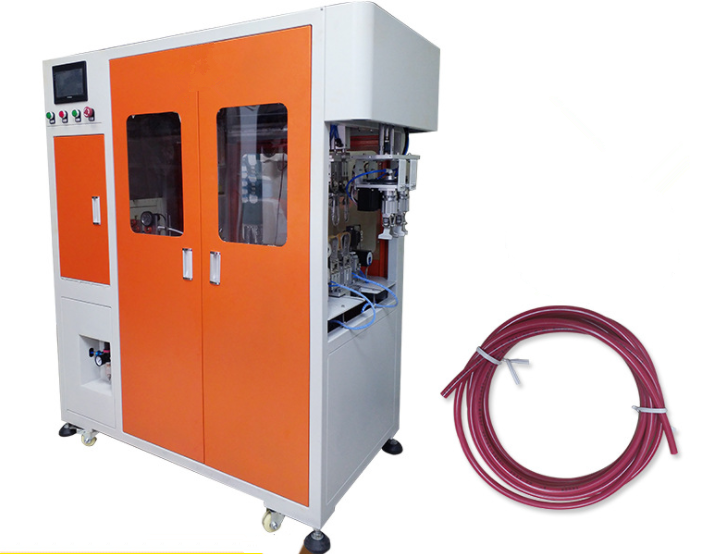

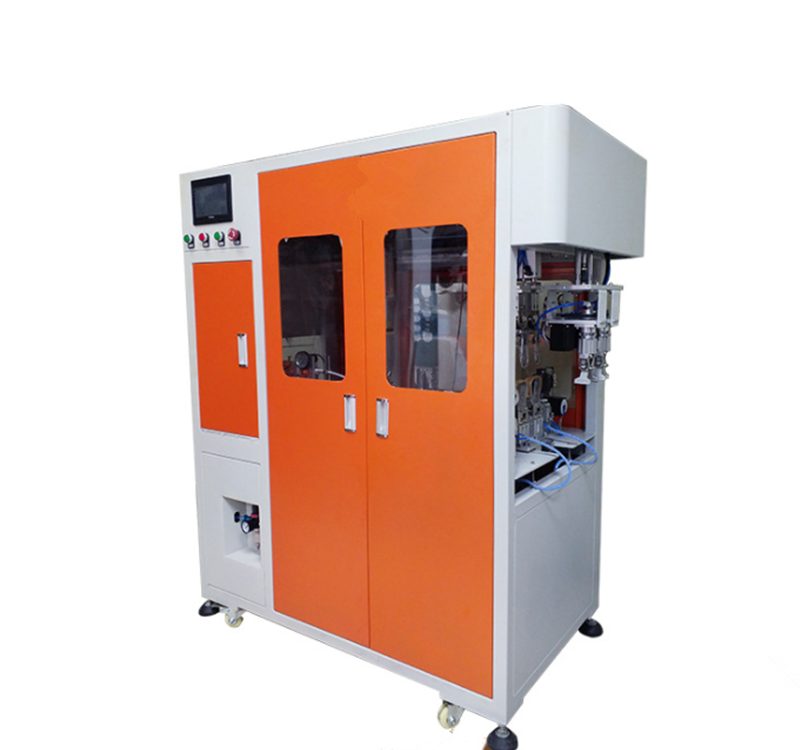

Automatic tube winding machine for water hose

This machine suitable for automatic winding water tube hose ,AC power cable, DC power core, USB data wire, video line, HDMI high-definition line and other transmission lines, It’s Greatly Improved stripping speed and save labor cost.

Features:

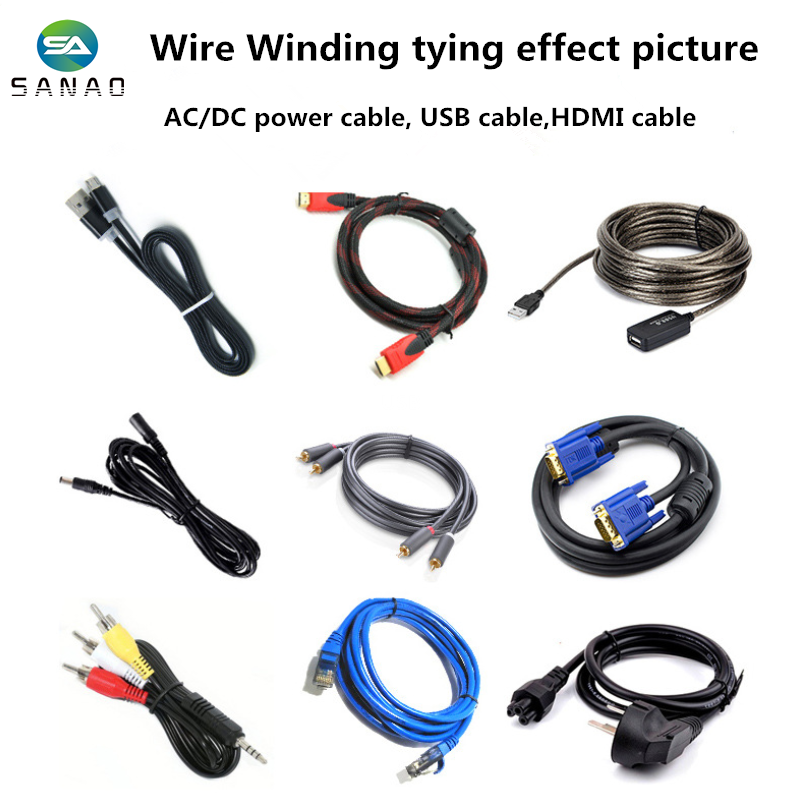

1.Apply to single-end / double- ends ,AC power cord,DC power cord , Video line,HDMI ,USB wires

2.Auto and fast binding after Stepping on foot switch ,

3.Wire length(Head length, Tail length,Total binding length) ,  coil number,speed,quantity can be

set .

4.Easy to operate

5.Save labor cost and improve output.

6.Adopted PLC program control , 7 inches touch screen for setting parameters.

7.Provide personalized customization according to different requirements

Model

SA-CRO

SA-CR8

SA-CRO-3D

Applicable wire

USB/DC/power cable

USB/DC/power cable

3D printing materials

Winding appearance

Circle

Figure 8

Circle

Final circle diameter

50mm

45mm

45mm

Theoretical yield

700pcs/H

700pcs/H

600pcs/H

Winding distance

80-180mm

200-350mm

80mm-200mm

Head length

40-130mm

40-150mm

40mm-130mm

Tail  length

40mm

40-150mm

40mm

Applicable cable tie

Plastic coated iron core

Plastic coated iron core

Plastic coated iron core

Pressure requirements

0.4-0.6Mpa

0.4-0.6Mpa

0.4-0.6Mpa
