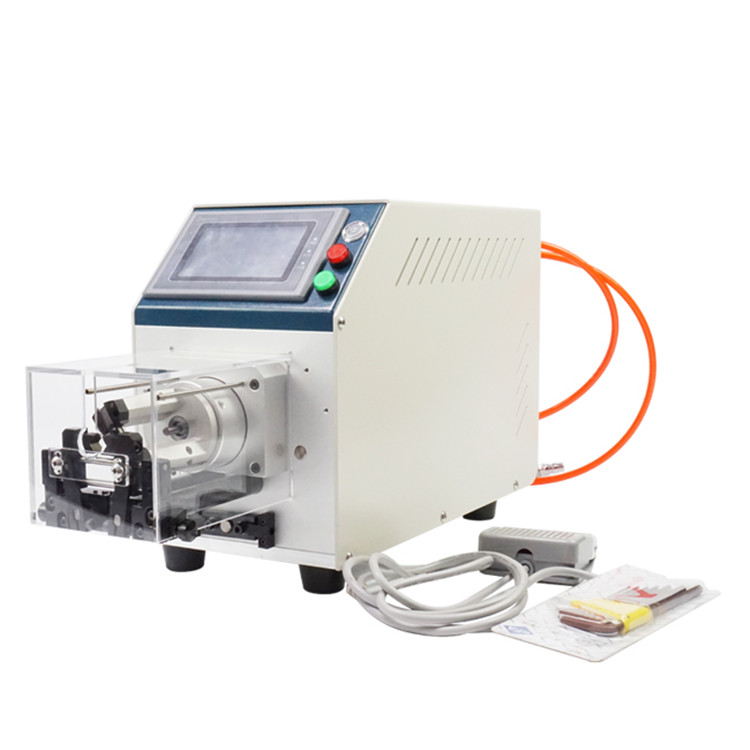

Automatic small Coaxial Cable Cutting Stripping machine

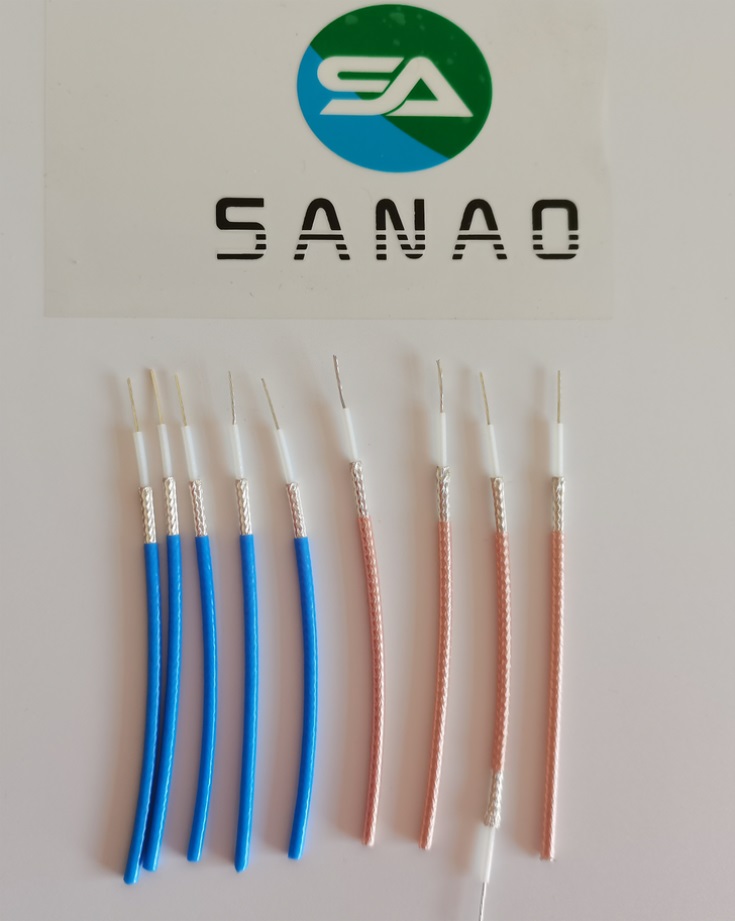

Processing wire range: 0.8-7mm, Full automatic stripping and cutting coaxial cable,suitable for precision machining of various flexible thin coaxial cables in communication and RF industries.It’s Greatly Improved stripping speed and save labor cost.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors,lamps and toy
Introduction:
1. Mainly used for the processing of coaxial cables and special single wires, using the most advanced rotary tool holder to improve accuracy and speed.
2. LCD display.
3. With a specific axis positioning device and a rotary tool method, up to 9 layers can be stripped.
4. Corresponding to various sizes and sheath wires without changing the blade.
|
Model |
SA-6806A |
SA-8608 |
|
Available Wire Dia |
0.8-7mm |
2-18mm |
|
Stripping Length |
≤58mm |
≤90mm |
|
Blade Quantity |
2 pieces |
4 pieces |
|
Production Rate |
700-1200pcs/h |
400-600pcs/h |
|
Stripping Layers |
Max 9 layers |
Max 9 layers |
|
Drive Method |
Motor / ball screw drive |
Motor / ball screw drive |
|
Display Screen |
Chinese / English touch screen |
Chinese / English touch screen |
|
Power Supply |
110/220VAC, 50/60Hz |
110/220VAC, 50/60Hz |
|
Power |
240W |
600W |
|
Switch mode |
Manual switch / contact switch / foot switch |
Foot switch |
|
Dimensions |
60*18.5*28cm |
80*31*49cm |
|
Weight |
24kg |
54kg |
