Coaxial Cable stripping machine

  • Max.35mm High Voltage Energy cable stripper equipment
  • Max.35mm High Voltage Energy cable stripper equipment
  • Max.35mm High Voltage Energy cable stripper equipment
Max.35mm High Voltage Energy cable stripper equipmentMax.35mm High Voltage Energy cable stripper equipmentMax.35mm High Voltage Energy cable stripper equipment

Max.35mm High Voltage Energy cable stripper equipment

  • SA-3530
  • Description: Processing wire range: Max 35mm ,.SA-3530 High Voltage Cable Coaxial Wire Stripping Machine ,Max. stripping outer jacket 300mm, Maximum wire diameter 35MM
  • INQUIRY   EMAIL

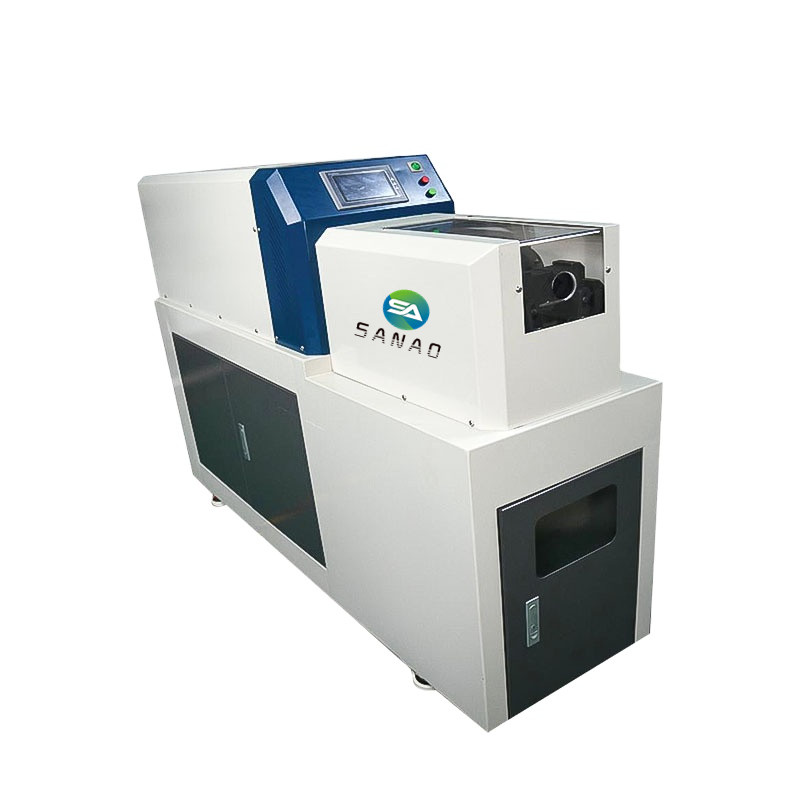

New Energy Charging Cables Stripping machine High Voltage Cable Coaxial Wire Stripping Machine

Processing wire range: Max 35mm ,SA-3530 High Voltage Cable Coaxial Wire Stripping Machine ,Max. stripping outer jacket 300mm, Maximum machining diameter 35MM
Introduction:
1.SA-3530 Max. stripping outer jacket 300mm, Maximum machining diameter 35MM

2.This machine is designed for extra thick and high quality cables such as new energy charging guns, and can be stripped up 1m ( Other length can customized ).

3. the cable strips processed by this model are neat and not hurt. And the inner layer the appearance is more perfect.

4.The cable is stripped neatly and does not damage the inner layer. Touch screen operation, convenient to set parameters.

Model

SA-3530

Product name

Charge gun cable stripping machine

Maximum machining diameter

8-35mm

Cutting depth unit

0.01mm

Maximum stripping length

300mm

Power supply

AC110/220V 50hz/60Hz

pressure

0.5Mpa

Power supply

500w

Blades Materials

4 pieces of imported high speed steel
