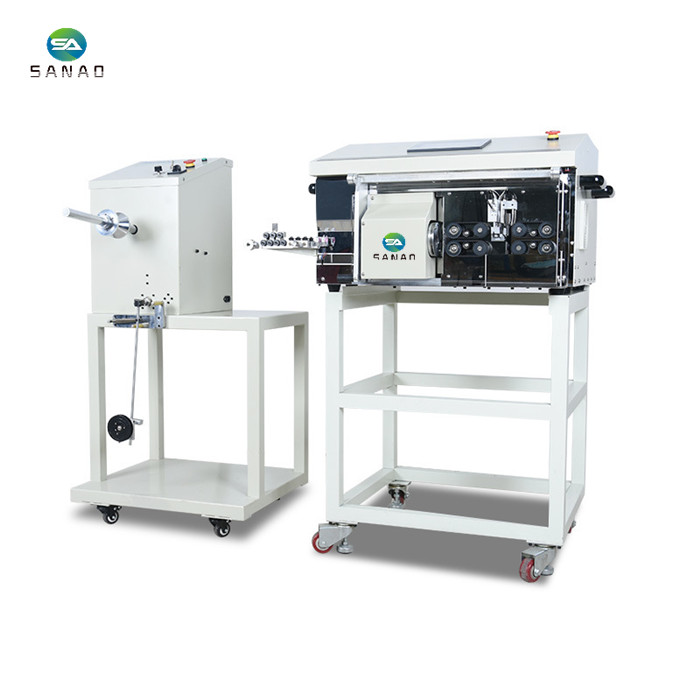

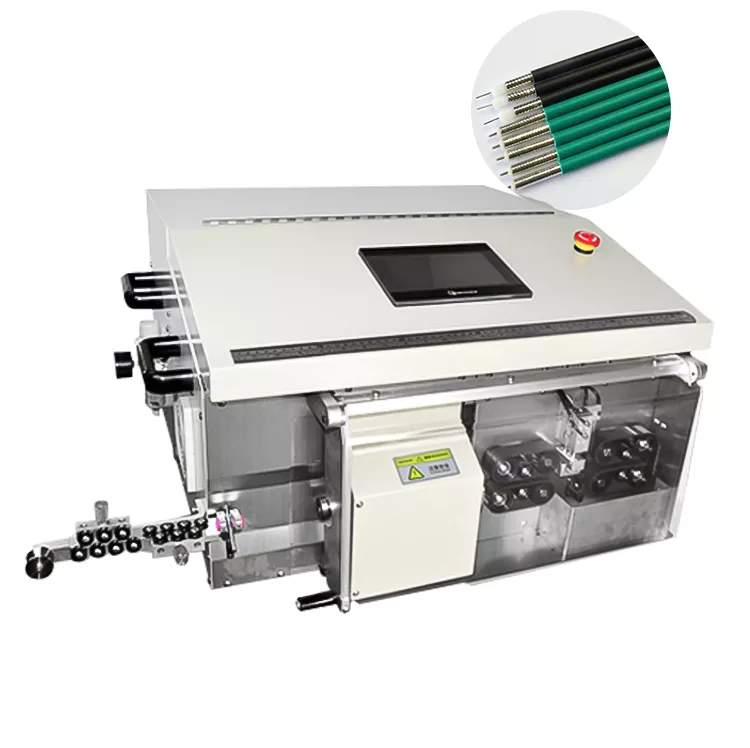

Coaxial Cable stripping machine

  • Fully-auto Coaxial Wire Cutting Stripping Machine
  • Fully-auto Coaxial Wire Cutting Stripping Machine
  • Fully-auto Coaxial Wire Cutting Stripping Machine
Fully-auto Coaxial Wire Cutting Stripping MachineFully-auto Coaxial Wire Cutting Stripping MachineFully-auto Coaxial Wire Cutting Stripping Machine

Fully-auto Coaxial Wire Cutting Stripping Machine

  • SA-DM-9800
  • Description: This series machines are designed for fully automatic cutting and stripping coaxial cable. SA-DM-9600S is suitable for semi-flexible cable, flexible coaxial cable and special single core wire processing; SA-DM-9800 is suitable for precision of various flexible thin coaxial cables in communication and RF industries.
  • INQUIRY   EMAIL


This series machines are designed for fully automatic cutting and stripping coaxial cable. SA-DM-9600S is suitable for semi-flexible cable, flexible coaxial cable and special single core wire processing; SA-DM-9800 is suitable for precision of various flexible thin coaxial cables in communication and RF industries.

1. Can process many kinds of specials cables
2. Complex coaxial cable process finished once, high efficiency
3. Support cable cutting, multi-segment stripping, middle opening, stripping and leaving glue etc.
4. Special central positioning device and cable feeding device, higher processing accuracy

Model

SA-DM-9600

SA-DM-9800

Available Wire Dia

1-6mm

0.6-4mm

Cutting Length

50-9999mm

50-9999mm

Cutting Length Tolerance

±0.1mm

±0.1mm

Stripping Layers

Max 6 layers

Max 6 layers

Stripping Length

Left max 100mm; Right max 40mm

Left max 120mm; Right max 45mm

Weight

120kg

100kg

Production Rate

350—650pcs/h

850-1150pcs/h

Drive Method

Motor / ball screw drive

Display Screen

Chinese / English display screen

Power Supply

110/220VAC, 50/60Hz

Power

800W

Dimensions

60*69*40cm

65*660*40cm

Weight

120kg

100kg

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
