2-12 pin Flat wire cut strip split machine

  • SA-PX12
  • Description: Processing wire range: 2-12 pin flat cable ,Full automatic 2-12 pin Flat cable cutting stripping splitting machine,suitable for stripping and cutting flat cable and rubber wire ,Widely used in wire harness, It’s Greatly Improved stripping speed and save labor cost.
  • INQUIRY   EMAIL

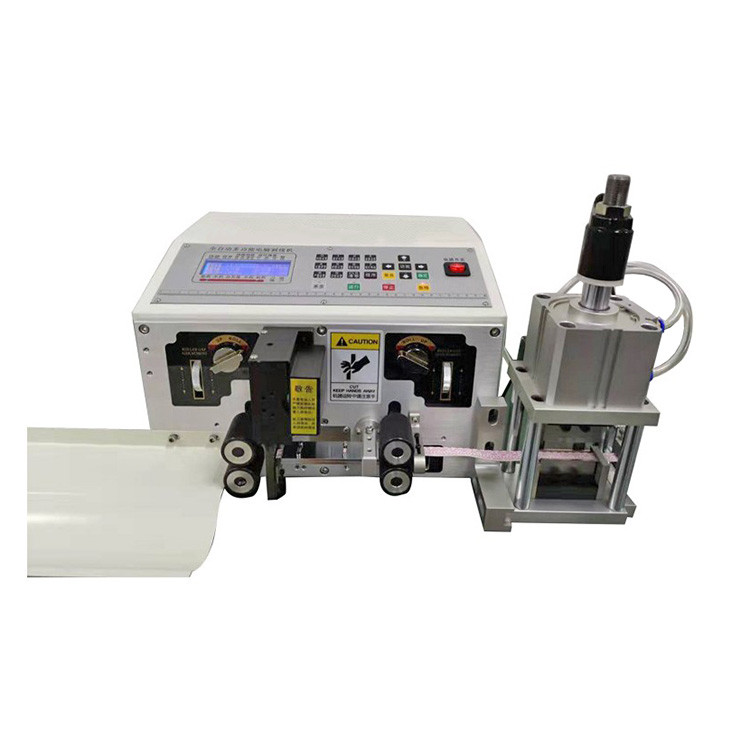

2-12 pin flat cable cutting stripping machine

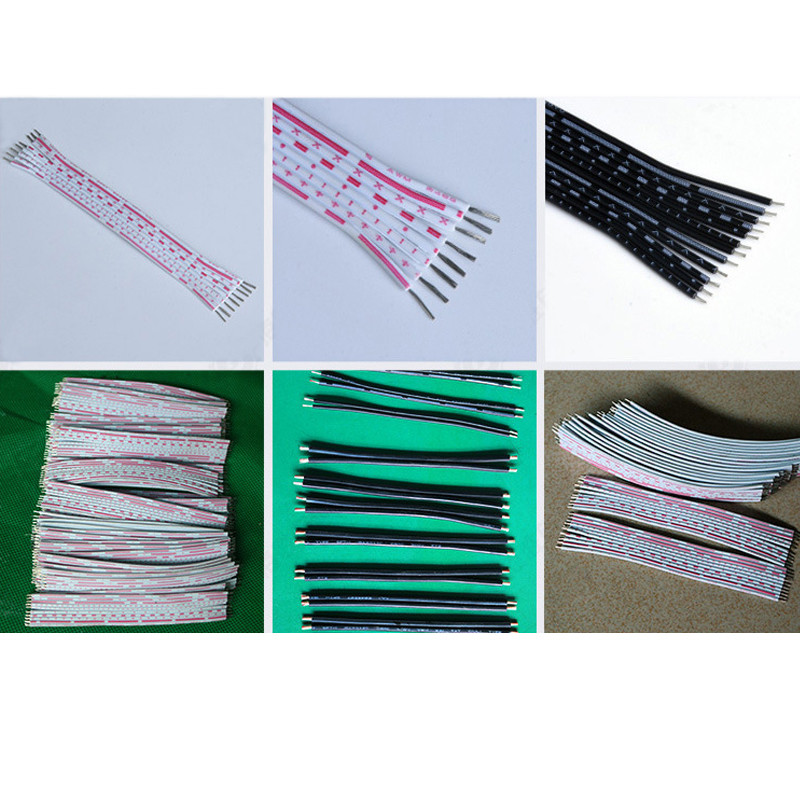

Processing wire range:  2-12 pin flat cable ,Full automatic Flat cable stripping cutting with splitting function ,suitable for stripping and cutting flat cable and rubber wire ,Widely used in wire harness processing industry for automotive electrical appliances, instrumentation,lamps, household appliances, It’s Greatly Improved stripping speed and save labor cost.

Introduction:

1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and        low maintenance,

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.

Model No.

HS-PX12

Wire Range

2PIN - 12PIN Max : 12Pin

Max Ribbon width: 20mm

Cutting Length

0-99999mm

Stripping Length

Front 1-30mm

End 1-30mm

Separate Length

1-9999.9

Wire Guide Size I.D

Special for the flat cable

Sliding drive mode

by Step Motor up and down pushing

Stripping drive mode

4 wheel drive

Wire material

PVC

Blade

High Speed Steel

Power

AC220/50Hz AC110/60Hz

Toleracne

±0.2%*Length

Machine weight

40kg
