Semi automatic crimping machine

Handheld Seal Plug Insertion Gun machine for TE 114017

Handheld Seal Plug Insertion Gun machine for TE 114017

Model : SA-TE1140

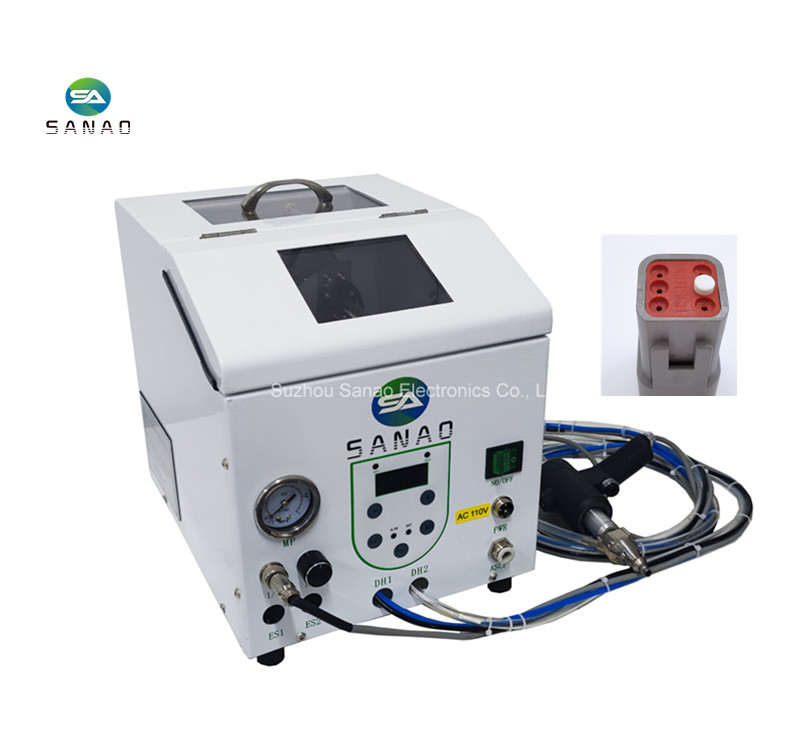

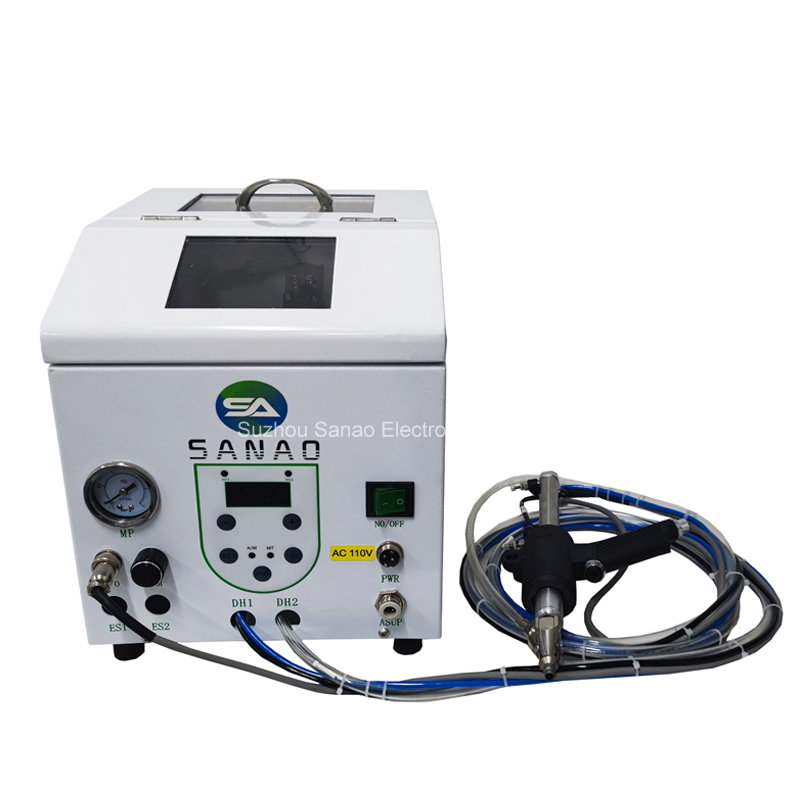

Description: SA-TE1140 Handheld Seal Plug Insertion Gun System for TE 114017,Loose Seal Plugs are poured into the parts bowl and automatically fed to the insertion gun. The Gun features a trigger button for inserts AND a tip safety. The gun will not fire a seal plug if the tip is not depressed, to prevent accidental discharge. All Seal Plug Insertion Gun Systems are custom made for a customer's chosen seal pl
INQUIRY EMAIL

SA-TE1140 Handheld Seal Plug Insertion Gun System for TE 114017,Loose Seal Plugs are poured into the parts bowl and automatically fed to the insertion gun. The Gun features a trigger button for inserts AND a tip safety. The gun will not fire a seal plug if the tip is not depressed, to prevent accidental discharge. All Seal Plug Insertion Gun Systems are custom made for a customer's chosen seal plug -- we often build these systems for our customer's unusual or proprietary parts.Like following plug . Free contact me if you interested .

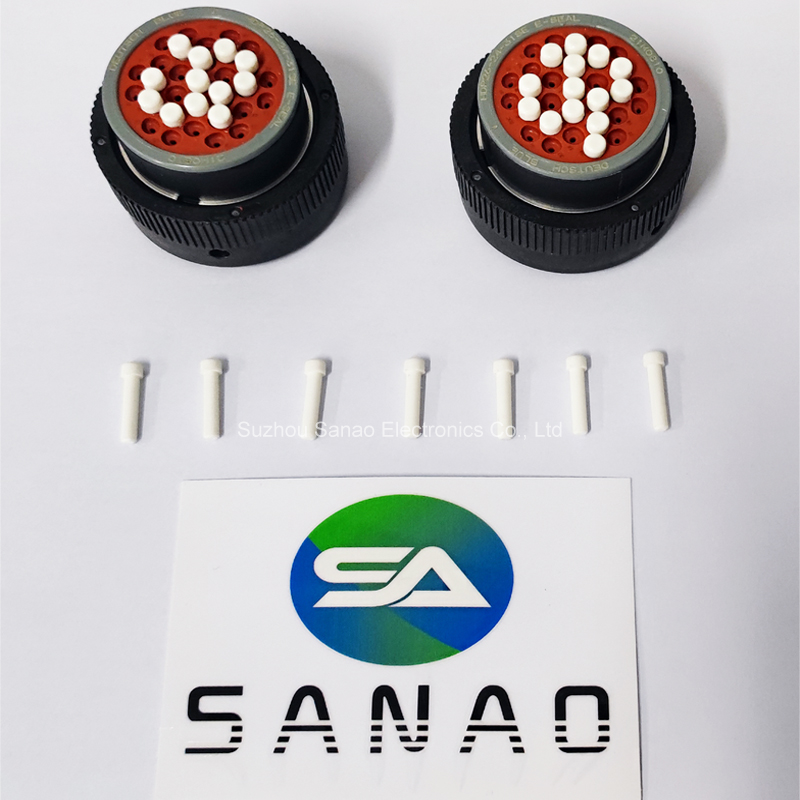

1. 114017

2. 0413-204-2005

3. 12010300

4. 770678-1

5. 12034413

6. 15318164

7. M120-55780

Model	SA-TE1140
Crimping connector	114017 seal plug ( other seal plug also can custom made)
Detect device	detect lack of material
Working air pressure	0.05-0.9MPa
Power Supply	AC220V/50HZ single phase
Gas source	0.5-0.8Mpa (please use clean and dry air)
