Semi-auto wire stripping machine

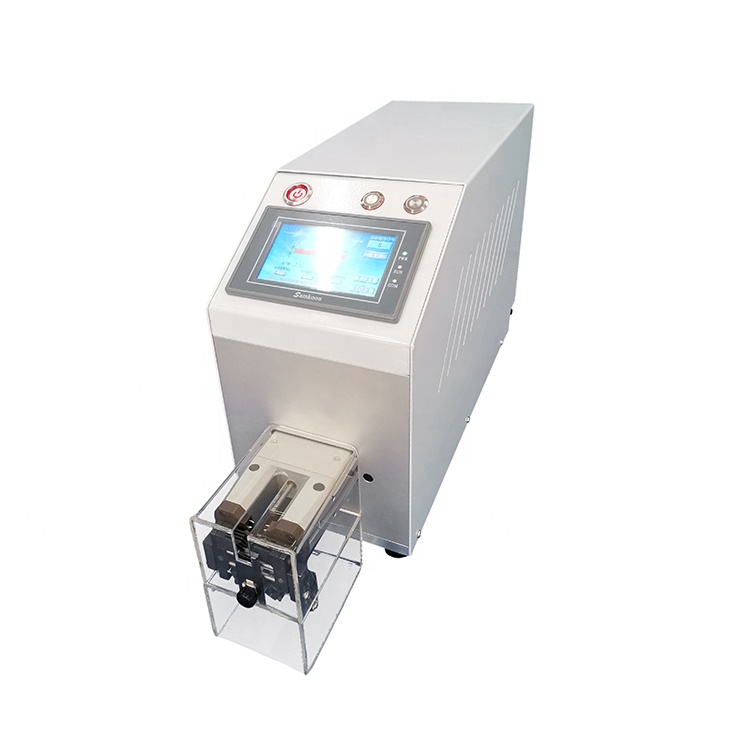

Inductive Electric Cable Stripping Machine

Inductive Electric Cable Stripping Machine

SA-3070
Description: Processing wire range:Suitable for 0.04-16mm2, Stripping length is 1-40mm,SA-3070 is a Inductive Electric Cable Stripping Machine,Machine start stripping working once wire touch Inductive pin switch , Machine Adopt The 90 degree V-shaped knife that the design is very versatile, so not need replace the knife for different wires process, and machine can save 19 different program
INQUIRY EMAIL

Processing wire range:Suitable for 0.04-16mm2, Stripping length is 1-40mm,SA-3070 is a Inductive Electric Cable Stripping Machine,Machine start stripping working once wire touch Inductive pin switch , Machine Adopt The 90 degree V-shaped knife that the design is very versatile, so not need replace the knife for different wires process, and machine can save 19 different program, It’s Greatly Improved stripping speed and save labor cost.

Advantage :

1.Inductive pin switch, Easy to operate

2.30 kinds of different program , Save adjust time and material waste.

3.Adopt The 90 degree V-shaped knife, Common use different size wire , Not need change the blades . very convenient .

4.Suitable for 0.04-16mm2, Stripping length is 1-40mm

5.Various processing modes meet different types of wire processing. (half peel, full peel, double stripping, etc.)

Model	SA-3070
Max. Stripping length	40mm
Diameter setting accuracy	0.05mm
Production capacity	1800-2000 pieces/hour (depending on operating proficiency)
Available cross section	0.04-16mm2
Dimensions	Entire-strip: 0.5mmm, Half-strip: 6500mm62mm300mmmm
Power supply	220V/110V/50HZ/60HZ
Plug	Euro/US/Chinese plug
