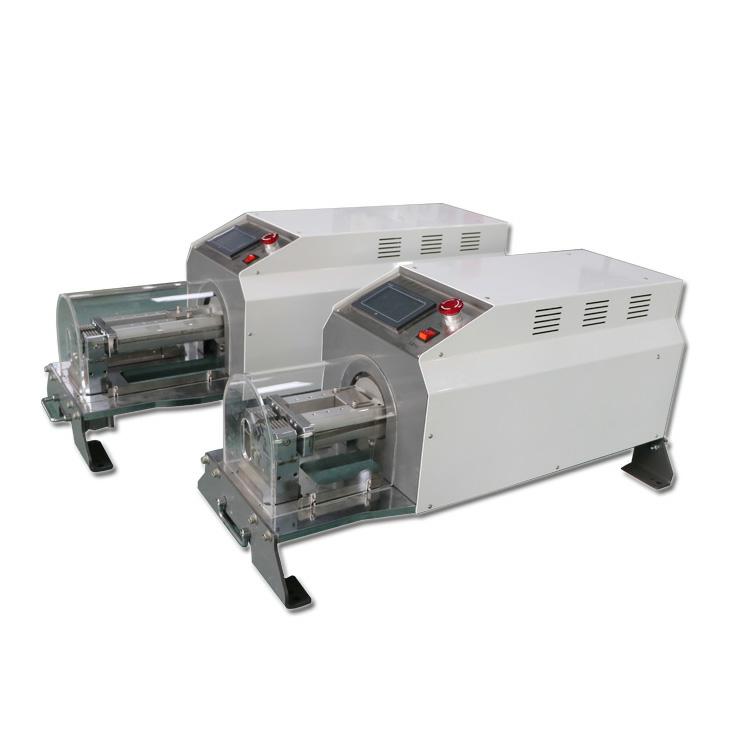

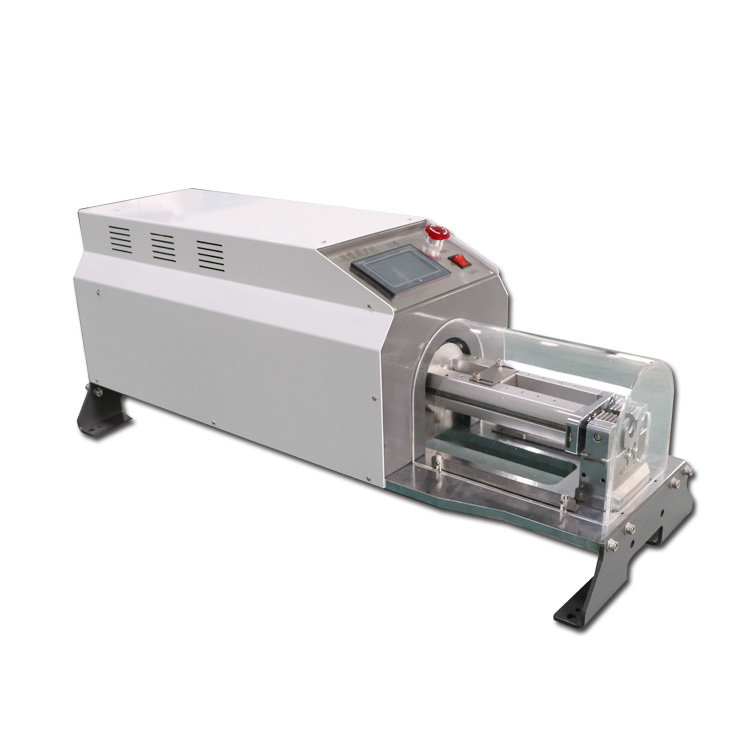

Power cable Rotary Blade Cable Stripping Machine

  • Model : SA-W100-R
  • Description: Processing wire range:Suitable for 10-25MM,Max . stripping length 100mm ,SA-W100-R is Pneumatic Rotary Blade Cable Stripping Machine ,This machine adopted special rotary stripping method , can meet the extremely high requirements for wire harness processing, the stripping edge to be flat and without burr, not scratching the core wire and outer jacket, It’s Greatly Improved stripping speed and save
  • INQUIRY   EMAIL

Processing wire range:Suitable for 10-25MM,Max . stripping length 100mm ,SA-W100-R is Pneumatic Rotary Blade Cable Stripping Machine ,This machine adopted special rotary stripping method , can meet the extremely high requirements for wire harness processing, the stripping edge to be flat and without burr, not scratching the core wire and outer jacket, It’s Greatly Improved stripping speed and save labor cost.

Advantage :

1. Strong stripping ability,adopted special rotary stripping method, Suitable for Large power cable and New Energy cable .

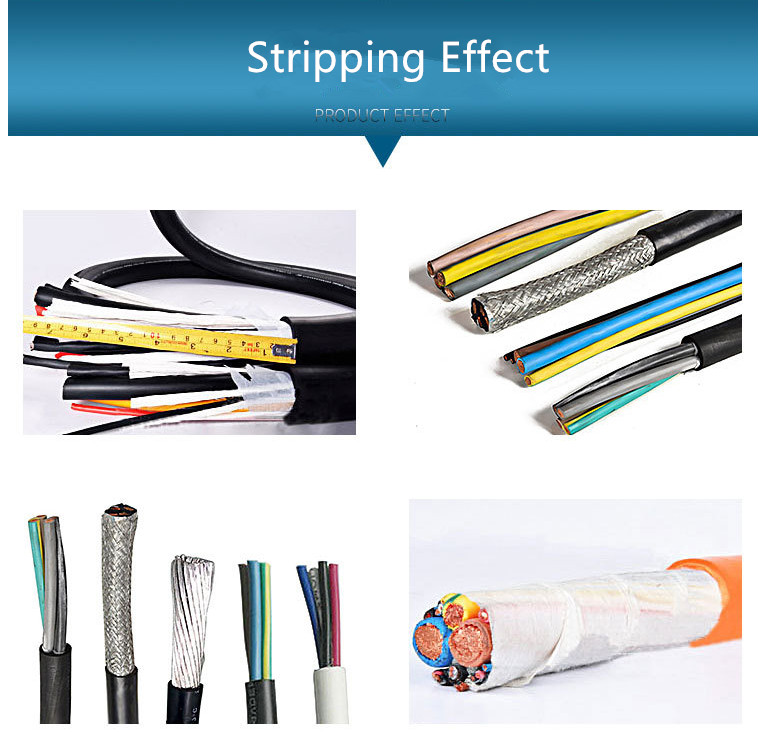

2.Good stripping Effect , the stripping edge to be flat and without burr

3.Uses specific axial positioning and advanced rotary tool holders. Improved accuracy and speed

4.English interface, debugging parameters, accurate and quick manual sensing menu dialogue control system

Model

SA-W100-R

SA-W200-R

SA-W300-R

Wire diameter

10-25 mm

10-25 mm

10-50mm

Stripping lengths

0-100mm

0-200mm

0-300mm

Stripping mode

Rotary stripping

Rotary stripping

Rotary stripping

Air input

0.5-0.7mpa

0.5-0.7mpa

0.5-0.7mpa

Length accuracy

±(0.002*L)mm

±(0.002*L)mm

±(0.002*L)mm

Productivity

20-40pcs/min

20-40pcs/min

20-40pcs/min

Noise level

<70dba

<70dba

<70dba

Electrical connection

AC220/110V/50/60HZ

AC220/110V/50/60HZ

AC 220/110V/50/60HZ

Operation interface

BLC+Touch screen

BLC+Touch screen

BLC+Touch screen

Machine dimension

1000*330*430mm

1000*450*350mm

1400*450*350mm

Weight

80kgs

80kgs

100kg
