  • 4-30mm² Full automatic Heavy Duty Large Power Cables Stripping Machine
  • 4-30mm² Full automatic Heavy Duty Large Power Cables Stripping Machine
4-30mm² Full automatic Heavy Duty Large Power Cables Stripping Machine4-30mm² Full automatic Heavy Duty Large Power Cables Stripping Machine

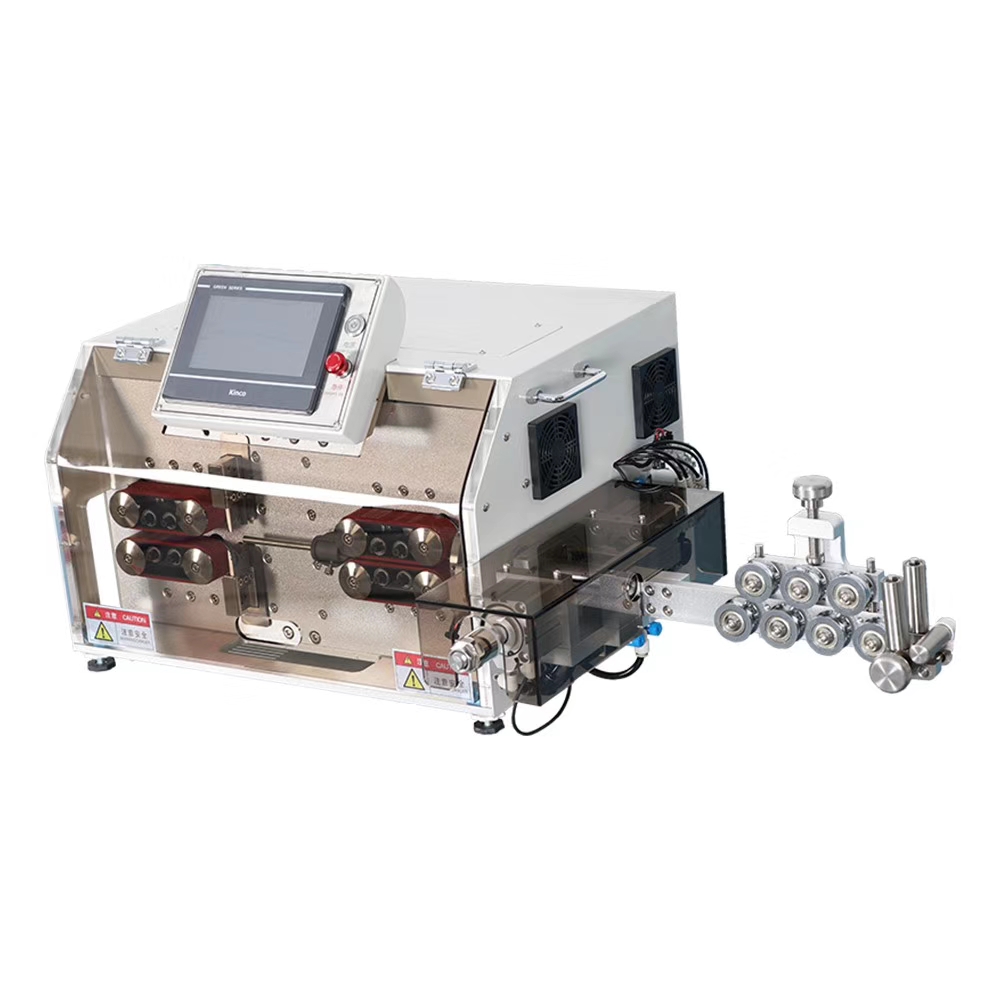

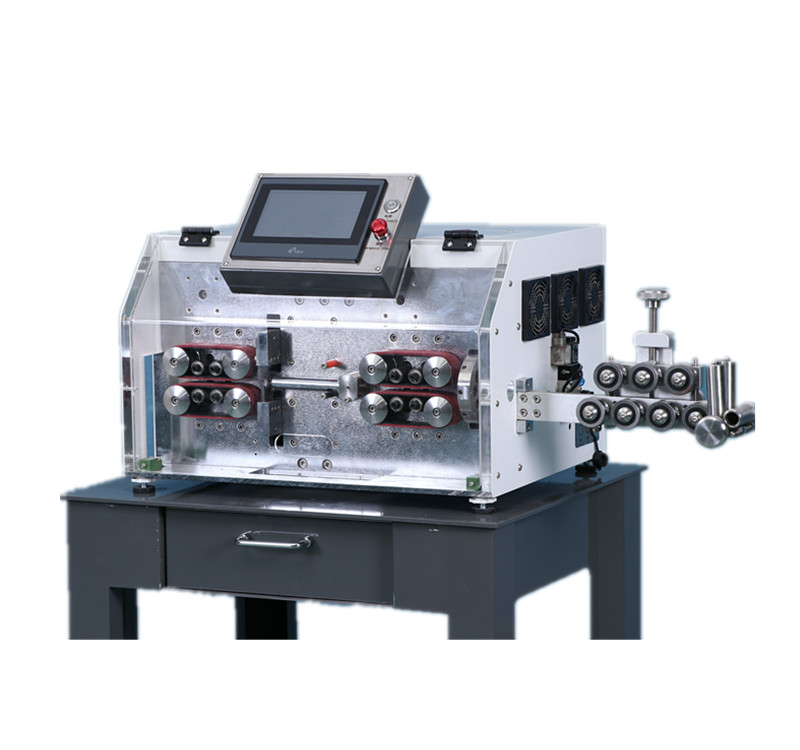

4-30mm² Full automatic Heavy Duty Large Power Cables Stripping Machine

  • Model : SA-H03-S
  • Description: Processing wire range: 4-30mm², SA-H03-S,Electrical double wire stripping machine,Full automatic stripping and cutting double end at one time ,Widely used in wire harness. It’s Greatly Improved stripping speed and save labor cost.
  • INQUIRY   EMAIL

Full automatic Large single cable stripping cutting machine.

Processing wire range: 4-30mm²,Full automatic large wire stripping and cutting machine, or stripping outer jacketed of sheathed cable (Max. 19 core) ,It’s Greatly Improved stripping speed and save labour cost.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy

Introduction:

1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and        low maintenance,

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.

Model

SA-H03-S

SA-H07-S

Conductor Cross-Section

4-30mm²

10-70mm²

Cutting Length

1-99999mm

1-99999mm

Cutting Length Tolerances

≤(0.002*L) mm

≤(0.002*L) mm

Jacket Stripping Length

Head 1-200mm; Tail 1-120mm

Head 1-800mm; Tail 1-260mm

Inner Core Stripping Length

/

/

Conduit Diameter

Φ16mm

Φ25mm

Production Rate

Single wire :2300pcs/h

single wire : 2800pcs/h

Sheath wire :800pcs/h (base on wire and cutting length)

Sheath wire 800pcs/h (base on wire and cutting length)

Display Screen

7 inch touch screen

7 inch touch screen

Drive Method

16 wheels drive

32 wheels drive

Wire Feed Method

Belt feeding wire, no indentation on cable

Belt feeding wire, no indentation on cable
