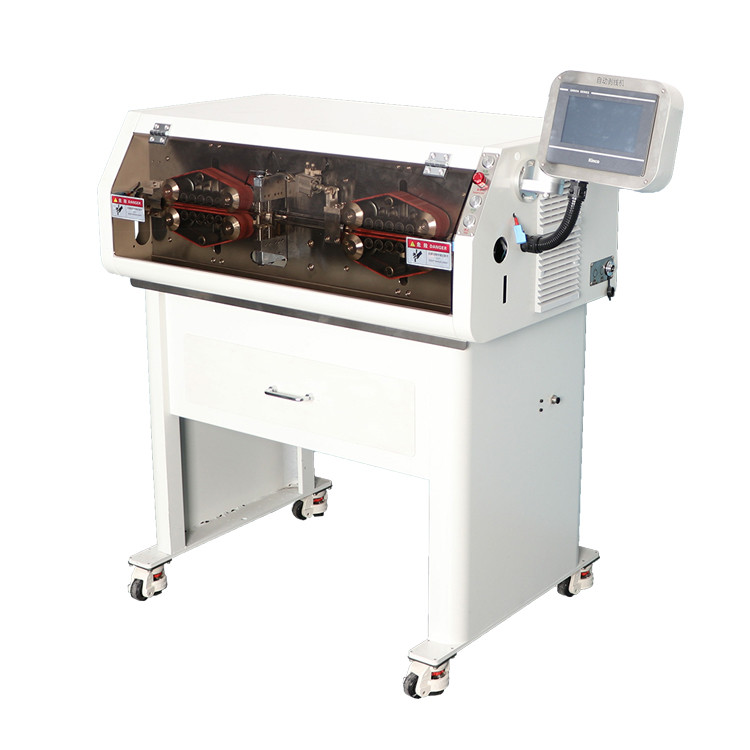

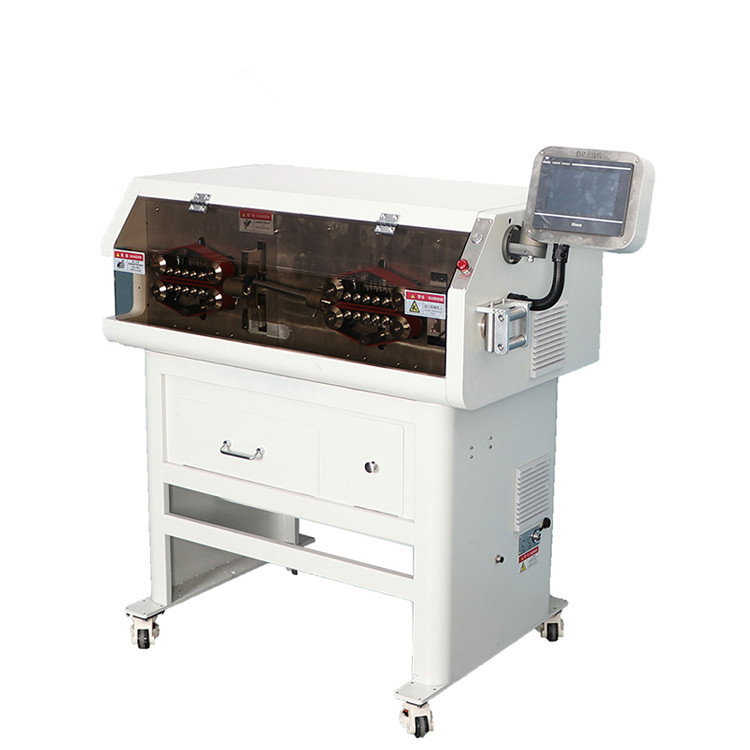

120mm2 Full automatic Power cable strip cut machine

  • Model: SA-H120
  • Description: Processing wire range: Max120MM2 , SA-H120 Full automatic Power cable strip cut machine,Full automatic stripping and cutting double end at one time ,Widely used in wire harness. It’s Greatly Improved stripping speed and save labor cost.
  • INQUIRY   EMAIL


Big Cable Cutting Stripping equipment

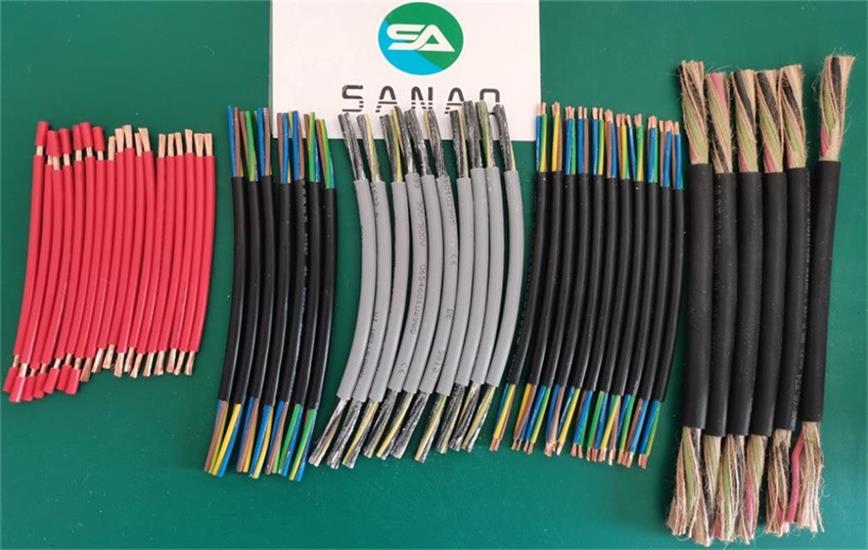

Processing wire range: 1-120mm²,Full automatic large wire stripping and cutting machine, or stripping outer jacketed of sheathed cable (Max. 19 core) ,It’s Greatly Improved stripping speed and save labour cost.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy

Introduction:

1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

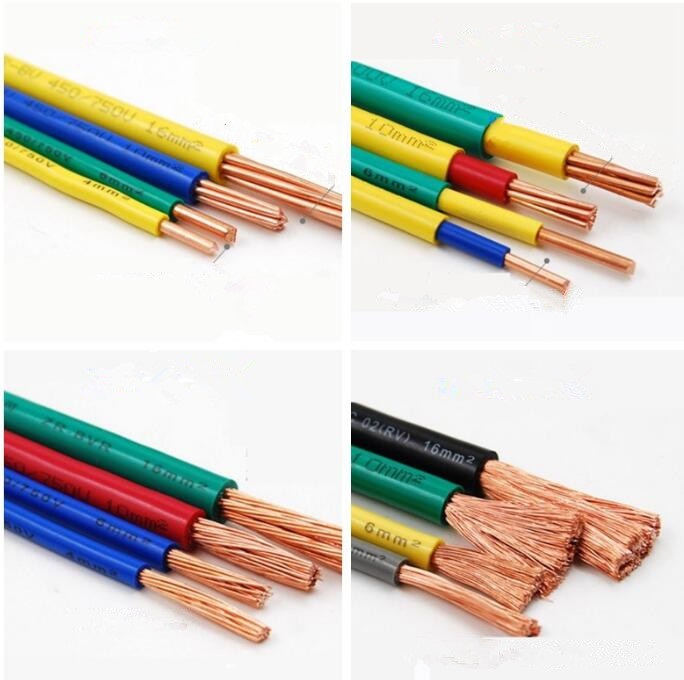

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and        low maintenance,

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.

Model

SA-H120

SA-H150

Conductor cross-section

4 - 120 mm²

10 - 150 mm²

Cutting length

1 - 99999.99 mm

1 - 99999.99 mm

Cutting length tolerance

0.002 * L (L = cutting length)

0.002 * L (L = cutting length)

Stripping length (side I)

1 - 800 mm

1 - 800 mm

Stripping length (side II)

1 - 400 mm

1 - 400 mm

Maximum diameter of conduit

30 mm

33mm

Knife material

High quality imported high speed steel

High quality imported high speed steel

Productivity


1800 pcs./h (depending on cutting length and wire size)


1800 pcs./h (depending on cutting length and wire size)

Display mode

7-inch touch screen

7-inch touch screen

Driving mode

Knife rest by servo motor, others by stepping motor

servo motor

Feeding mode

By belts

By belts

Remarks

Special cable can be customized by sending samples

Special cable can be customized by sending samples

Dimension

1020*610*1150mm

1020 * 610 * 1150 mm
