Ultrasonic tape cutting machine

  • Ultrasonic Webbing Tape Punching and Cutting Machine
  • Ultrasonic Webbing Tape Punching and Cutting Machine
  • Ultrasonic Webbing Tape Punching and Cutting Machine
Ultrasonic Webbing Tape Punching and Cutting MachineUltrasonic Webbing Tape Punching and Cutting MachineUltrasonic Webbing Tape Punching and Cutting Machine

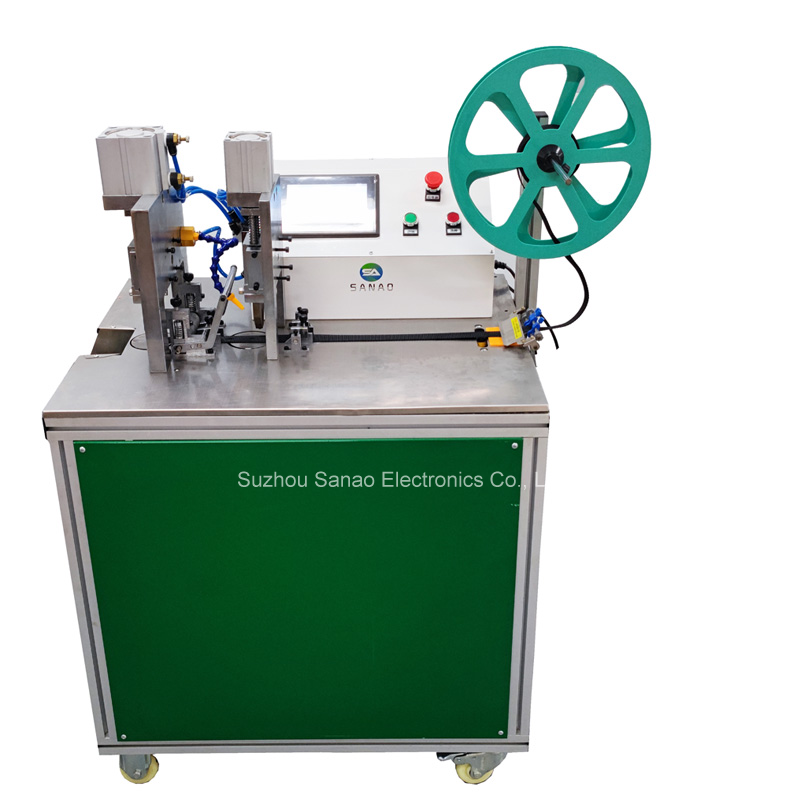

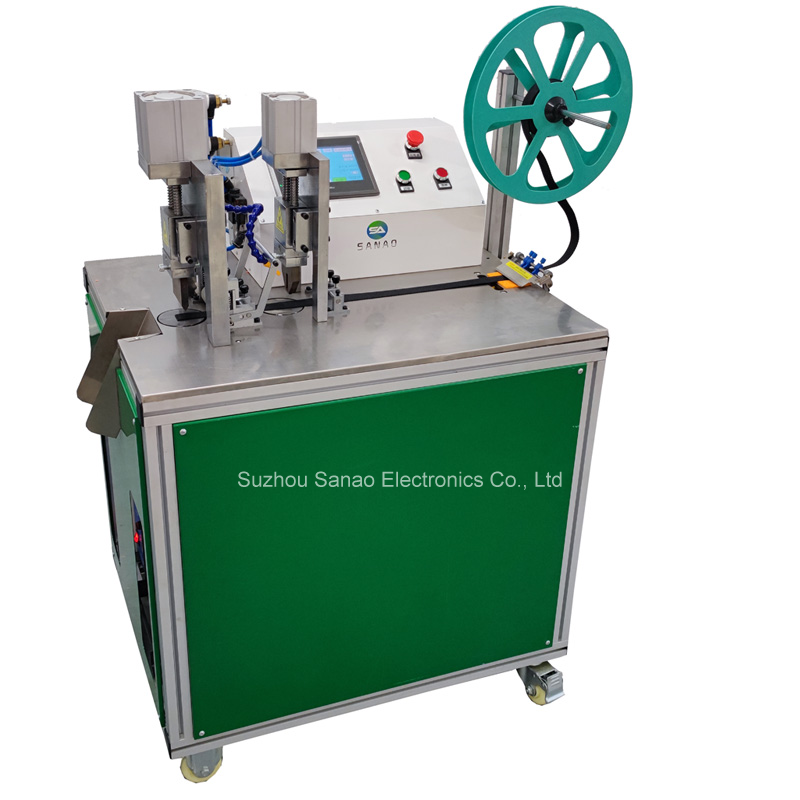

Ultrasonic Webbing Tape Punching and Cutting Machine

  • Model: SA-AH80
  • Description: Cutting tape range: Blades width is 80MM , Max. Cutting width is 75MM , SA-AH80 is Ultrasonic Webbing Tape Punching and Cutting Machine , The machine has two stations, One is cutting function , The other is hole punching ,Hole punching distance can directly setting on machine , For example , Hole distance is 100mm , 200mm , 300mm etc. o It’s Greatly Improved product value,cutting speed.
  • INQUIRY   EMAIL

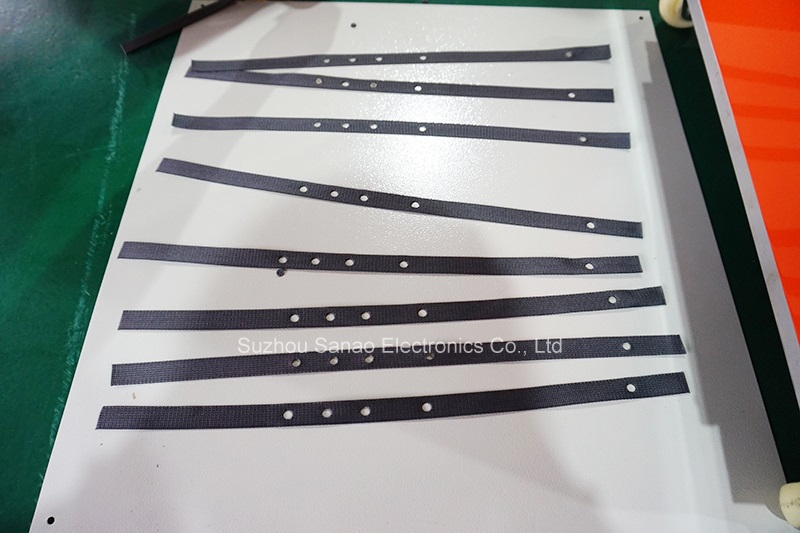

Cutting tape range: Blades width is 80MM , Max. Cutting width is 75MM , SA-AH80 is Ultrasonic Webbing Tape Punching and Cutting Machine , The machine has two stations, One is cutting function , The other is hole punching ,Hole punching distance can directly setting on machine , For example , Hole distance is 100mm , 200mm , 300mm etc. Also machine have two cutting method , one is cutting and hole punching , the other is fixed length cutting,Widely used in cutting gift wrapping tapes, strips, ribbons, etc, It’s Greatly Improved product value,cutting speed and save labor cost.

Advantage :

1.Machine Adopts two stations working ,one is cutting function , The other is hole punching. Cutting and punching are completed at one time,It’s can save time .

2.PLC Control with English display , Hole distance can directly setting on machine , Easy to operate .

3.Machine have two cutting method , one is cutting and hole punching , the other is fixed length cutting,

4.Widely used in cutting gift wrapping tapes, strips, ribbons, etc, It’s Greatly Improved product value,cutting speed and save labor cost.

Model

SA-AH80

Cutting type

Ultrasonic cutting

Cutting length

1-99999mm

Cutting width

1-80mm

Voltage

110V/220V;60Hz/50Hz

Power

2.4KW

Frequency

18KHZ

Cutting speed

120pieces/min

Dimension

1050*600*850mm

Weight

120KG
