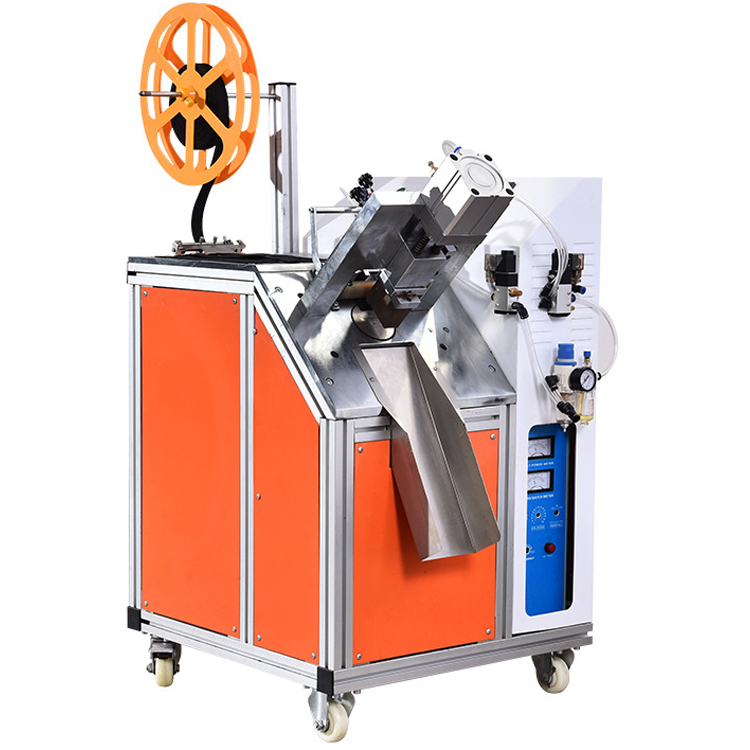

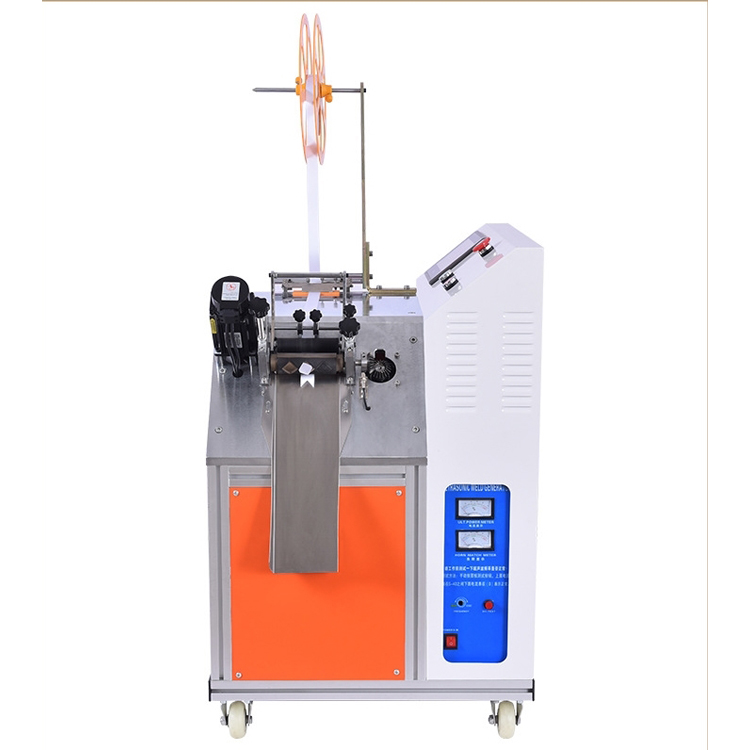

Max. Cutting width is 100mm , SA-H110 This is a high speed ultrasonic tape cutting machine for Various Shape, Adopt roller mold cutting that Carve the desired shape on the mold, different cutting shape different cutting mold , such as straight cut, beveled,dovetail, rounded, etc.the cutting length is fixed for each mold,we can customize the cutting shaft according to your requirements ,The feeding wheel is driven by a high-speed servo motor ,so the speed high speed , It’s Greatly Improved product value,cutting speed and save labor cost.
Advantage :
1..Adopts Adopt mold cutting, Can cut any desired shape.
2.feeding wheel is driven by a high-speed servo,with high speed cutting .
3Machine very easy to operate , Just change the cutting mold.

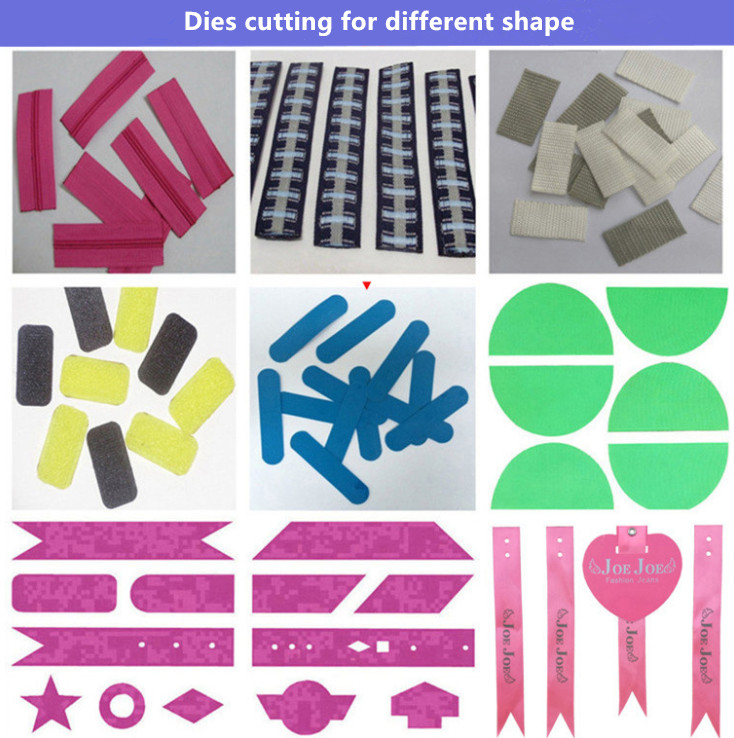

4.high speed ultrasonic tape cutting machine for Various Shape,such as straight cut, beveled,dovetail, rounded, etc.
Model
SA-H110
Cutting type
Ultrasonic cutting
Cutting width
1-110cm
Cutting length
1-99999mm
Voltage
110V/220V;60Hz/50Hz
Power
2.4KW
Frequency
18KHZ
Cutting speed
300-400 times/min
Dimension
1050*600*850mm
Weight
120KG
