Ultrasonic tape cutting machine

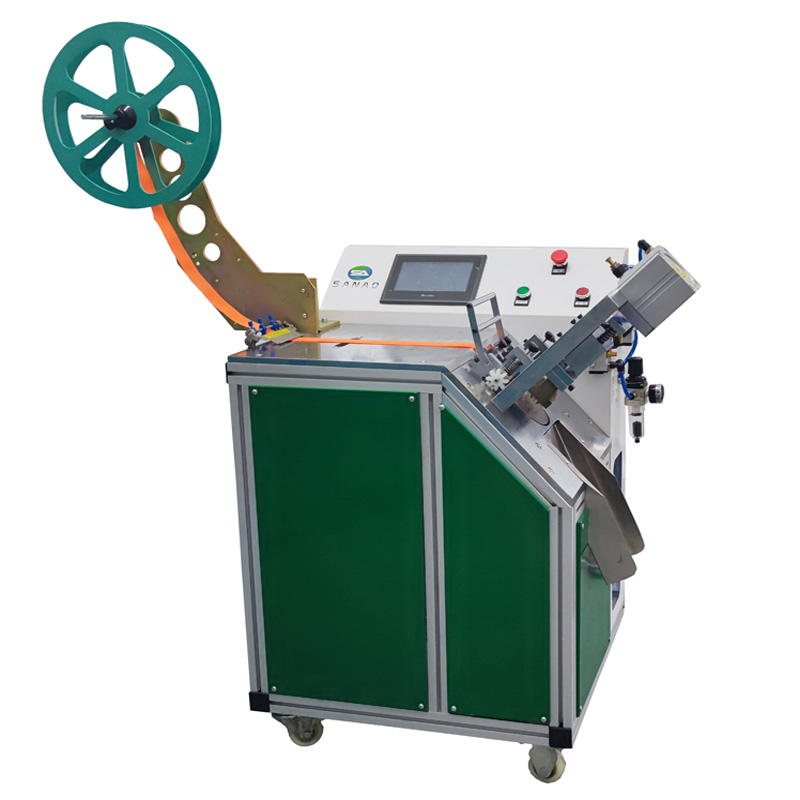

Ultrasonic woven belt cut machine for webbing SA-U80

Ultrasonic woven belt cut machine for webbing SA-U80

Model : SA-CS80
Description: Cutting tape range: Blades width is 80MM , Max. Cutting width is 75MM , SA-CS80 is Automatic ultrasonic tape cutting machine for woven belt , This is machine is use ultrasonic Cutting,Compare with the Hot cutting , the ultrasonic cutting edges is flat, soft, comfortable and natural,Directly setting length ,Machine can cutting belt automatically .
INQUIRY EMAIL

Cutting tape range: Blades width is 80MM , Max. Cutting width is 75MM , SA-CS80 is Automatic ultrasonic tape cutting machine for woven belt , This is machine is use ultrasonic Cutting,Compare with the Hot cutting , the ultrasonic cutting edges is flat, soft, comfortable and natural,Directly setting length ,Machine can cutting belt automatically , It’s Greatly Improved product value,cutting speed and save labor cost.

Features:

1.Adopts automatic digital operation control system,easy & convenient to use;

2.It can cut automatically after the parameters are set;

3.Its cutting position and length are adjustable;

4.very easy to operate with English manual ;

5.Cold and hot cutting can be selected according to different products.

Model	SA-CS80	SA-CS100
Cutting length	1-99999mm	1-99999mm
Max. cutting width	1-75MM	1-95MM
Cutting speed	100-180beats/min	80-120 beats/min
Power Supply	110/220VAC,50/60Hz	110/220VAC,50/60Hz
Cutting thickness	1mm-4.5mm	0.2-3mm
Application	labels, weebing, ribbons, elastic bands, narrow woven fabrics, belts, straps and much more
