Electric wire stripping machine

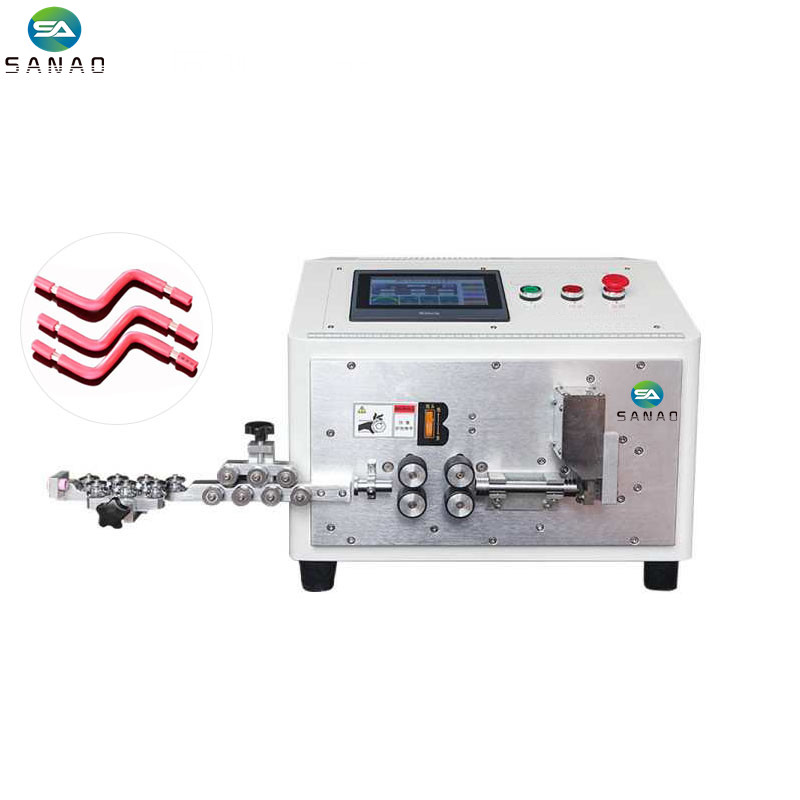

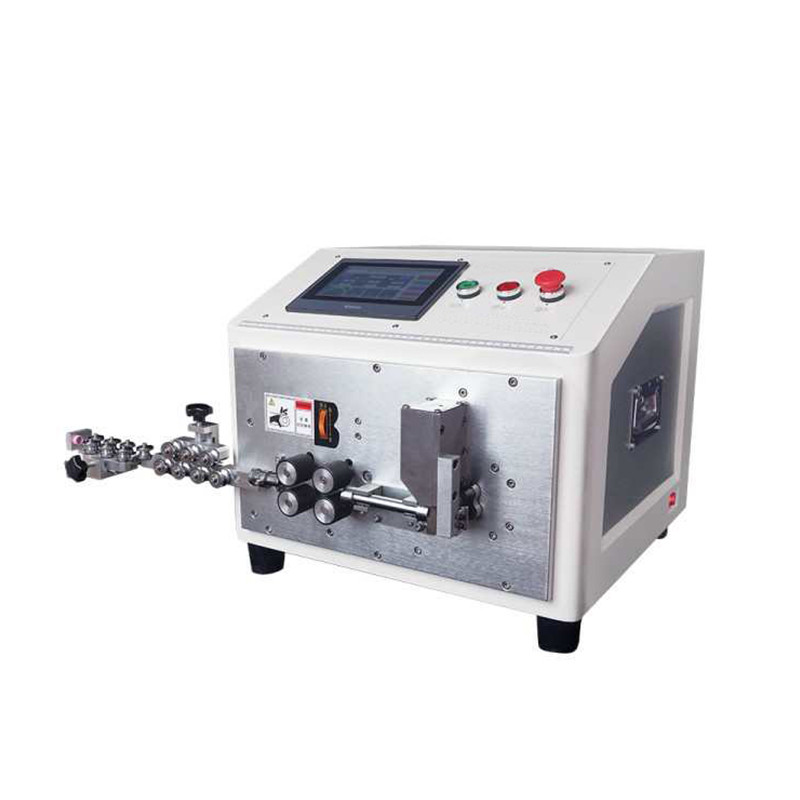

16mm² Automatic Wire Cut Strip Bending Machine

16mm² Automatic Wire Cut Strip Bending Machine

Model :SA-ZW1600
Description: Processing wire range: Max.16mm2,Full automatic wire stripping, cutting and bending for different angle ,Clockwise and counterclockwise, adjustable bending degree, 30 degrees, 45 degree, 60 degrees, 90 degrees. positive and negative two bending in one line.
INQUIRY EMAIL

Automatic Stripper Bending Cutting Machine

Processing wire range: Max.16mm2,Full automatic wire stripping, cutting and bending for different angle ,Clockwise and counterclockwise, adjustable bending degree, 30degrees, 45 degree, 60 degrees, 90 degrees. positive and negative two bending in one line.

Introduction:

1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Very Easy to operate with touch English display , stable quality with 1 year warranty and low maintenance.

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.

Model	SA-ZW1600	SA-ZW600
Conductor cross-section	1 - 16 mm²	1 - 6 mm²
Cutting length	0.1 - 99,999.9 mm	0.1 - 99,999.9 mm
Stripping length	0.1 - 50 mm	0.1 - 30 mm
Stripping length (side II)	0.1 - 20 mm	0.1 - 20 mm

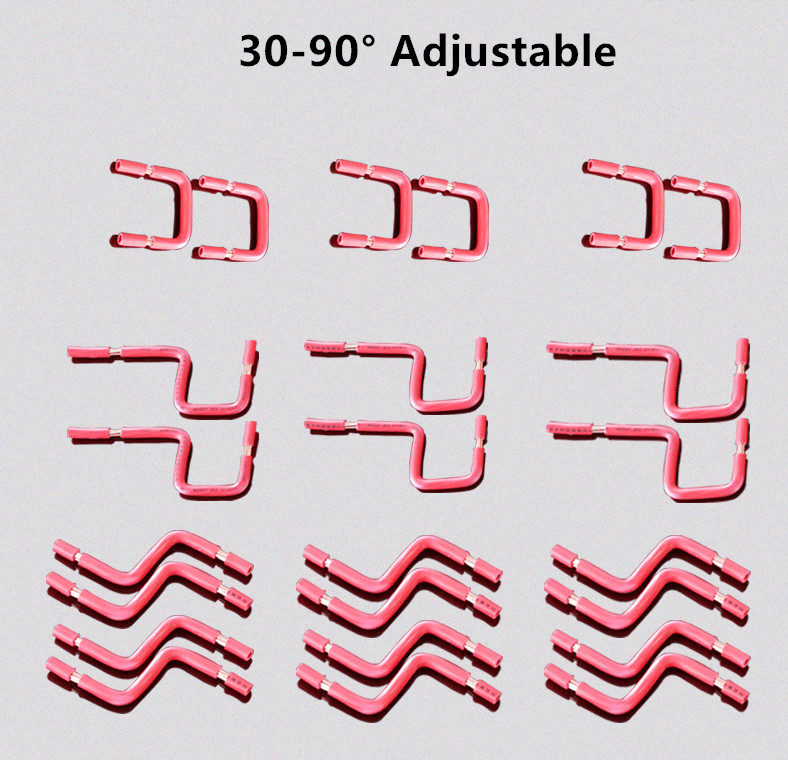

Bending angle	30 - 90°(changeable within the range)	30 - 90°(changeable within the range)
Maximum bending steps	13 (can be customized for more steps)	13 (can be customized for more steps)
Blade material	Imported tungsten steel	Imported tungsten steel
Productivity	1000 - 2000 pcs./h	1000 - 3000 pcs./h
Power supply	110, 220 V (50 - 60 Hz)	110, 220 V (50 - 60 Hz)
Dimension	500 * 480 * 380 mm	470 * 450 * 350 mm

FAQ

Q1: Are you a trading company or a factory?

A1: We are a factory , we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The leading time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
