  • Model:SA-FA300

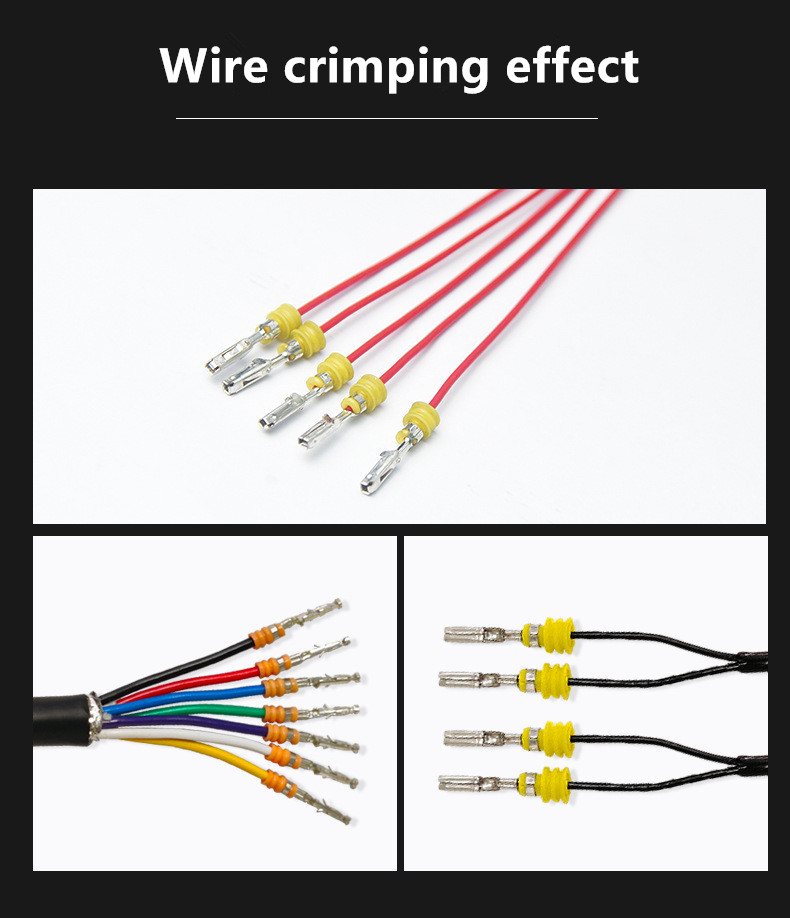

  • Description: SA-FA300 is Semi-automatic Wire Stripper Seal Inserting Terminal Crimping Machine, it realizes the three processes of wire seal loading, wire stripping and terminal crimping at the same time. adopt seal bowl smooth feeding the seal to wire end, It’s Greatly Improved wire process speed and save labor cost.
  • INQUIRY   EMAIL

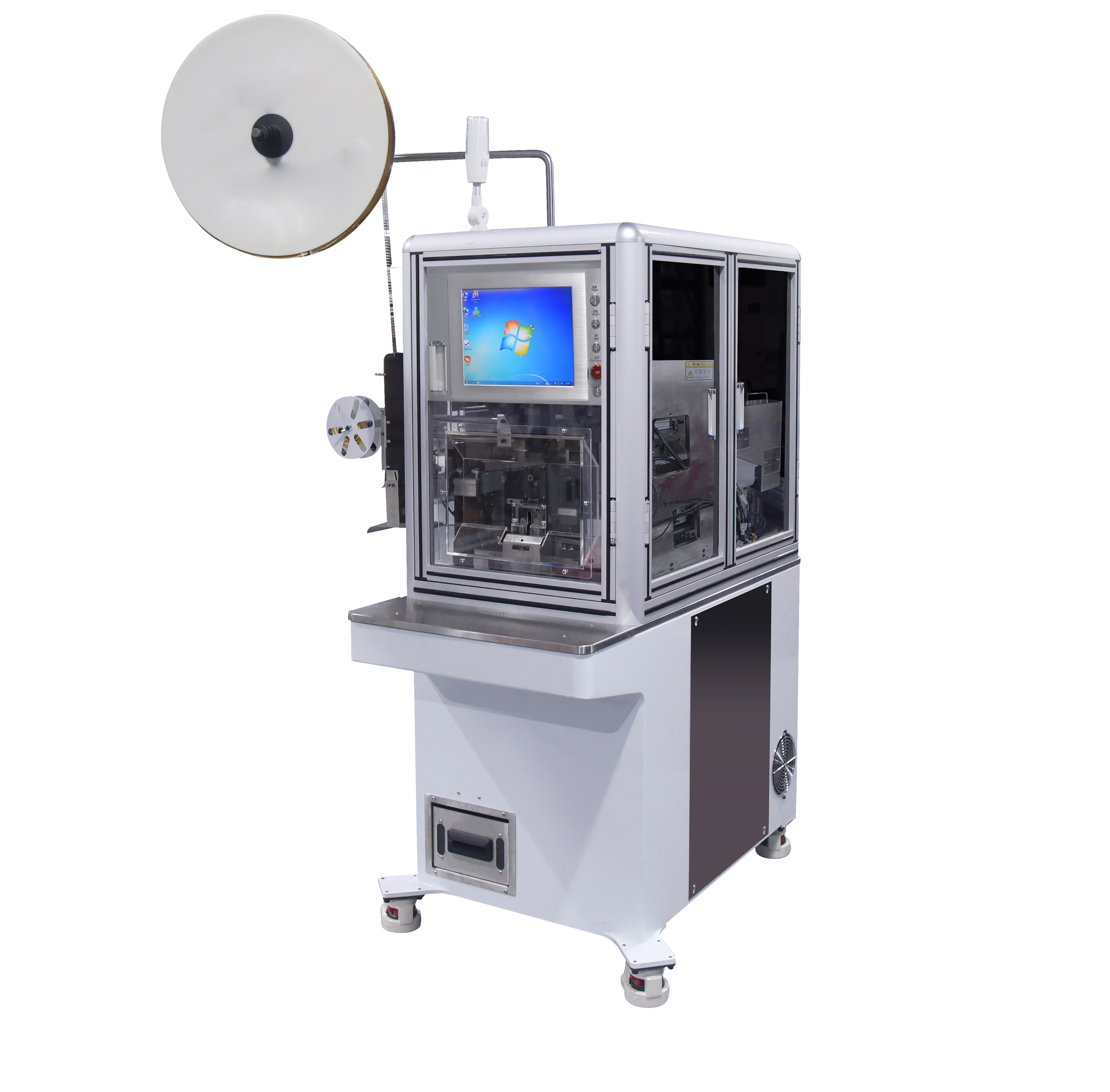

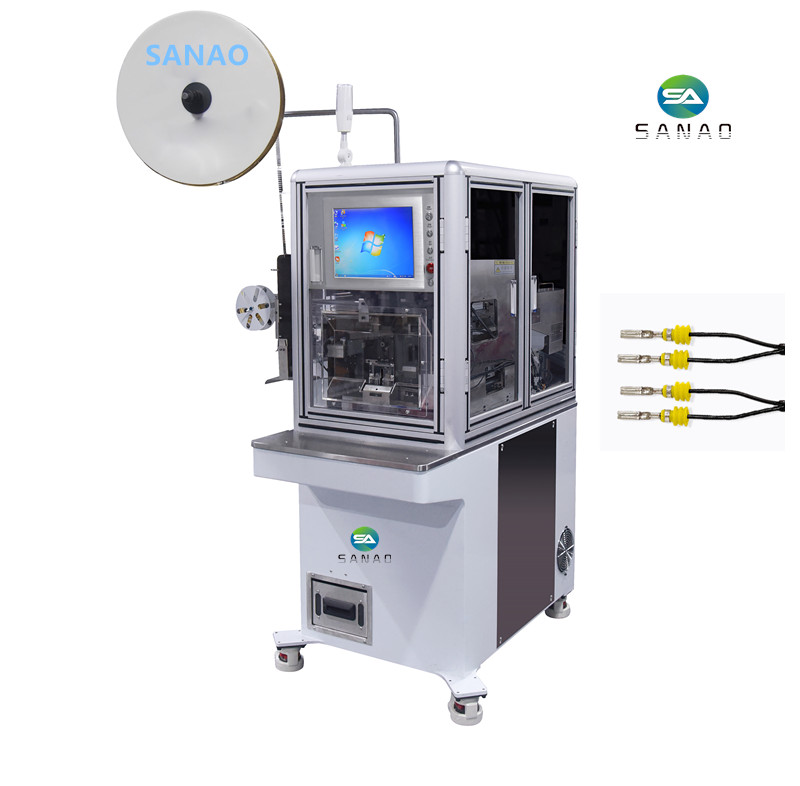

SA-FA300 is Semi-automatic Wire Stripper Seal Inserting Terminal Crimping Machine, it realizes the three processes of wire seal loading, wire stripping and terminal crimping at the same time. adopt seal bowl smooth feeding the seal to wire end, Then stripping and crimping terminal,This machine adopts servo drive and guide rail screw High accurate positioning.It’s Greatly Improved wire process speed and save labor cost.

Advantage :

1. The stripping length can be adjusted via data sets, and the wire seal insertion depth is adjusted according to the data of the glue position between the stripping port and the wire seal.
2. The crimping depth can be adjusted according to the position of the top wire.
4. The stripping slide table is driven by a screw rod, stripping mechanism is driven by a motor plus screw to ensure accurate stripping length.
5. The waterproof wire seal feeding structure is simple and easy to replace, which meets the requirements of customers with many products and varieties.
6. The machine is easy to operate, stable in quality, and most work is concentrated in one workstation.

Model

SA-FA300 Wire seal inserting stripping crimping machine

Applicable wire

0.2-2.5sqmm

Stripping length

0-10mm

Cutting error

±0.02mm

Crimping force

3T

Terminal mold stroke

40mm

Applicable seal

≤¢10*10mm

Cycle time

3s

Capacity

1000-1200/H

Machine weight

300KG

Machine dimensions

850*880*1300MM

Air source

0.5-0.7MPa

Voltage

AC220V 50/60HZ
