Automatic tying machine

  • Automatic 60M wire cable measure cutting and coil machine
  • Automatic 60M wire cable measure cutting and coil machine
  • Automatic 60M wire cable measure cutting and coil machine
Automatic 60M wire cable measure cutting and coil machineAutomatic 60M wire cable measure cutting and coil machineAutomatic 60M wire cable measure cutting and coil machine

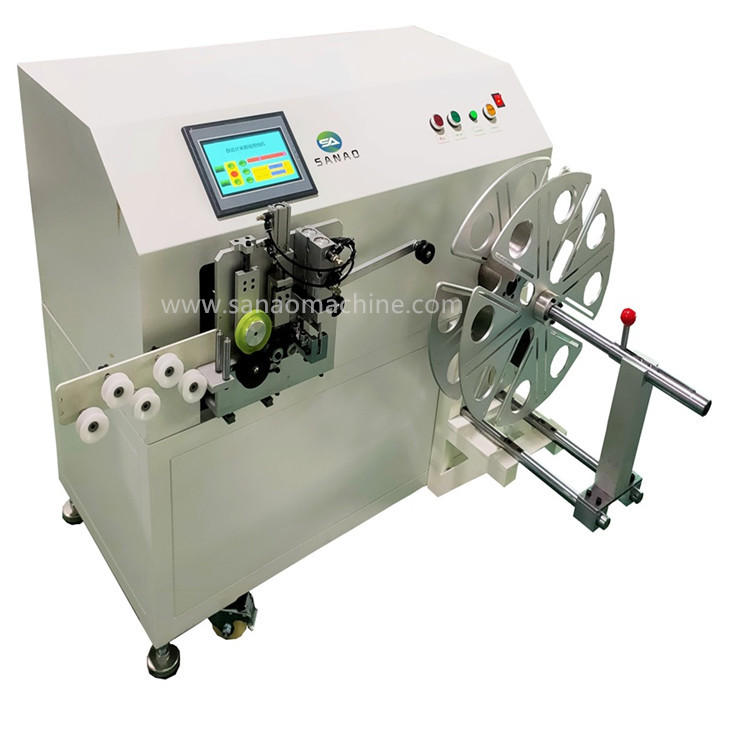

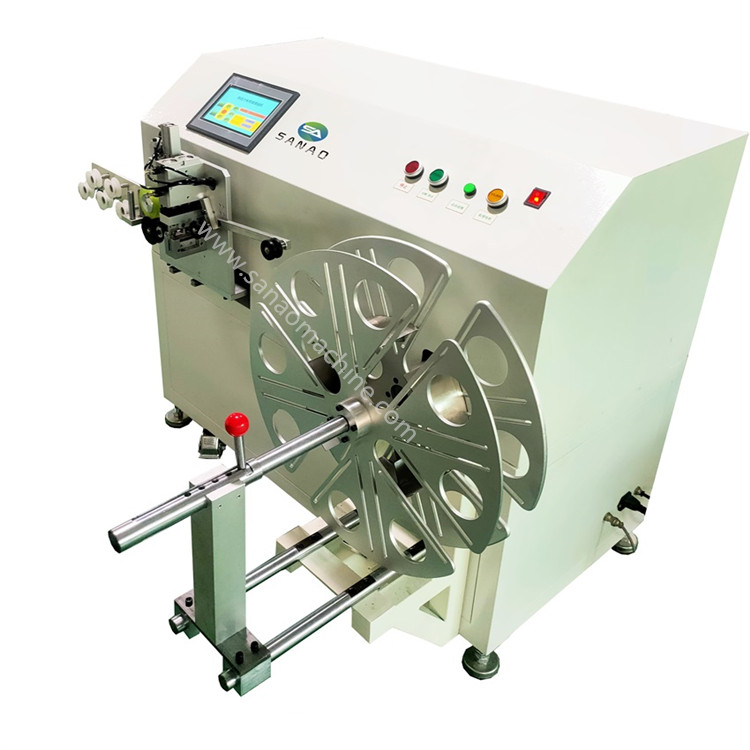

Automatic 60M wire cable measure cutting and coil machine

  • SA-C06
  • Description: Automatic calculating the cable length, coil making and cutting. if needed, Online and offline two types machine can be chosen. You can connect coiling machine to your cable production line successfully, to achieve online cutting winding .
  • INQUIRY   EMAIL


Automatic calculating the cable length, coil making and cutting, Online and offline two types machine can be chosen if need . You can connect coiling machine to your cable production line successfully, to acheive online cutting winding.

Features:
1.added functions of automatically metering, cutting and winding function.
2. Equipped with four motors for winding cable
3. Use PLC computer programmed touch screen to control metering length, cable tie length, automatically cutting cable tie, cable tie twisted together.
4. Can set how many times of tying round the cable coil and winding speed arbitrarily.Low cost and high efficiency.

Model

SA-C06

Available Wire Size

1-10mm

Outer diameter of finished product

500MM

Cable inner coil diameter

non-standard (customizable )

Tying Dia

Not have tying function , use our other model is you need .

Power Supply

110/220VAC,50/60Hz

speed winding

Max.999 RMP/min ( can be set)

Power Supply

500W

Size

1200✘1000✘950
