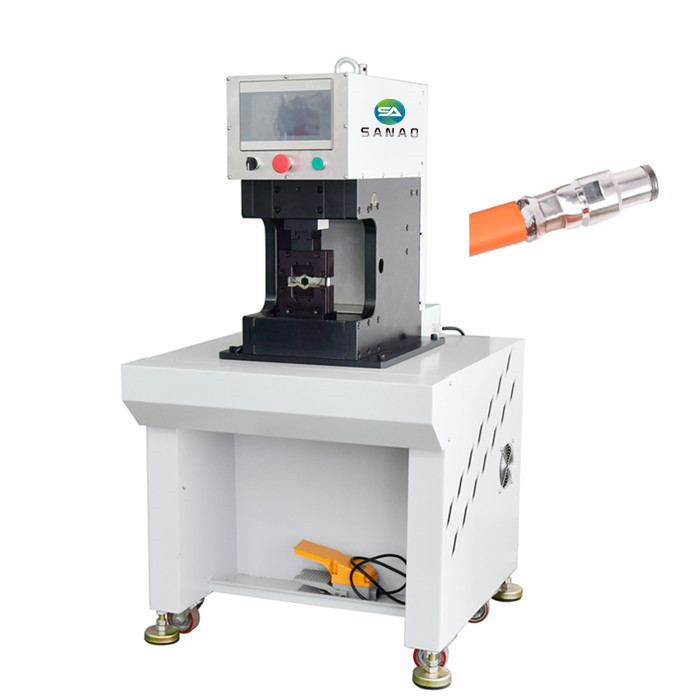

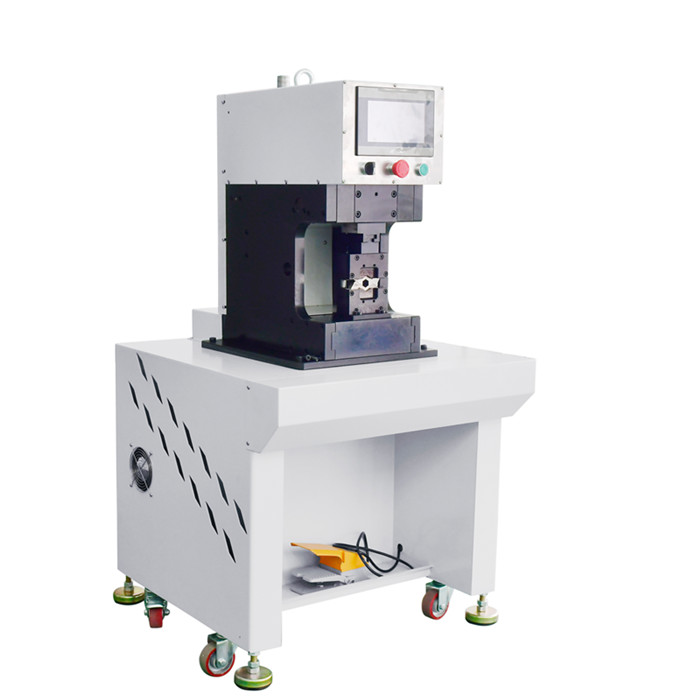

Servo motor hexagon lug crimping machine

  • Model:SA-30T
  • Description: SA-H30T,Max.300mm2 ,Machine's stroke is 35mm ,30T Servo motor Power cable lug terminal crimping machine. The working principle of the servo crimping machine is driven by ac servo motor and output force through high precision ball screw, Professional for large square tubular cable lugs crimping.
  • INQUIRY   EMAIL

SA-30T,30T Servo motor Power cable lug terminal crimping machine. The working principle of the servo crimping machine is driven by ac servo motor and output force through high precision ball screw, Professional for large square tubular cable lugs crimping. .Max.300mm2 ,Machine's stroke is 30mm , Just setting the crimping height for different size , Non change the crimping mold , Easy to operate . Support hexagonal, quadrilateral and M-shape crimping mold . Color touch screen operation interface , parameter setting is intuitive and easy to understand , crimping position can be directly setting on display . Machine can save program for different products, Next time ,directly choose the program directly to produce.

Advantage
1. Industrial grade control chip cooperates with the high precision servo drive to make the machine run stable
2. PLC control system can instantaneously change the crimping range for different terminals
3. No need to change the crimping applicator for different sizes terminals

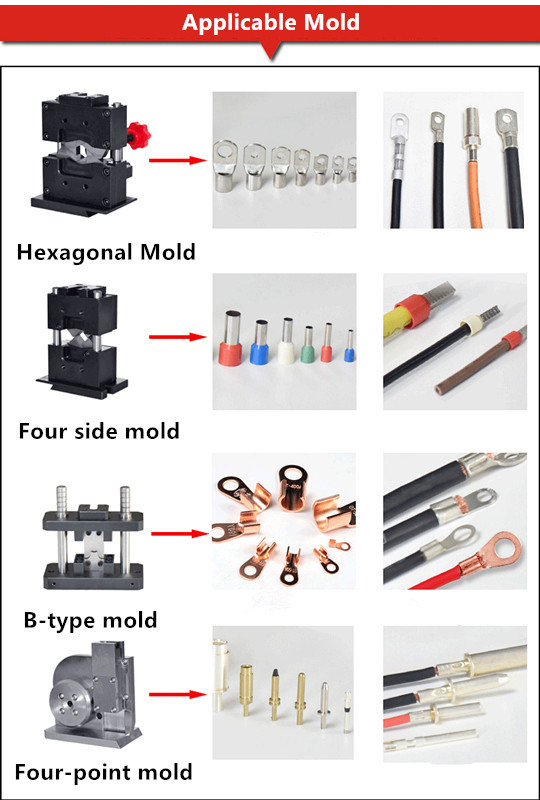

4. Support hexagonal, quadrilateral and M-shape crimping
5. The position can be adjusted for different square wire
6. Have desk type and floor standing type for your choice

Model

SA-30T

SA-50T

Crimping force

30T

50T

Stroke

35mm

35mm

Crimping range

2.5-300mm2

2.5-300mm2

Capacity

600-1200pcs/h

600-1200pcs/h

Operate mode

Touch screen,mould auto adjust

Touch screen,mould auto adjust

Start mode

Manual/Pedal

Manual/Pedal

Power rate

3800W

5500W

Power

220V

380V

Machine Dimension

750*720*1400mm

750*720*1400mm

Machine weight

340kgs

400kgs
