Semi automatic crimping machine

  • large tubular terminal Crimping Machine
  • large tubular terminal Crimping Machine
large tubular terminal Crimping Machinelarge tubular terminal Crimping Machine

large tubular terminal Crimping Machine

  • Model:SA-MH380

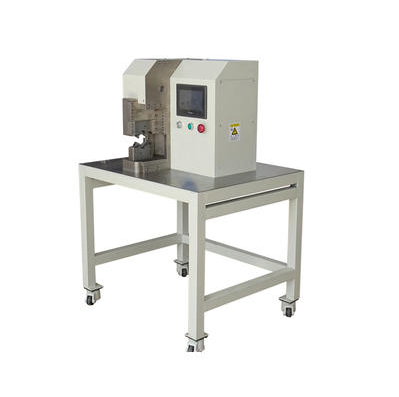

  • Description: This hexagon edge wire crimping machine is suitable for crimping of non-standardized terminals and compression type terminals with no need to change die set.
  • INQUIRY   EMAIL


This hexagon edge wire crimping machine is suitable for crimping of non-standardized terminals and compression type terminals with no need to change die set

Feature

1.This crimping machine is mainly designed for large tubular terminal , closed cold-pressed terminal

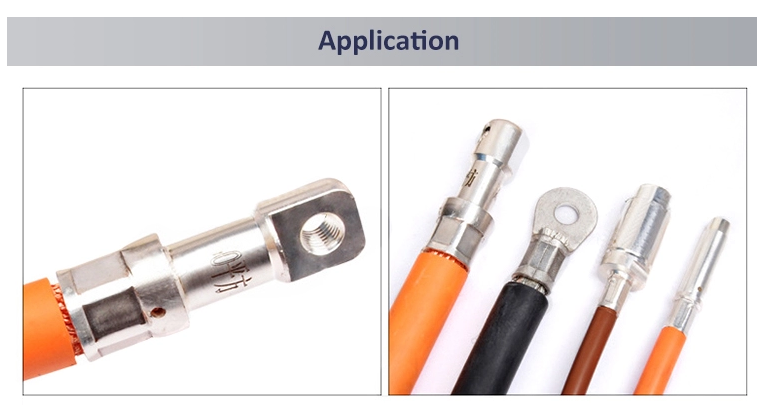

2 . Its widely used in new energy cable , charging cable and charging gun wire harness processing field
3.Industrial control chip with high precision servo drive make sure the machine running very stable
4.2.5-35mm2 closed tubular terminal crimping no need to change die set , crimping diameter can be adjusted in seconds

Model

SA-MH260

SA-MH320

SA-MH380

Conductor Cross-Section

2.5-35mm2

6-120mm²

6-120mm²

Feature

For small copper lug

For big copper lug

For elbow copper lug

Crimp Force

40KN

200KN

200KN

Terminal Diameter

Max 26mm

Max 32mm

Max 38mm

Crimp Width

Max 8mm

Max 12.5mm

Max 12.5mm

Power Supply

110/220VAC,50/60Hz

110/220VAC,50/60Hz

110/220VAC,50/60Hz

Power

1500W

2300W

2300W

Weight

80kg

120kg

160kg

Dimensions

56*37*30cm

50*45* 48cm

70*86*126cm

Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
