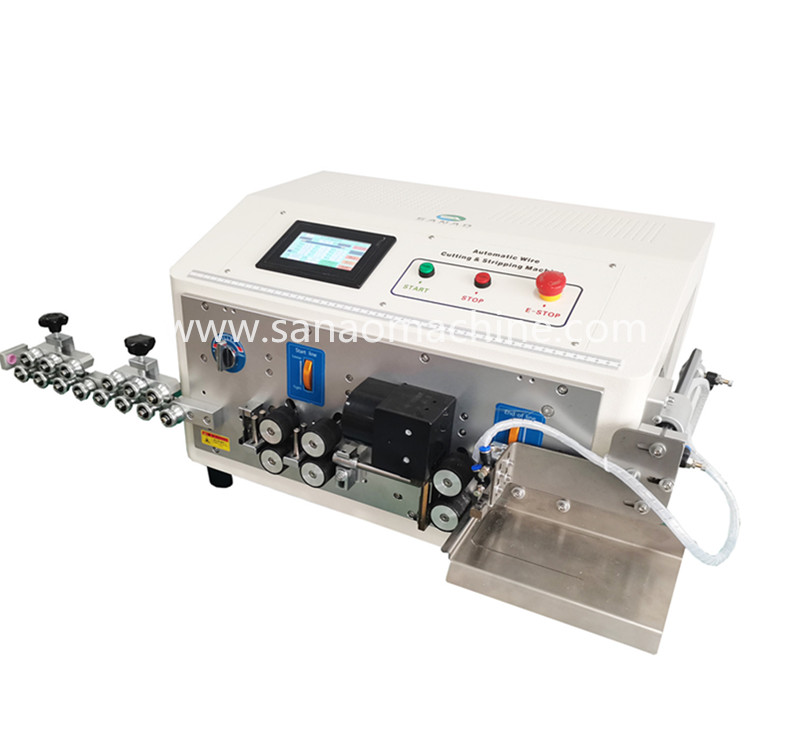

Multi core wire stripping machine

  • 1-10MM outer jacket stripping cutting machine for sheathed wire
  • 1-10MM outer jacket stripping cutting machine for sheathed wire
  • 1-10MM outer jacket stripping cutting machine for sheathed wire
1-10MM outer jacket stripping cutting machine for sheathed wire1-10MM outer jacket stripping cutting machine for sheathed wire1-10MM outer jacket stripping cutting machine for sheathed wire

1-10MM outer jacket stripping cutting machine for sheathed wire

  • Mode: SA-9060
  • Description: Processing wire range: Max.10mm ,SA-9060,outer jacket stripping cutting machine for sheathed wire, full automatic stripping and cutting outer jacketed of sheathed cable , This model can’t stripping inner core , Flat and round sheathed wire all can process .It’s Greatly Improved stripping speed and save labour cost.Need match 3F to stripping inner core.
  • INQUIRY   EMAIL

Processing wire range: Max.10mm ,full automatic stripping and cutting outer jacketed of sheathed cable , This model can’t stripping inner core , Flat and round sheathed wire all can process .It’s Greatly Improved stripping speed and save labour cost. Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy.

Introduction:

1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

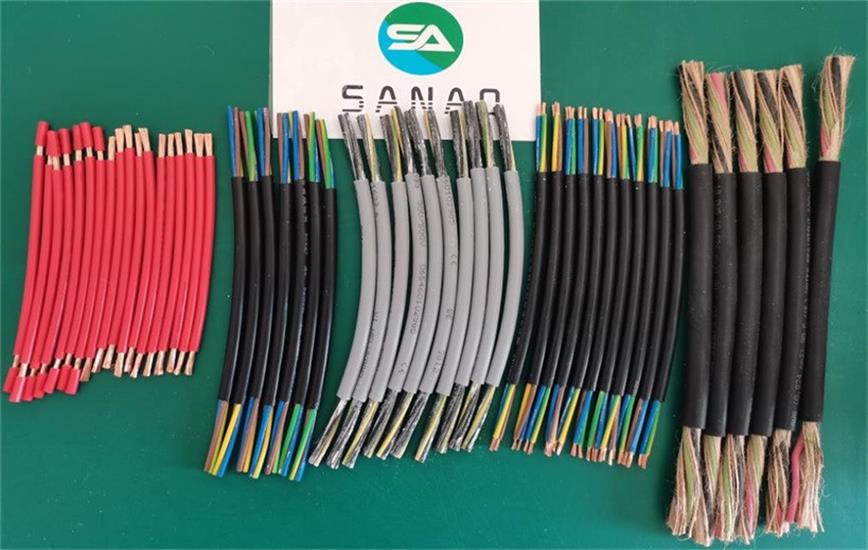

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and        low maintenance,

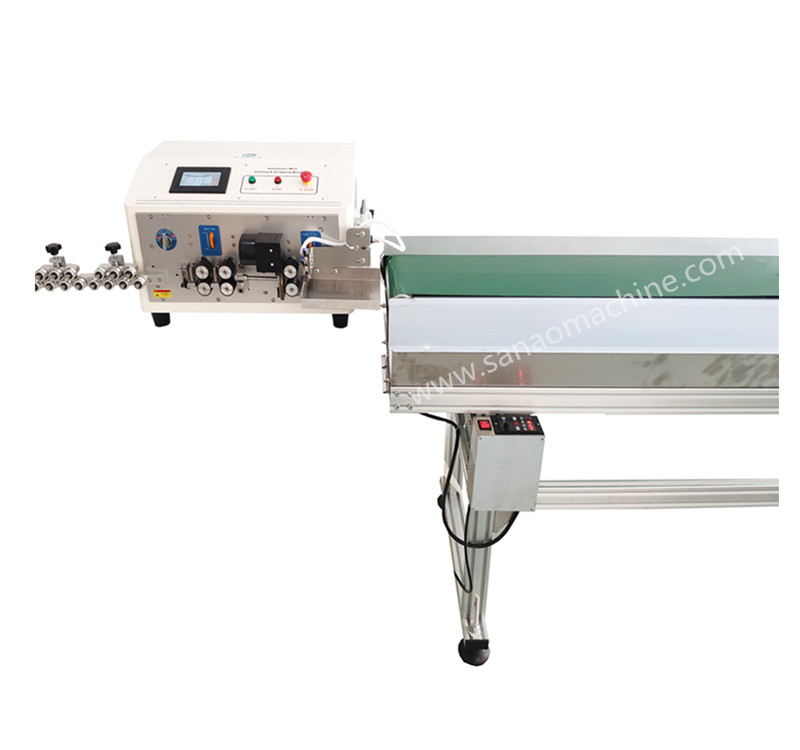

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.



Model

SA-9060

Function

Wire cutting, double-end stripping

Wire diameter

1-10mm2

Cutting length

0.1mm-99999.9mm

Stripping length

Stripping head:0.1-250mm     Stripping tail: 0.1-70mm

Stripping accuracy

Silent hybrid stepper motor 0.01mm

Intermediate strip

Can be customized

Capacity

1000-2000 / h

Blade material

Imported tungsten steel / high speed steel

Power

AC110V/220V  50/60HZ

Body size

565mm*385mm*370mm

Body weight

43kg

Remark function

Automatic entry / exit, timing start, jog adjustment
