Electric wire stripping machine

  • 0.1-2.5mm2 High speed four wire stripping cutting machine
  • 0.1-2.5mm2 High speed four wire stripping cutting machine
  • 0.1-2.5mm2 High speed four wire stripping cutting machine
0.1-2.5mm2 High speed four wire stripping cutting machine 0.1-2.5mm2 High speed four wire stripping cutting machine 0.1-2.5mm2 High speed four wire stripping cutting machine

0.1-2.5mm2 High speed four wire stripping cutting machine

  • Model :SA-208DB4
  • Description: Processing wire range: 0.1-2.5mm², SA-208DB4,High speed four wire stripping cutting machine,Full automatic stripping and cutting double end at one time ,Widely used in wire harness. It’s Greatly Improved stripping speed and save labor cost.
  • INQUIRY   EMAIL

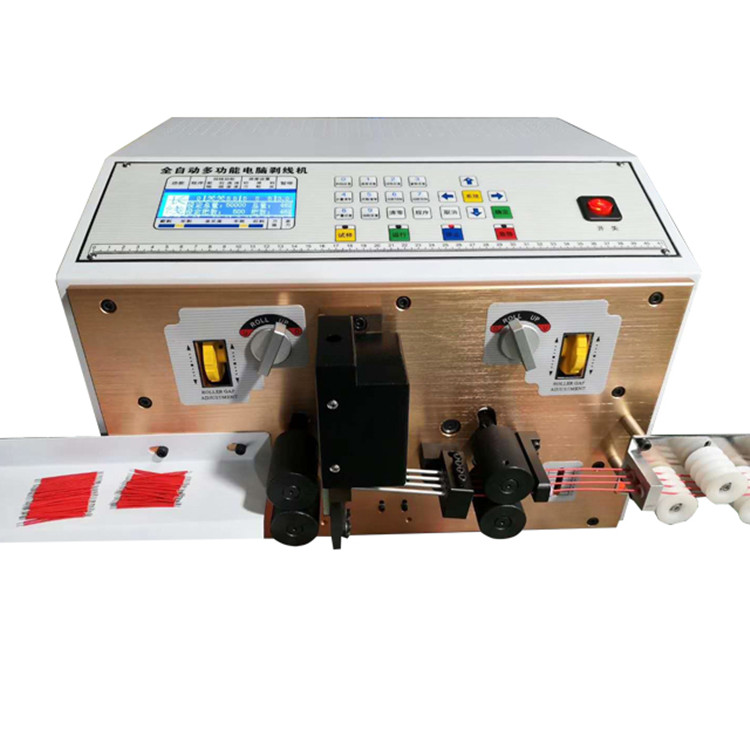

cable cutting and stripping machine for small cable

Stripping wire range: 0.1-2..5mm²,Full automatic cut length and stripping both end,Widely used in wire harness processing industry for automotive electrical appliances, instrumentation,lamps, household appliances, It’s Greatly Improved stripping speed and save labour cost

Introduction:

1. It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.

Model

SA-208DB4

Stripping length

head 0.1-35mm, tail: 0.1-60mm

Cutting length

0.1-9,999mm

Cutting accuracy

0.002*Lmm

Stripping speed

5,000-6,000pcs

Dimensions

450*720*360

Applicable wires

AWG#12-AWG32 (0.1-2.5mm2)

Power supply

AC110V/220V, 180W

Weight

39KG







Inquiry:
