Electric wire stripping machine

  • 0.1-4.5 mm² wire stripping cutting and twisting machine SA-208NX2
  • 0.1-4.5 mm² wire stripping cutting and twisting machine SA-208NX2
  • 0.1-4.5 mm² wire stripping cutting and twisting machine SA-208NX2
0.1-4.5 mm² wire stripping cutting and twisting machine SA-208NX20.1-4.5 mm² wire stripping cutting and twisting machine SA-208NX20.1-4.5 mm² wire stripping cutting and twisting machine SA-208NX2

0.1-4.5 mm² wire stripping cutting and twisting machine SA-208NX2

  • Model : SA-208NX2
  • Description: Processing wire range: 0.1-4.5 mm²,SA-208NX2,wire stripping cutting and twisting machine,Full automatic cut length and stripping twisting both end,Widely used in wire harness processing industry for automotive electrical appliances,It’s Greatly Improved stripping speed and save labour cost
  • INQUIRY   EMAIL

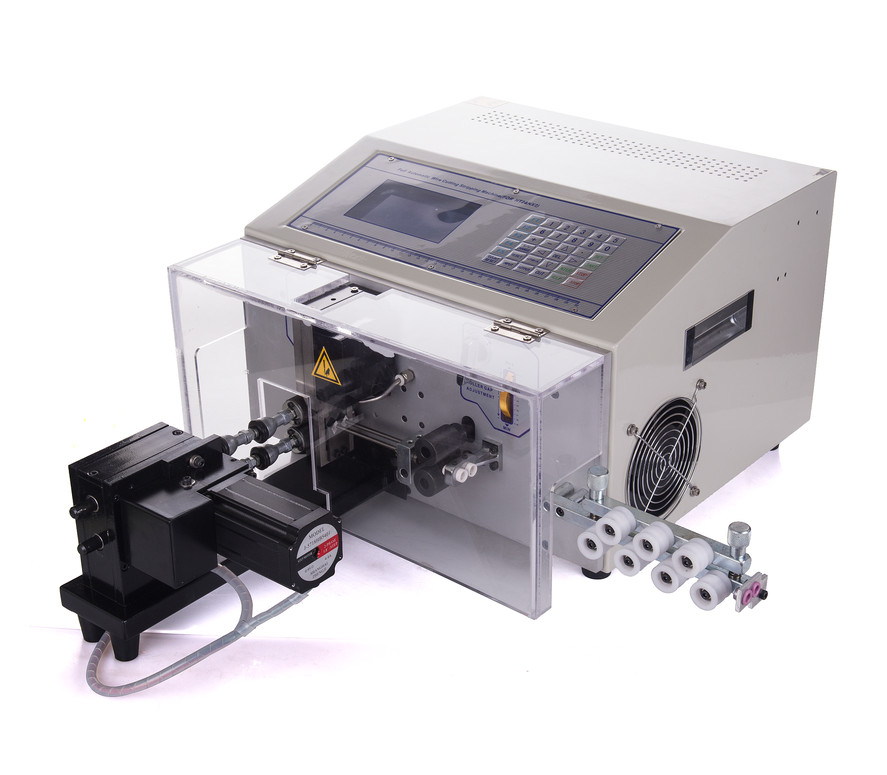

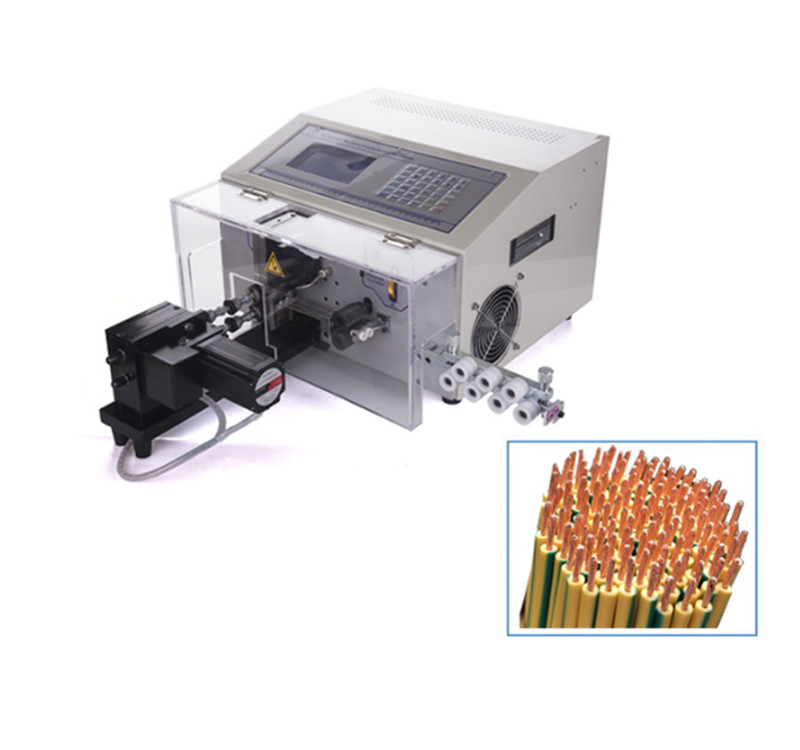

Wire stripping and twisting machine

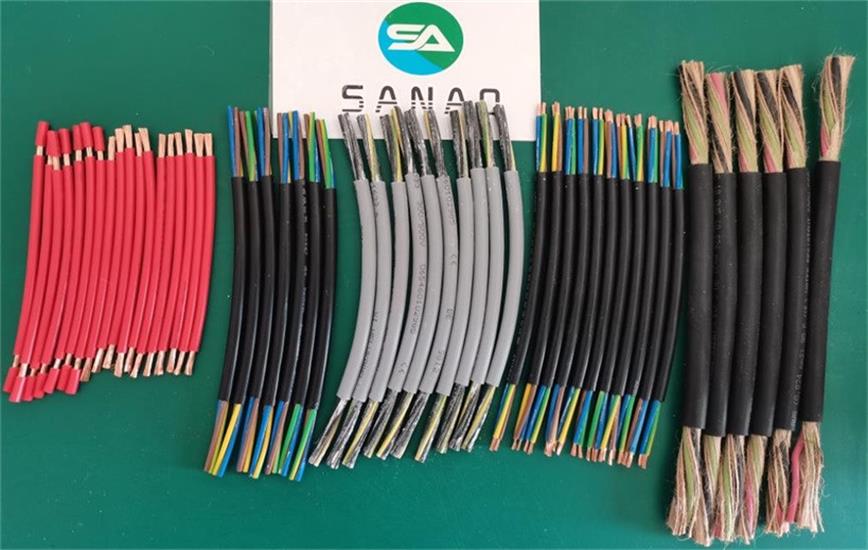

Processing wire range: 0.1-4.5 mm²,Full automatic cut length and stripping twisting both end,Widely used in wire harness processing industry for automotive electrical appliances, instrumentation,lamps, household appliances etc,It’s Greatly Improved stripping speed and save labour cost

Introduction:

1. It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.

Model

SA-208NX2

Features

Process one or two wire at one time

Conductor Cross-Section

Single wire 0.1-4.5mm²; Double wire 0.1-2.5mm²

Cutting Length

0.1–100000mm

Cutting Length Tolerances

±(0.0001*L)mm

Stripping Length

Head 0-35mm, Tail 0-20mm

Intermediate Stripping

Max 16 sections

Conduit Diameter

Φ6mm

Production Rate

L=100mm, 4000-10000pcs/h

Display Screen

Chinese / English LCD Screen

Drive Method

4 wheels drive

Power

450W

Power Supply

110/220VAC, 50/60Hz

Weight

34kg

Dimensions

53*53*40cm
