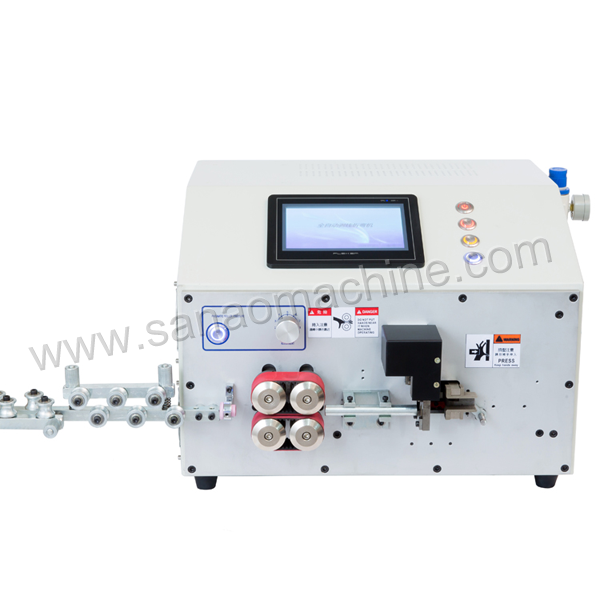

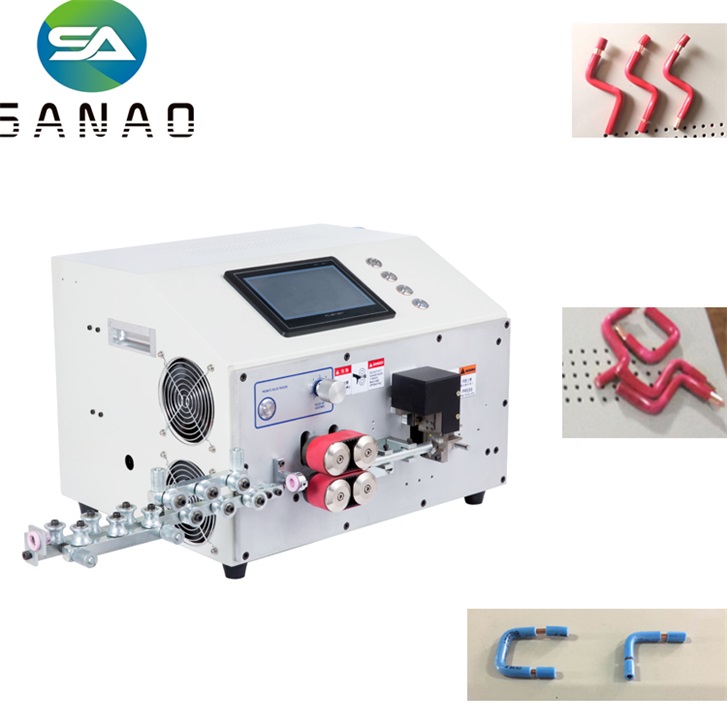

Automatic Stripper Bending Cutting Machine

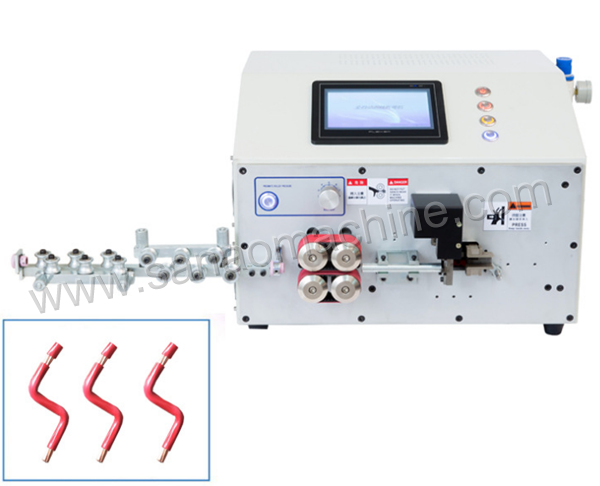

Processing wire range: Max.25mm2,automatic wire stripping, cutting and bending for different shape ,Clockwise and counterclockwise, adjustable bending degree, 30degrees, 45 degree, 60 degrees, 90 degrees. positive and negative two bending in one line.
Introduction:
1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.
2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Very Easy to operate with touch English display , stable quality with 1 year warranty and low maintenance.
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
|
Model |
SA-ZW6 |
SA-ZW16 |
SA-ZW25 |
SA-ZW35 |
|
Conductor Cross-Section |
1-6mm² |
1-16mm² |
2-25mm² |
2-35mm² |
|
Stripping Length |
0.1-20mm |
0.1-20mm |
Head :0-30MM Tail : 0-20MM |
0.1-100mm |
|
Cutting Length |
1-100mm |
1-100mm |
1-5000mm |
1-5000mm |
|
Cutting Length Tolerances |
≤ (0.001xL)mm |
|||
|
Bending Length |
Can be set |
|||
|
Bend Shape/Angle |
Shape U,Z,clockwise,counterclockwise bend, 30°,45°,60° and 90°. |
|||
|
Production Rate |
L=100mm， 2000-3000pcs/h |
|||
|
Power Supply |
110/220VAC, 50/60Hz |
|||
|
Power |
600W |
|||
|
Conduit Diameter |
Generally Φ10mm，can custom according to wire size |
|||
|
Display Screen |
Chinese / English LCD Screen |
Chinese / English LCD Screen |
Chinese / English touch screen |
Chinese / English touch screen |
