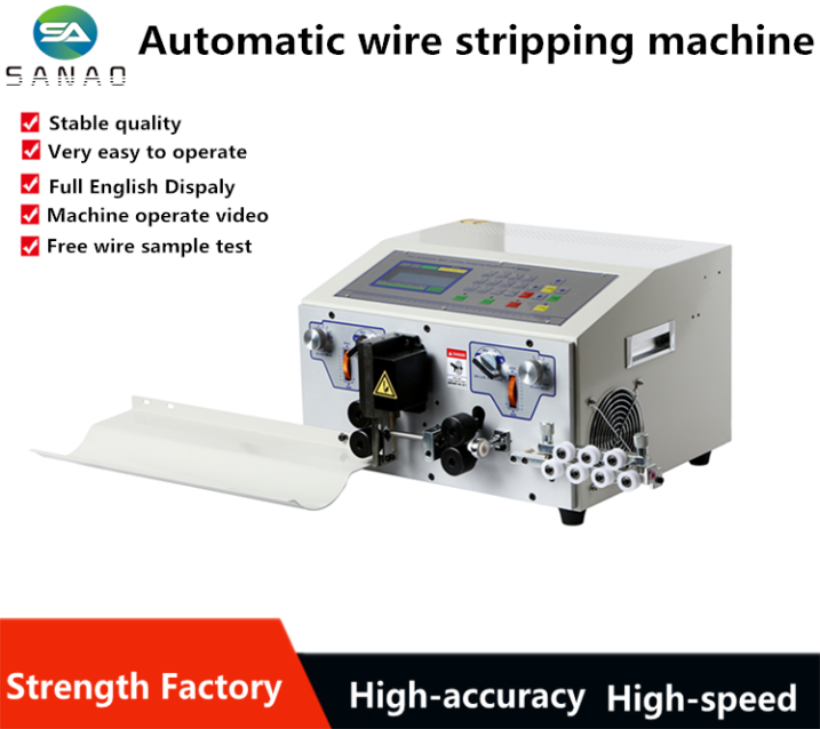

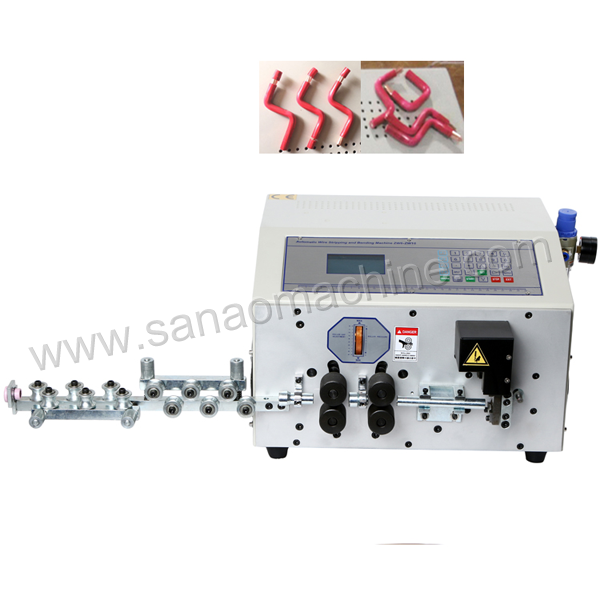

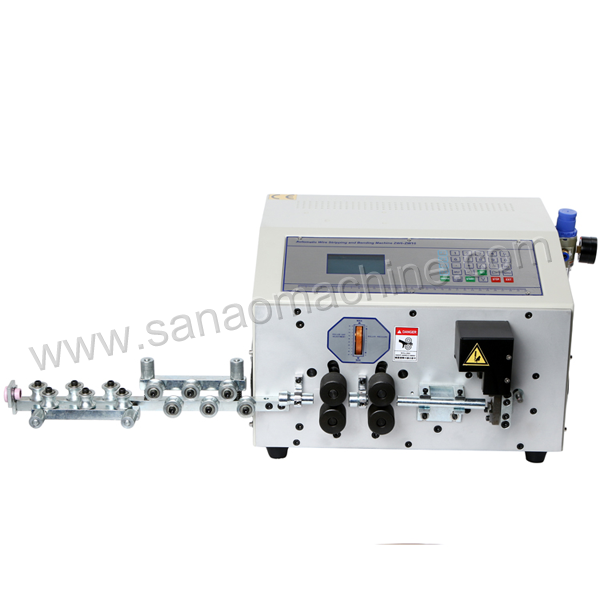

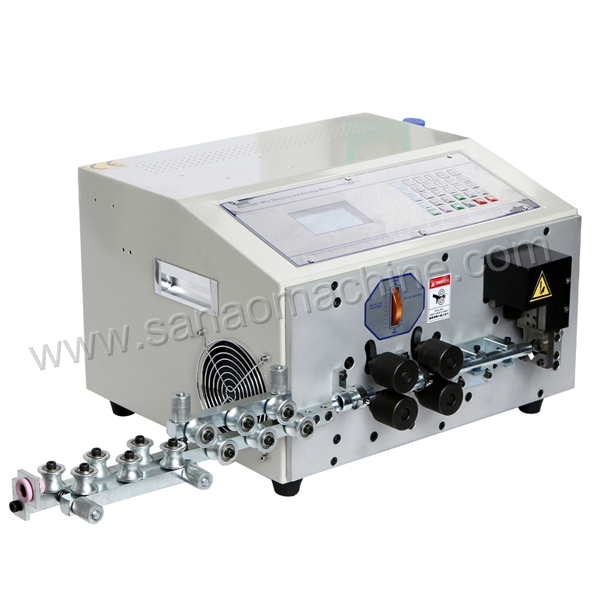

Automatic cable cutting bending machine
Processing wire range: Max.16mm2,Full automatic wire stripping, cutting and bending for different angle ,Clockwise and counterclockwise, adjustable bending degree, 30degrees, 45 degree, 60 degrees, 90 degrees. positive and negative two bending in one line.
Introduction
1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.
2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
Model
SA-ZW6
SA-ZW16
SA-ZW25
SA-ZW35
Conductor Cross-Section
1-6mm²
1-16mm²
2-25mm²
2-35mm²
Stripping Length
0.1-20mm
0.1-20mm
Head : 0.1-30mm tail : 0.1-20mm
0.1-100mm
Cutting Length
1-100mm
1-100mm
1-5000mm
1-5000mm
Cutting Length Tolerances
≤ (0.001xL)mm
Bending Length
Can be set

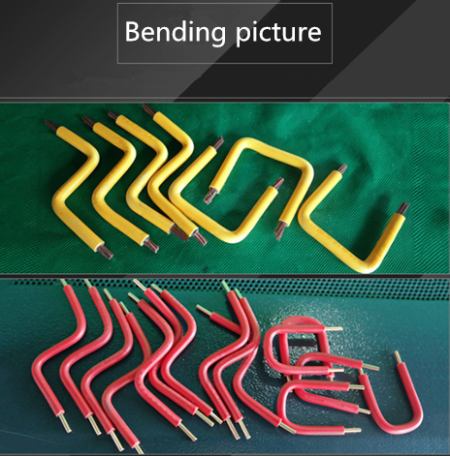

Bend Shape/Angle
Shape U,Z,clockwise,counterclockwise bend, 30°,45°,60°
and 90°.
Production Rate
L=100mm， 2000-3000pcs/h
Power Supply
110/220VAC, 50/60Hz
Power
600W
Conduit Diameter
Generally Φ10mm，can custom according to wire size
Display Screen
Chinese / English LCD Screen
Chinese / English LCD Screen
Chinese / English touch screen
Chinese / English touch screen
