  • SA-SVF100
  • Description: SA-SVF100 This is a fully automatic Servo double end crimping machine, standard machine for AWG30#~14# wire , standard machine with a stroke of 30mm OTP high precision applicator .
  • INQUIRY   EMAIL

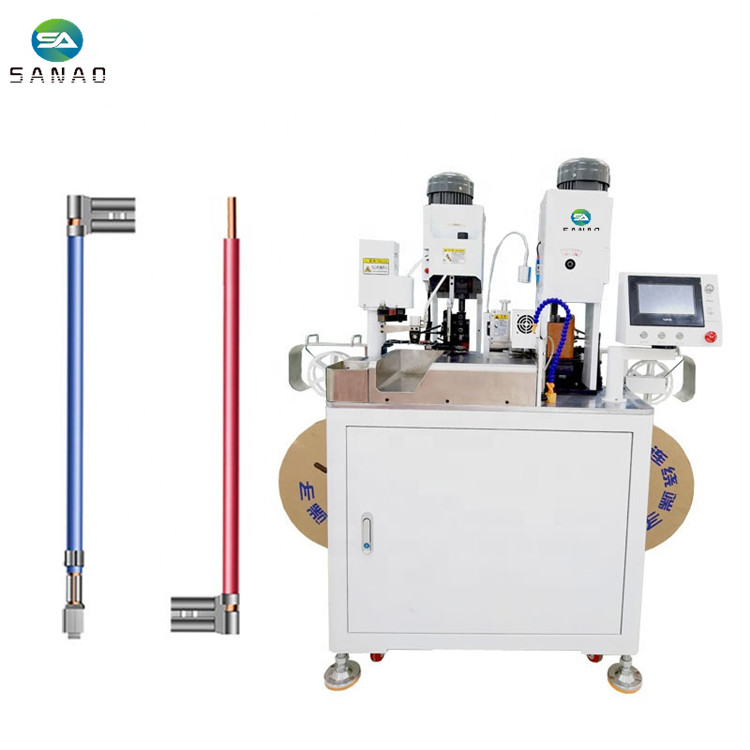

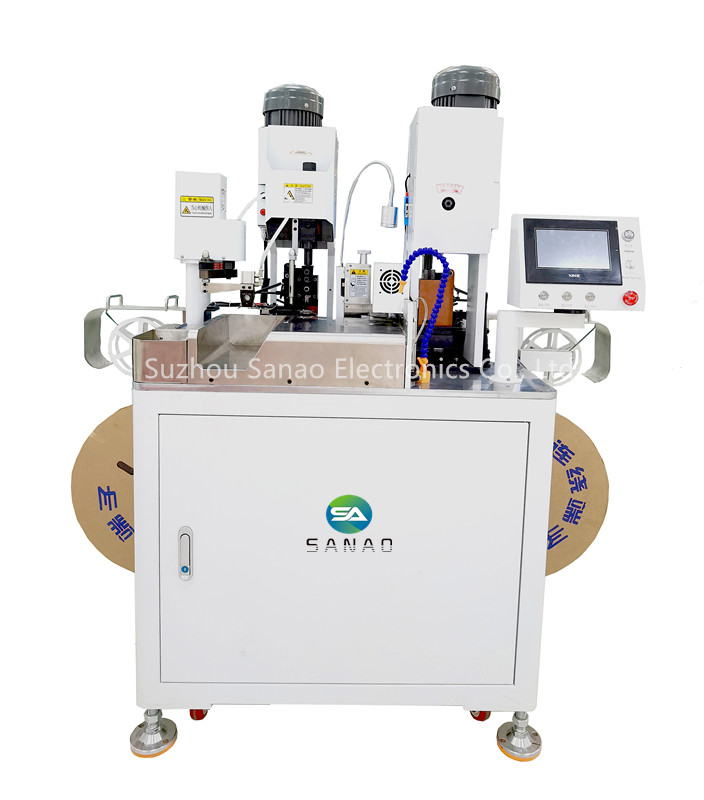

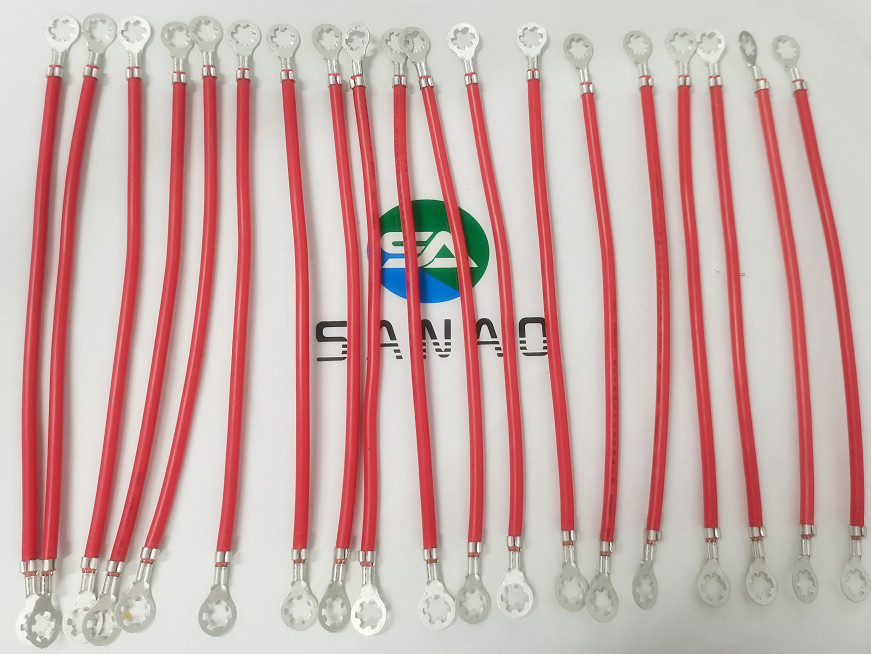

SA-SVF100 This is a fully automatic Servo double end crimping machine, standard machine for AWG30#~14# wire , standard machine with a stroke of 30mm OTP high precision applicator , compared with ordinary Applicator, high precision applicator feed and crimp more stable,  Different terminals only need to replace the applicator, This is easy to operate and multi-purpose machine.

The machine uses 5 sets of servo motors, 2 sets of stepper motors, 4 sets of TBI screws, 7 sets of HIWIN guide rails and Swedish SKF bearings, which is a high quality servo terminal crimping machine.The workmanship of the whole machine is precise, and the moving parts such as wire feeding, cutting, and translation are all driven by high-precision servo motors, with strong power and precise dimensions .

The stroke of the machine can be custom made to 40MM, suitable for European style applicator, JST applicator, our company can also provide customers with high quality European style applicators and so on. Please contact us for more information.

Pressure detection is an optional item, real-time monitoring of each crimping process pressure curve changes, if the pressure is not normal, it will automatically alarm and stop, strict control of production line production quality. When processing long wires, you can choose a conveyor belt, and put the processed wires straight and neatly into the receiving tray.

Colour touch screen operation interface, parameter setting is intuitive and easy to understand. The machine has a programme saving function, which is convenient to use directly next time without setting the machine again, simplifying the operation process.

Advantage
1: Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour touch screen make it easy to operate. All parameters can be directly set on our machine
3: The machine has a programme saving function,simplifying the operation process.
4 .4 wheel feeding motor is adopted to avoid wire different length feeding and hurt.
5: The crimping position adopts mute terminal machine, with low noise and uniform force. It can be equipped with horizontal applicator, vertical applicator and flag applicator.

Model

SA-SVF100

Function

Fully automatic Servo double end crimping machine

Applicable wire range

AWG30#~14# (  )

Stripping length

0.5mm~35mm (more than 12mm need half peeling)

Cut precision

≥1m, ±0.02% or less

Cutting length

26mm~9999mm

Capacity

Within 300MM, 4000-4800PCS/H

Crimping force

2.0T ( 3.0T 4.0T available as an option)

Applicators

Standard is 30mm OTP Applicator   ( 40mm strokes Europe applicator for optional )

Air pressure

0.4-0.6Mpa

Detection Device

Lack wire detection, Lack terminal detection, Crimp detection, Pressure detection

Motor

5 sets of servo motors +2 sets of stepper motors

Screwdriver

4 sets of TBI screws

Guide rails

HIWIN guide rails

Guide rails

Swedish SKF bearings

Dimension

650*700*1650mm

Weight

300Kg

Power supply

220V/110V/50HZ/60HZ
