Automatic strip cutting machine

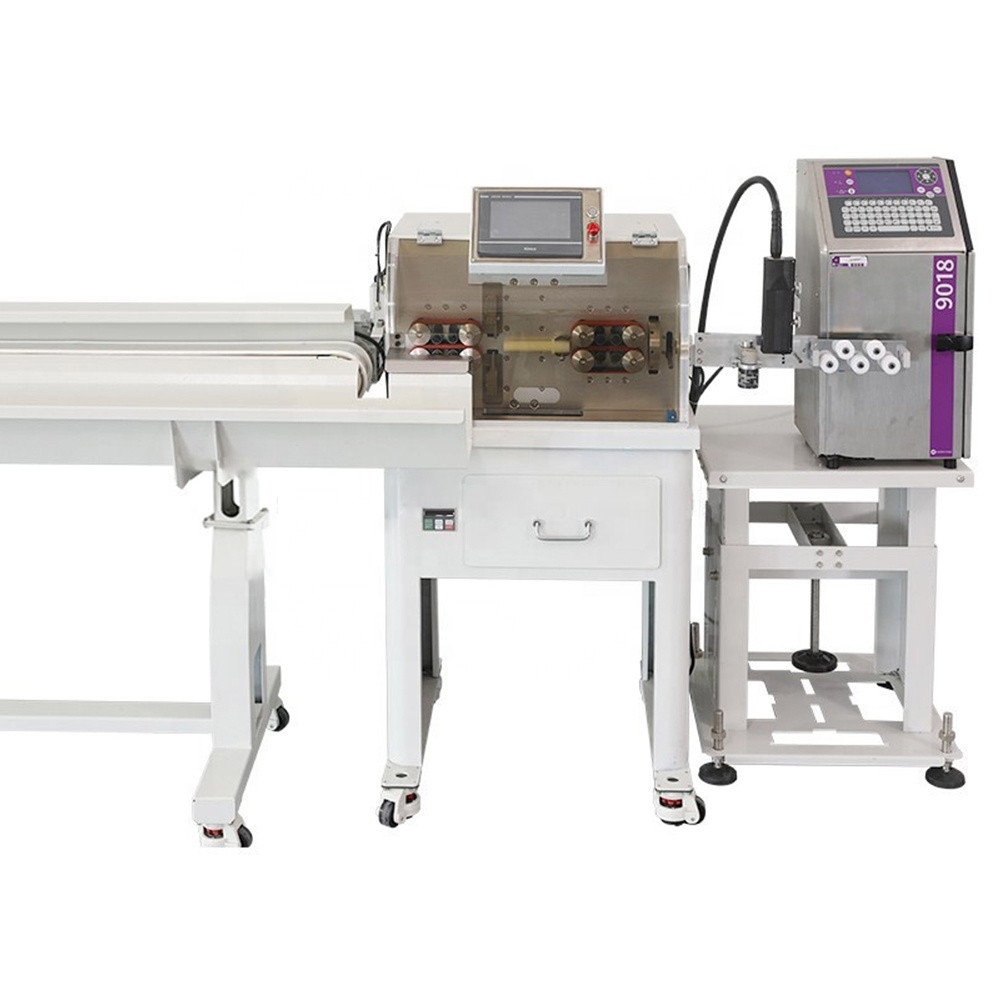

Automatic Wire Stripping and Inkjet Marking Machine

Automatic Wire Stripping and Inkjet Marking Machine

SA-H03
Description: Processing wire range: 1-30mm2 ,full automatic stripping and cutting machine for large cable, or stripping outer jacketed of sheathed cable(Max. 7 core) ,It’s Greatly Improved stripping speed and save labor cost.
INQUIRY EMAIL

Full automatic Large single cable stripping cutting machine.

Processing wire range:4-30mm²,full automatic stripping and cutting machine for large cable, or stripping outer jacketed of sheathed cable(Max. 7 core) ,It’s Greatly Improved stripping speed and save labor cost. Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy.

Introduction

1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

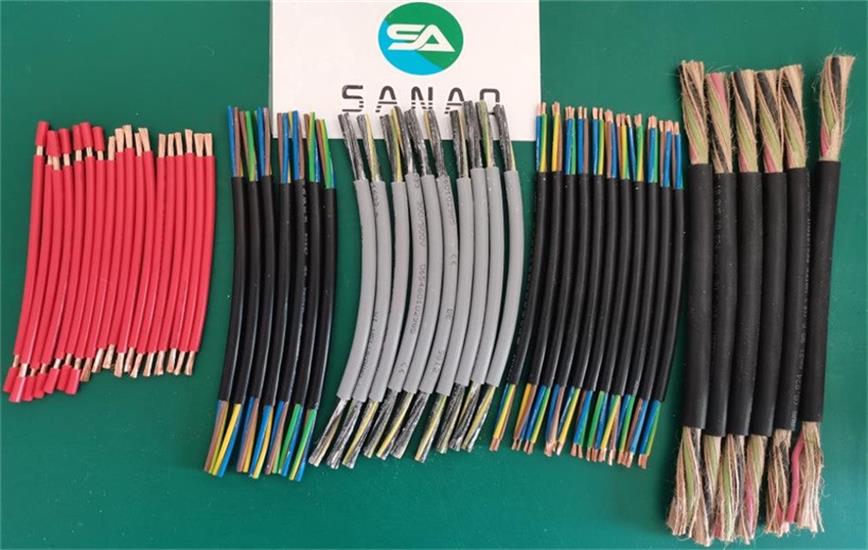

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine, wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy, It’s can Greatly Improved stripping speed and save labor cost.

Model	SA-H03	SA-H07
Conductor Cross-Section	6-30mm² （1-7 cores ）	10-70mm² ; 1-5 cores
Cutting Length	1-99999mm	200-99999mm
Cutting Length Tolerances	≤(0.002*L) mm	≤(0.002*L) mm
Jacket Stripping Length	Head 10-120mm; Tail 10-240mm	Head 30-200mm; Tail 30-150mm
Inner Core Stripping Length	Head 1-120mm; Tail 1-240mm	Head 1-30mm; Tail 1-30mm
Conduit Diameter	Φ16mm	Φ25mm
Production Rate	Single wire :2300pcs/h Sheath wire :800pcs/h (base on wire and cutting length)	Sheath wire 800pcs/h (base on wire and cutting length)
Display Screen	7 inch touch screen	7 inch touch screen
Drive Method	16 wheels drive	32 wheels drive
Wire Feed Method	Belt feeding wire, no indentation on cable	Belt feeding wire, no indentation on cable

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
