Automatic stripping crimping machine

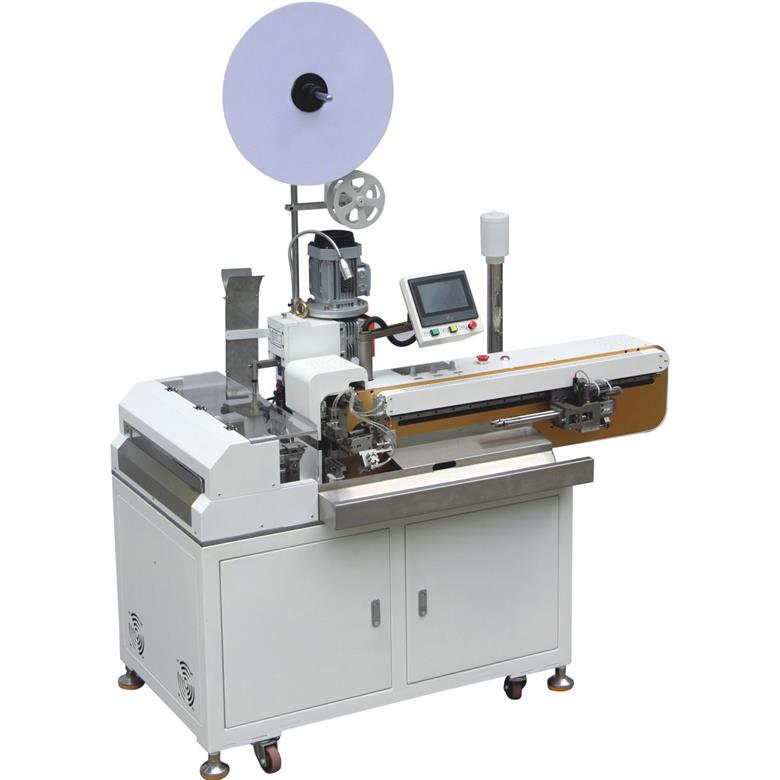

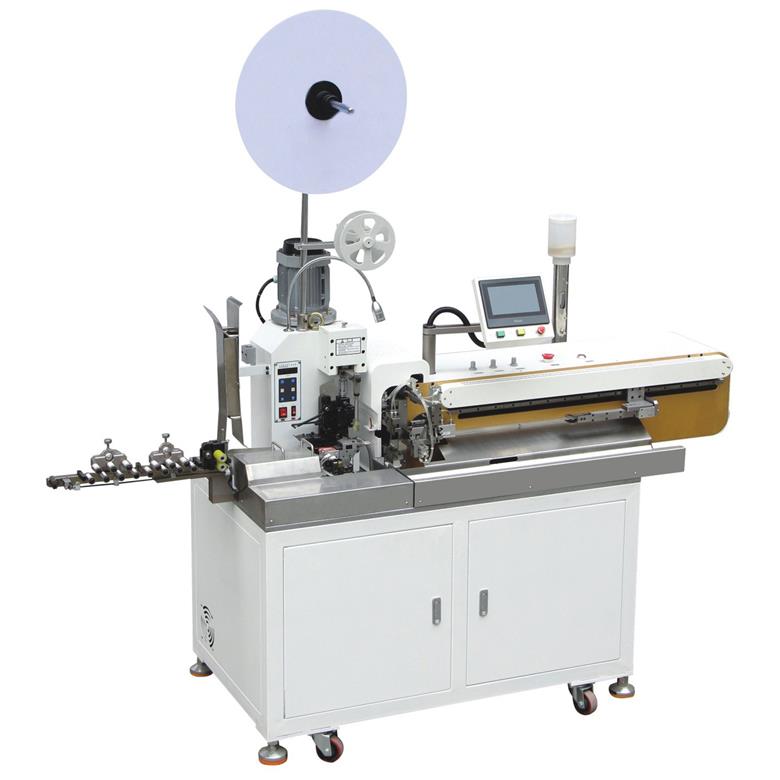

Full automatic 5 Wire cutting and striping twisting tinning terminal crimping machine

Full automatic 5 Wire cutting and striping twisting tinning terminal crimping machine

SA-DT850
Description: Model : SA-DT850,Full automatic 5 Wire cutting and striping twisting tinning terminal crimping machine, it uses stuck-type applicator, and it is easy and convenient to disassemble , Different terminal different crimping applicator,Process 5 wires at same time ，High productivity achieve 6600 pcs per hour,It’s Greatly Improved stripping speed and save labor cost.
INQUIRY EMAIL

Full automatic 5 Wire cutting and striping twisting tinning terminal crimping machine, it uses stuck-type applicator, and it is easy and convenient to disassemble , Different terminal different crimping applicator,Process 5 wires at same time ，High productivity achieve 6600 pcs per hour,It’s Greatly Improved stripping speed and save labor cost.

1.Not need replace the back end stripping clamp change Long / short cutting, realizing second change, which is the first in China 2. The motor type twisted wire is realized, There are two kindly of twisting type , like positive and negative. You can directly setting twisting speed on machine ;

3. The cutting blades holder is Mitsubishi servo with precision screw rod double guide, front and rear stripping screw double guide and Japanese three servo motor;

4. Full color English touch display with full digital operation. It's very easy to operate

5. Two kinds of terminal material cutting ，It can be equipped with horizontal Applicator, vertical applicator and flag applicator

6. The machine accessories are made of anticorrosive materials, which are free from corrosion; Low noise, high precision, longer service life

Model	SA-DT850
Name	Full automatic 5 Wire cutting and striping twisting tinning terminal crimping machine
Conductor Cross-section	AWG32 - AWG16
Stripping Length	0.1-11mm at both sides
Twisting Length	2-10.5mm
Tinning Length	0.5-10.5mm
Wire crimping length	1.5-10mm
Cutting Length	Max 850mm (other sizes are customizable)
Crimp force	standard 2.0T(customized available)
Production Rate	6600pcs/hr
Power Supply	A/C 220V, 50/60HZ (110V on request)
Compressed Air Supply	0.5-0.7MPa (Clean and dry air)
Weight	500KG
Dimensions (L x W x H)	2200 x 750 x 2100mm

Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
