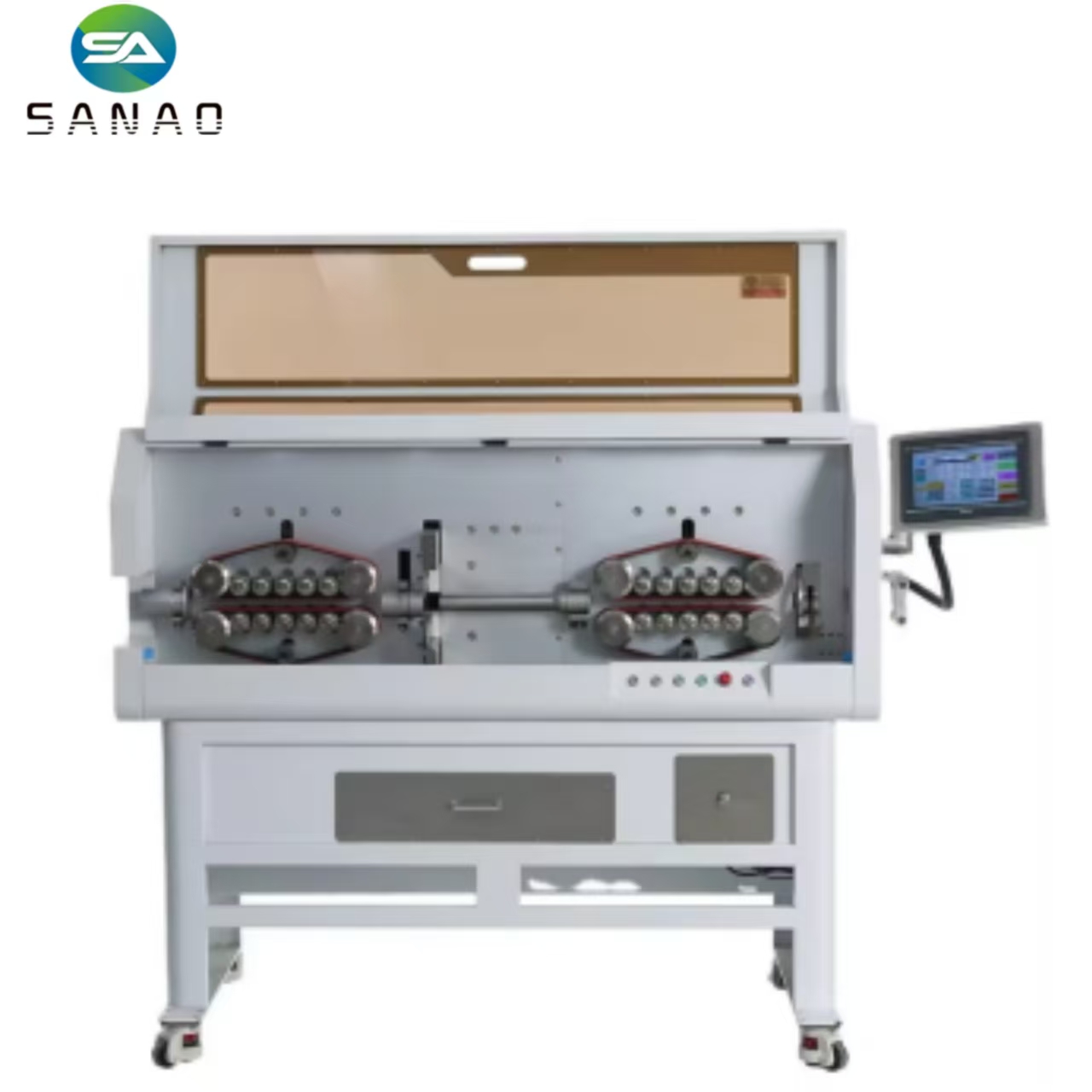

SA-HS300 is automatic cutting and stripping machine for cable , compared with the traditional wire stripping machine, this machine adopts the double knife co-operation, 2 separate blade for cutting and stripping with enhanced servo motor ,32 wheels are driven at the same time, using servo motor to ensure more efficient and faster operation! Increase the power by 2 times on the basis of the original cable stripping machine.
The maximum line can be cut and stripped to 300 square meters.10-inch colour English touch screen, easy to understand the operation, 99 kinds of procedures, further simplify the production process, different processing products, only one time to set up, the next time directly click on the corresponding procedures to improve production speed.
The conduit jumps, compared with the traditional machine, the outer skin of the stripping length is longer, the standard stripping length of the tail 300mm, 1000mm head stripping length, if there is a special long stripping requirements or in the stripping requirements, we can add additional long stripping function.

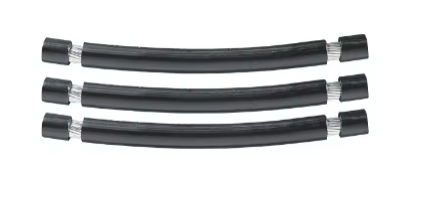

1.automatically cable cutting and stripping different wires size,stripping single wire and outer jacket of sheathed cable .
2.Drive mode: 32-wheel drive ,silent hybrid stepper motor, servo tool holder.
5.Belt feeding wires, no embossing and scratches
6.Head stripping: Head 30-1000mm; Tail 10-300mm
Model
SA-HS300
Conductor cross-section
10 - 300 mm2
Cutting length
1 - 99999.9 mm
Cutting length tolerance
< 0.002 * L (L = cutting length)
Stripping length (Head )
10-1000mm
Stripping length (Tail)
10-300mm
