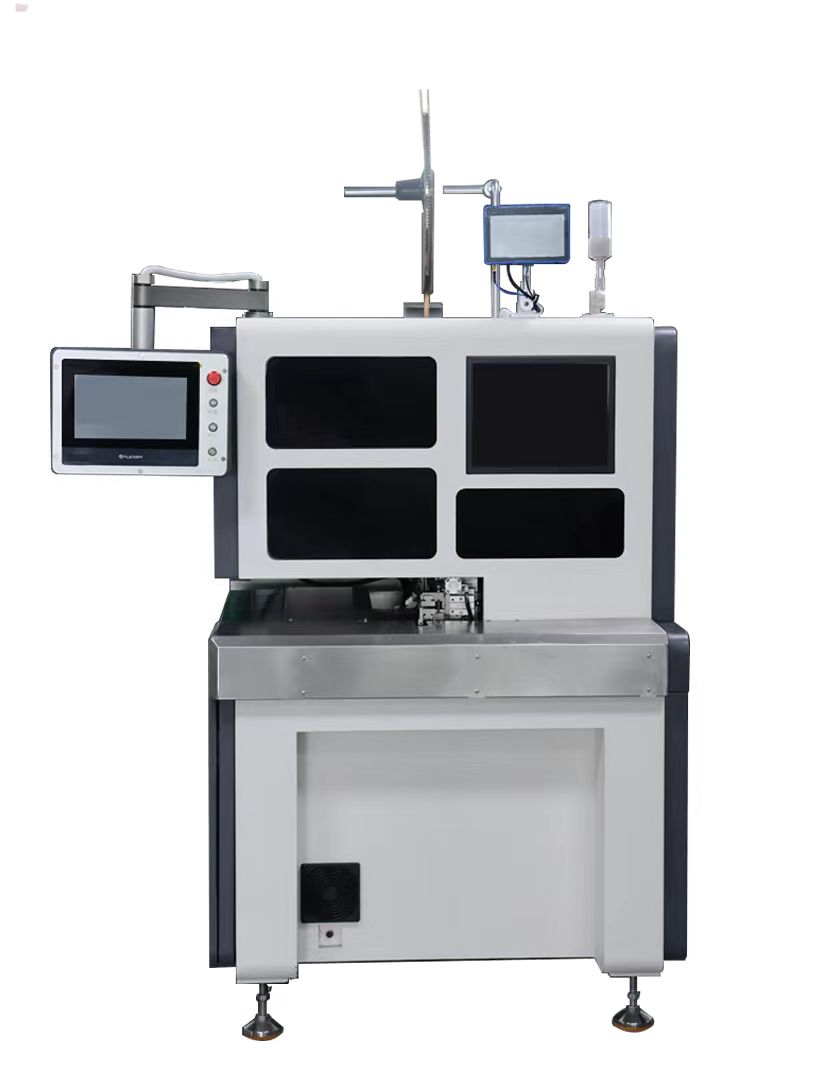

Multi-core Cable Stripping Crimping Housing Insertion Machine

This is a semi-automatic multi-core sheath cable stripping crimping terminal and housing insertion machine. Machine Stripping crimping terminal and insert house at one time , and the housing is automatically fed through the vibrating plate.Significantly increased the rate of output.CCD vision and pressure detection system can be added to identify defective products.

One machine can easily process a variety of different products. Just replace the terminal applicator and vibrating plate feeding system for crimping different products , It can be used for multiple purposes and reduce the cost of production inputs.

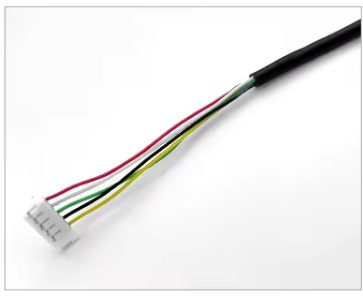

Regarding the operation of the machine, the employee only needs to manually put the sheathed wires into the clamping fixture according to the colour sequence, and the machine will automatically complete the stripping, termination and insertion of the housing, which greatly provides the production speed and saves the cost.

Color touch screen operation interface , parameter setting is intuitive and easy to understand , parameters such as stripping length and crimping position can be directly setting one display . Machine can save program for different products, Next time ,directly choose the program directly to produce. Save the machine adjust time .
1、Sheath cable cut flush, peeling, terminal strip continuous crimping processing.
2、Displacement ,stripping and cutting using servo motor drive, screw drive to improve accuracy, used to ensure high quality product requirements.
3、High precision applicator, the applicator adopts a bayonet design to support quick replacement.Just change the applicator for different terminal.
4、Multiple wires are automatically cut and aligned, stripped, riveted and pressed, and automatically picked up.
5.Wire stripping length, cutting depth, crimping position can be set directly on the touch screen, easy to adjust the parameters.
